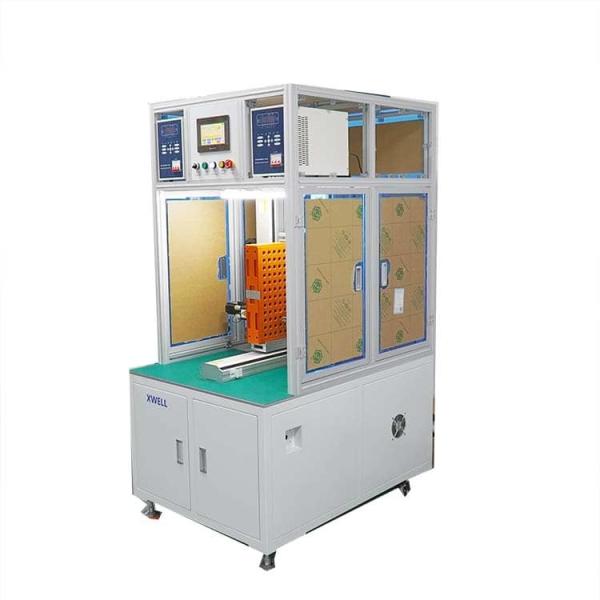

    Efficiency Lithium Battery Pack Welder Battery Automatic Double Side Spot Welding Machine

    Ask Lasest Price
    Brand Name : XWELL
    Model Number : MD-ADW
    Certification : CE
    Price : USD 6000 - 9000 / pcs
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 100pcs per month
    Delivery Time : 10-15 days
    • Product Details
    • Company Profile

    Efficiency Lithium Battery Pack Welder Battery Automatic Double Side Spot Welding Machine

    Xwell Lithium Battery Pack Welder Battery Automatic Double Side Spot Welding Machine


    Product features:

    1. Inverter DC welding power supply is adopted, which has stable performance, fast welding speed and constant current working mode, so as to eliminate the unstable factors of welding current for a long time.

    2. It has its own welding current monitoring system, which can monitor the welding current in real time.

    3. The spot welding power supply has the function of false welding alarm, which can directly communicate with the motion controller, record the false welding position, and predict and remind the replacement of welding needle.

    4. The welding efficiency is about 4 times that of labor, with high stability, labor saving, time saving and cost saving.


    Application area:
    With the corresponding fixture, machine can weld 18650, 26650, 32650 and other cylindrical batteries, can also be customized for a variety of cylindrical battery, square battery, button battery and etc.
    Operation:
    * Setting the parameters of welding on the touch screen. (The same product only need to be set once)
    * Put the fixture with the battery pack on the quick clamping position.
    * Press the start button, machine automatically complete all welding actions.
    * machine sound to prompt operator replacement of new fixture (battery pack).




    Battery Spot Welding Machine Specification


    Model No.MD-ASW
    Y-axis travel500mm (customizable)
    X-axis travel350mm (customizable)
    Max spot welding speed0.35s/point (1 hour:about 2800 units18650 cells)
    Motor drive speed1000mm/S
    Max load electric coresX direction: 26; Y direction: 26
    Capable file group storage99 groups
    Operating systemembedded system human-machine interface
    Transmission modeTaiwan precision screw with guide rail
    Driving modestepper servo motor
    Repeat positioning accuracy±0.02mm
    DimensionsL: 900mm, W: 900mm, H: 1750mm
    Power4000W
    Machine weight200KG
    Max bearing weight of Y-axis35KG
    Input power supplydouble-phase AC 220V/50Hz AC380V 3 phase
    Air Source0.4-0.6 Mpa

    Double Side Spot Welding Machine Details

    Efficiency Lithium Battery Pack Welder Battery Automatic Double Side Spot Welding Machine

    Efficiency Lithium Battery Pack Welder Battery Automatic Double Side Spot Welding MachineEfficiency Lithium Battery Pack Welder Battery Automatic Double Side Spot Welding Machine
