    26650 Battery Spot Welding Welder Machine For Battery Cell Pack Packing Assemble Line

    Ask Lasest Price
    Brand Name : XWELL
    Model Number : MD-ADW
    Certification : CE
    Price : USD 6000 - 9000 / pcs
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 100pcs per month
    Delivery Time : 10-15 days
    • Product Details
    • Company Profile

    26650 Battery Spot Welding Welder Machine For Battery Cell Pack Packing Assemble Line

    Double Side 18650 26650 Battery Spot Welding Welder Machine For Battery Cell Pack Packing Assemble Line

    Description:

    Designed for 18650, 26650... battery pack welding,like E-bike,scooter,and electro mobile battery pack welding. 5000A invert spot welding power supply. high quanlity welding effect. Servo motor driving.fast, stable welding.

    Programmable welding process,can produce any shape battery pack.
    Real-time welding effect monitoring warning for NG welding spot.

    Features:
    1. The automatic welding current monitoring system can monitor the welding current in real-time;
    2. Suitable for large-scale automated spot welding and assembly line matching of battery packs;
    3. High welding efficiency, taking 18650 as an example: about 2500-3000PCS of cells/hour:
    4. Simple programming, with anti fooling configuration, easy for ordinary employees to operate the equipment.
    5. Easy to adjust and use, with independently adjustable welding needle spacing and pressure



    Battery Spot Welding Machine Specification

    Model No.MD-ASW
    Y-axis travel500mm (customizable)
    X-axis travel350mm (customizable)
    Max spot welding speed0.35s/point (1 hour:about 2800 units18650 cells)
    Motor drive speed1000mm/S
    Max load electric coresX direction: 26; Y direction: 26
    Capable file group storage99 groups
    Operating systemembedded system human-machine interface
    Transmission modeTaiwan precision screw with guide rail
    Driving modestepper servo motor
    Repeat positioning accuracy±0.02mm
    DimensionsL: 900mm, W: 900mm, H: 1750mm
    Power4000W
    Machine weight200KG
    Max bearing weight of Y-axis35KG
    Input power supplydouble-phase AC 220V/50Hz AC380V 3 phase
    Air Source0.4-0.6 Mpa

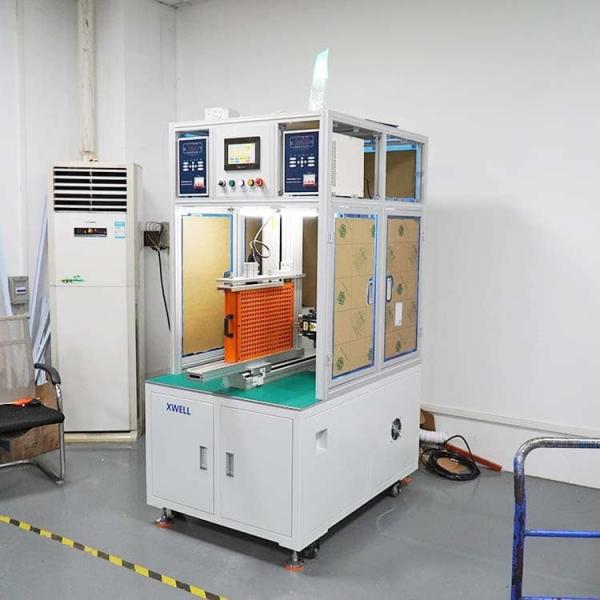

    Double Side Spot Welding Machine Details

    26650 Battery Spot Welding Welder Machine For Battery Cell Pack Packing Assemble Line
