Cylindrical Battery Pack CNC Spot Welding Machine PLC Core

Ask Lasest Price
Brand Name :	XWELL
Model Number :	MD-ADW
Certification :	CE
Price :	USD 6000 - 9000 / pcs
Payment Terms :	T/T, Western Union, L/C
Supply Ability :	100pcs per month
Delivery Time :	10-15 days

Add to Cart

Product Details
Company Profile

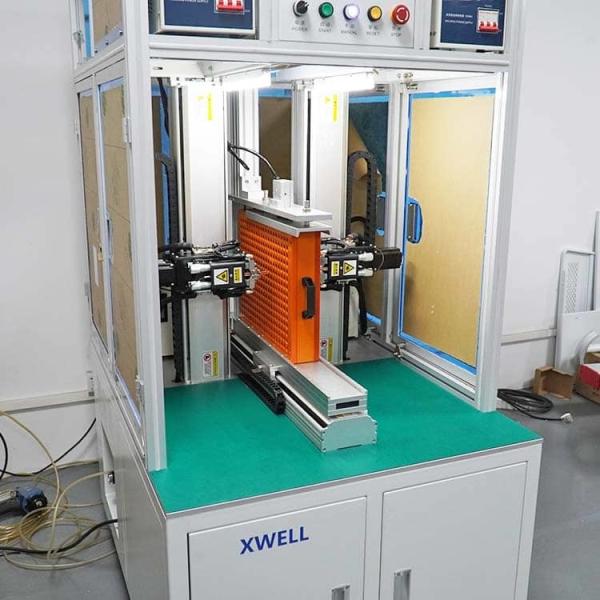

Cylindrical Battery Pack CNC Spot Welding Machine PLC Core

Automatic 18650/26650/32650 Cylindrical Battery Pack Double Sides CNC Spot Welding Machine For Battery Assembly

Description:
1.Adjustable welding pulse width, small welding spatter, no
discoloration of the welded joint
2. High-speed polarity switching function, adjustable welding pulse
width. Consistent energy output for each weld. Ensures that both
weld joints are consistent. Can be realized with (single) double
pulse energy storage welding, reduce welding spatter
3. Highly stable output, with welding voltage locking technology,
electronic voltage stabilization function. Prevents fluctuations in
network voltage from affecting welding current. Not affected by
line voltage (grid) fluctuations.
4. Can monitor the welding current, current abnormal sound and
light alarm
5. 10 custom welding specifications, can be flexibly called
6. With a 5-digit counter, counting the number of successful
welding, can set the count alarm, prompting the repair of the
welding pin
Features:
This machine is used for 18650/26650/32650 cylindrical battery pack
automatic spot welding, it can weld both side together with high
speed and good effect.
1. Support breakpoint start, support automatic start and manual
start mode conversion.
2. It has a false spot welding and out of spot welding alarm
function.
3. Programming is simple, and it supports any point programming and
array programming. 999 groups can be saved programming files.
4. Welding needle replacement forecast reminder.
5. Own welding current monitoring system, real-time monitoring of
welding current.

Battery Spot Welding Machine Specification

Model No.	MD-ASW
Y-axis travel	500mm (customizable)
X-axis travel	350mm (customizable)
Max spot welding speed	0.35s/point (1 hour:about 2800 units18650 cells)
Motor drive speed	1000mm/S
Max load electric cores	X direction: 26; Y direction: 26
Capable file group storage	99 groups
Operating system	embedded system human-machine interface
Transmission mode	Taiwan precision screw with guide rail
Driving mode	stepper servo motor
Repeat positioning accuracy	±0.02mm
Dimensions	L: 900mm, W: 900mm, H: 1750mm
Power	4000W
Machine weight	200KG
Max bearing weight of Y-axis	35KG
Input power supply	double-phase AC 220V/50Hz AC380V 3 phase
Air Source	0.4-0.6 Mpa

Double Side Spot Welding Machine Details
