    Battery Pack Double Sides Spot Welding Machine 18650 22650 Welder Battery

    Ask Lasest Price
    Brand Name : XWELL
    Model Number : MD-ADW
    Certification : CE
    Price : USD 6000 - 9000 / pcs
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 100pcs per month
    Delivery Time : 10-15 days
    • Product Details
    • Company Profile

    Battery Pack Double Sides Spot Welding Machine 18650 22650 Welder Battery

    Battery Pack Double Sides Spot Welding Machine 18650 22650 Welder Battery


    Description:

    Power Battery 18650 / 26650 series-parallel combination of batteries, multi-parallel multi-series combination, electric tool battery, torsion car battery (1 die spot welding 6 groups) , energy storage battery pack, 18650 Battery Group, 26650 Battery Group, 32650 Battery Group, Electric Bicycle Battery, solar Street light, Ternary Lithium Ion battery, digital lithium ion battery, lithium iron phosphate battery, etc. .

    Advantage:

    1. The equipment is made of aluminum alloy and sheet metal structure, which is firm and not easy to loosen, and ensures stability.

    2. It is suitable for large-scale automatic spot welding of batteries.

    3. The spot welding effect is stable and guaranteed.

    4. high welding efficiency, take 18650 as an example: about 4600-5000PCS power core / Hour

    5. spot welding die has anti-dull configuration, ordinary staff can debug equipment and operating equipment.

    6. equipment with 200 sets of spot welding parameters storage, can quickly switch spot welding model.



    Battery Spot Welding Machine Specification

    Model No.MD-ASW
    Y-axis travel500mm (customizable)
    X-axis travel350mm (customizable)
    Max spot welding speed0.35s/point (1 hour:about 2800 units18650 cells)
    Motor drive speed1000mm/S
    Max load electric coresX direction: 26; Y direction: 26
    Capable file group storage99 groups
    Operating systemembedded system human-machine interface
    Transmission modeTaiwan precision screw with guide rail
    Driving modestepper servo motor
    Repeat positioning accuracy±0.02mm
    DimensionsL: 900mm, W: 900mm, H: 1750mm
    Power4000W
    Machine weight200KG
    Max bearing weight of Y-axis35KG
    Input power supplydouble-phase AC 220V/50Hz AC380V 3 phase
    Air Source0.4-0.6 Mpa

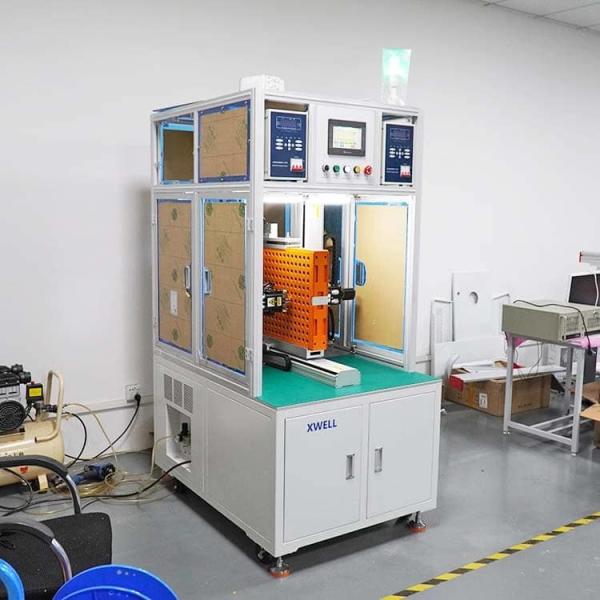

    Double Side Spot Welding Machine Details

    Battery Pack Double Sides Spot Welding Machine 18650 22650 Welder Battery
