Cnc 18650 26650 Battery Spot Welding Machine For Cell Pack Packing Assemble Line

Guangdong XWELL New Energy Technology CO., LTD.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Cnc 18650 26650 Battery Spot Welding Machine For Cell Pack Packing Assemble Line from wholesalers

    Buy cheap Cnc 18650 26650 Battery Spot Welding Machine For Cell Pack Packing Assemble Line from wholesalers
    • Buy cheap Cnc 18650 26650 Battery Spot Welding Machine For Cell Pack Packing Assemble Line from wholesalers

    Cnc 18650 26650 Battery Spot Welding Machine For Cell Pack Packing Assemble Line

    Ask Lasest Price
    Brand Name : XWELL
    Model Number : MD-ADW
    Certification : CE
    Price : USD 6000 - 9000 / pcs
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 100pcs per month
    Delivery Time : 10-15 days
    • Product Details
    • Company Profile

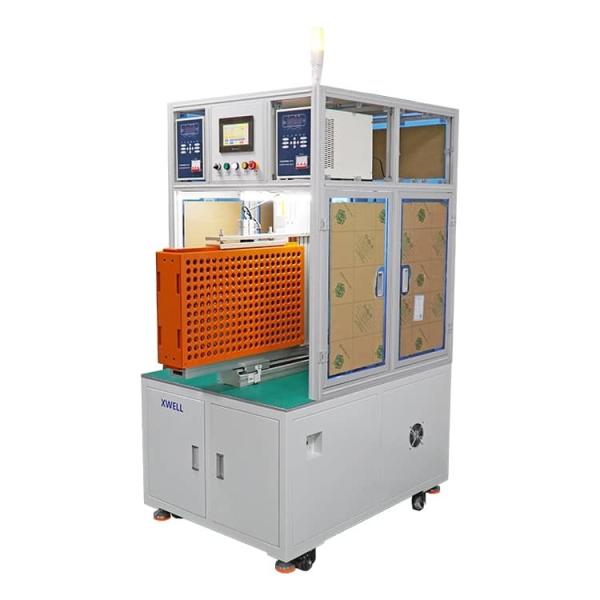

    Cnc 18650 26650 Battery Spot Welding Machine For Cell Pack Packing Assemble Line

    Automatic Double Side Cnc 18650 26650 Battery Spot Welding Welder Machine For Battery Cell Pack Packing Assemble Line


    Automatic Battery Pack Welding Machine

    Designed for 18650, 26650... battery pack welding,like E-bike,scooter,and electro mobile battery pack welding. 5000A invert spot welding power supply. high quanlity welding effect. Servo motor driving.fast, stable welding.
    Programmable welding process,can produce any shape battery pack.
    Real-time welding effect monitoring warning for NG welding spot.

    Equipment Features

    • Automatic battery pack spot welder adopts traditional pneumatic single point dynamic, ensure the welding accuracy, and improve the welding appearance quality and reliability.
    • Can store dozens process of different battery packs product, switching products without re-setting parameters.
    • Can match a variety brand of spot welders.


    Battery Spot Welding Machine Specification


    Model No.MD-AW
    Y-axis travel500mm (customizable)
    X-axis travel350mm (customizable)
    Max spot welding speed0.35s/point (1 hour:about 2800 units18650 cells)
    Motor drive speed1000mm/S
    Max load electric coresX direction: 26; Y direction: 26
    Capable file group storage99 groups
    Operating systemembedded system human-machine interface
    Transmission modeTaiwan precision screw with guide rail
    Driving modestepper servo motor
    Repeat positioning accuracy±0.02mm
    DimensionsL: 900mm, W: 900mm, H: 1750mm
    Power4000W
    Machine weight200KG
    Max bearing weight of Y-axis35KG
    Input power supplydouble-phase AC 220V/50Hz AC380V 3 phase
    Air Source0.4-0.6 Mpa

    Double Side Spot Welding Machine Details

    Cnc 18650 26650 Battery Spot Welding Machine For Cell Pack Packing Assemble Line

    Cnc 18650 26650 Battery Spot Welding Machine For Cell Pack Packing Assemble LineCnc 18650 26650 Battery Spot Welding Machine For Cell Pack Packing Assemble Line
