    Nickel Sheets Electric Battery Operated Spot Welding Machine For Cylindrical Battery

    Ask Lasest Price
    Brand Name : XWELL
    Model Number : MD-ADW
    Certification : CE
    Price : USD 6000 - 9000 / pcs
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 100pcs per month
    Delivery Time : 10-15 days
    • Product Details
    • Company Profile

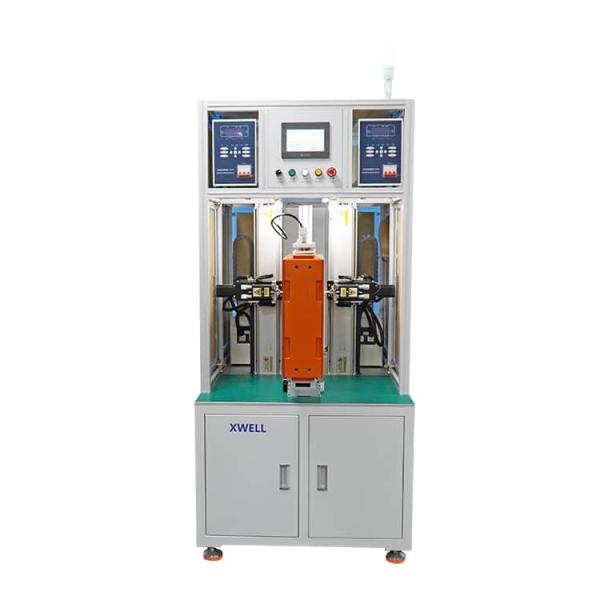

    Nickel Sheets Electric Battery Operated Spot Welding Machine For Cylindrical Battery

    Nickel Sheets Electric Double Sided Battery Operated Spot Welding Machine For Cylindrical Battery


    Features

    1. Suitable for 18650, 26650…battery pack welding, like E-bike, scooter, and electromobile battery pack welding.

    2. Induction load voltage, feedback mode to control the constant voltage, to achieve high-quality welding.

    3. PRE HEAT, MAIN HEAT power mode, preheats before welding, to ensure a stable welding quality.

    4. To maintain the continuity of energy density, welding time is short, reduce the base metal deformation and discoloration.

    5. Easy to change from low current to high current, suitable for precision welding.

    6. Can set the upper and lower limits of the current, simply determine the quality of welding is good or not.

    7. The welding current increases with the welding time to ensure the welding result.


    Product Description

    Automatic Battery Pack Spot Welder is a general platform of automatic processing technology based on CNC, suitable battery pack spot welding and assembly in the factory. Compared with manual spot welding, the efficiency and accuracy of welding have been greatly improved


    Battery Spot Welding Machine Specification


    Model No.MD-AW
    Y-axis travel500mm (customizable)
    X-axis travel350mm (customizable)
    Max spot welding speed0.35s/point (1 hour:about 2800 units18650 cells)
    Motor drive speed1000mm/S
    Max load electric coresX direction: 26; Y direction: 26
    Capable file group storage99 groups
    Operating systemembedded system human-machine interface
    Transmission modeTaiwan precision screw with guide rail
    Driving modestepper servo motor
    Repeat positioning accuracy±0.02mm
    DimensionsL: 900mm, W: 900mm, H: 1750mm
    Power4000W
    Machine weight200KG
    Max bearing weight of Y-axis35KG
    Input power supplydouble-phase AC 220V/50Hz AC380V 3 phase
    Air Source0.4-0.6 Mpa

    Double Side Spot Welding Machine Details

    Nickel Sheets Electric Battery Operated Spot Welding Machine For Cylindrical Battery

    Nickel Sheets Electric Battery Operated Spot Welding Machine For Cylindrical Battery
