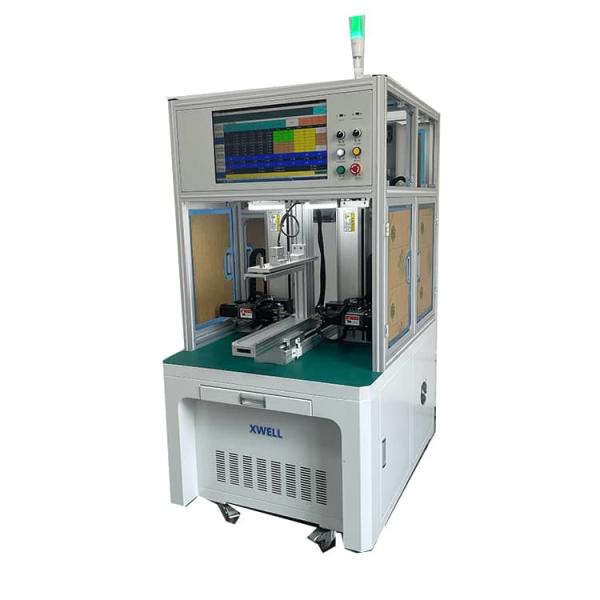

Battery Spot Welding Machine/ 18650/21700 Battery Spot Welder

Product Description

The MD-ASW Double Side Automatic Battery Pack Spot Welding Machine is a general platform of automatic processing technology based on microcomputer, suitable battery pack spot welding and assembly in the factory.

Product Features

1. Induct the load voltage, control the voltage in the feedback mode, and realize high-quality welding.
2. Power on mode of pre heat and main heat: preheat before welding to ensure stable welding quality.
3. Keep the continuity of energy density, short welding time, reduce the deformation and discoloration of base metal. (the welding time is controlled in microseconds, and the mode of continuous output)
4. Easy to change from low current to high current, suitable for precision welding.
5. The upper and lower limits of current can be set to judge whether the welding quality is good or not, which is suitable for the welding automation platform.
6. The welding current will rise with the power on time to ensure the welding effect.
7. Stable control system
8. High configuration regulating device
9. High precision working procedure
10. High cost performance of products

Product Advantages

1. High stablity
2. Strong generalty
3. Production control
4. Long maintenance
5. Efficient and precise
6. Welding pulse width is adjustable, welding machine is firm and spatter is small, welding spot is not colored.
7. 7 Inch Touch screen, more convenient operation, more clear display
8. Three file programming modes, manual input, array and CAD DXF schema import, simple and fast response to various complex program editing
9. The welding head has the function of air cooling or water cooling, which can effectively reduce the influence of the temperature of spot welding needle on the welding quality.
10. It can store 99 groups of files, which are easy to call and do not need complicated wiring and shunting process.
11. One-button calibration function for whole deviation of solder joint, which can be used to calibrate point deviation caused by needle replacement or other reasons.
12. Spot welding efficiency is higher, welding speed per spot is less than 0.35S (according to different speed of the selected welding machine), single side spot welding machine can reach 2800 cores per hour.
13. The core parts are imported from Japan and Taiwan. The accuracy, stability and service life of the machine are more than twice that of other parts made in China.
14. Welding automatic alarm and stop function, after clearing the fault can continue spot welding
15. Machine with power cut or breakpoint continue function, can manually adjust any position for spot welding
16. Welding machine can be optional, according to different requirements of customers, different welding machines can be selected to effectively meet customer needs.

Product Specification

Product Application

Applicable to electric vehicle battery pack, street lamp battery pack, automobile battery module, balance vehicle battery pack, scooter battery pack, mobile power supply, starting battery pack module, power tool battery pack, notebook battery pack, various electronic products and other battery combinations!

Product Operation

1. Setting the parameters of welding on the touch screen. (The same product only need to be set once)
2. Put the fixture with the battery pack on the quick clamping position.
3. Press the start button, the machine automatically complete all welding actions.
4. The welder sound to prompt operator replacement of new fixture (battery pack).

Battery spot welder details

Factory show

GUANGDONG XWELL TECHNOLOGY CO., LTD. is a high-tech enterprise specializing in intelligent equipment design, production and sales, providing mechanical engineering technology design and consulting services, electronic engineering design and consulting services. XWELL's core team was established in 2010 and officially established in June 2014. XWELL relies on South China University of Technology(SCUT), and the core team is composed of several doctors and masters from SCUT.

XWELL's main products are battery production line machines, such as spot welding machine, battery sorting machine, battery sticking machine, battery capacity grading machine, battery charge and discharge aging machine, battery general testing machine, and so on. The main application areas are new energy lithium batteries, automobiles and other industries, Especially in the fields of new energy, automotive wiring welding and other fields, XWELL has accumulated rich engineering experience and mastered a full set of core technologies, and can provide customers with a complete set of services from technology to equipment, helping customers to establish efficient and reliable production lines in the shortest time .
