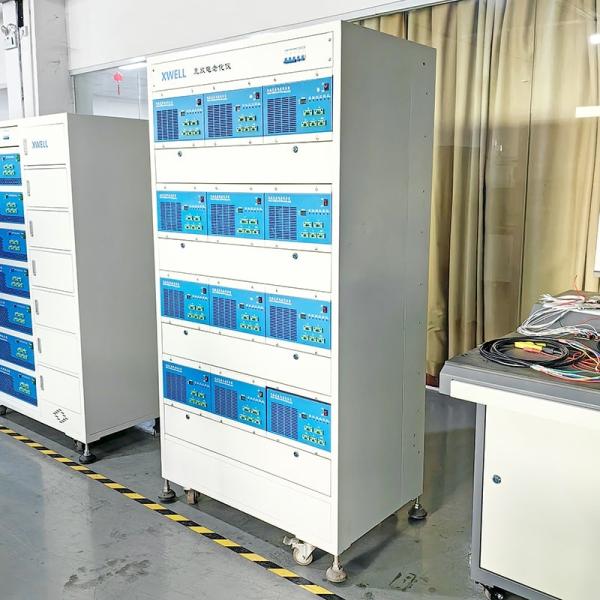

70V5A10V Lithium Battery Charging Discharging Life Cycle Testing Machine Battery Aging Tester For Battery Pack

Ask Lasest Price
Brand Name :	XWELL
Model Number :	BCDS70-05-10
Certification :	CE
Price :	USD 2000/pcs
Payment Terms :	T/T, Western Union, L/C
Supply Ability :	100 pcs per month
Delivery Time :	15-20 days

Add to Cart

Product Details
Company Profile

70V5A10V Lithium Battery Charging Discharging Life Cycle Testing Machine Battery Aging Tester For Battery Pack

70V5A10V Lithium Battery Charging Discharging Life Cycle Testing Machine Battery Aging Tester For Battery Pack

Basic performance:

70V5A10V Lithium Battery Charging Discharging Life Cycle testing machine Battery Aging Tester for battery pack

Equipment introduction:

Serial port connection mode: If the instrument is single or less than 3, it can be connected to the PC through the serial port, which can reduce the complexity of using the instrument.
♦Network connection mode: If there are more than 3 instruments, the network connection mode can be used. The PC computer only needs to provide a network port to control less than 60 instruments.
♦Control system: The software system of the aging instrument adopts the classic and mature C/S mode, and the communication mode is serial port and network.
♦Management software: Based on Windows operating system, using SQL database to store test data, which greatly facilitates the staff to query and export data online. According to the battery bar code, time, and device number, you can view the charge and discharge aging curve, and you can

Product Specification

Technical Parameter
Input Power Supply	Measuring Range	7-70V
	Accuracy	±(0.2% of reading +0.2% of range)
Current	Charging Range	50-5000mA
	Charging Accuracy	±(0.2% of reading +0.2% of range)
	Discharge Range	50-10000mA
	Discharge Accuracy	±(0.2% of reading +0.2% of range)
Charge	Constant Voltage Cut-off Current	Minimum 50mA
Capacity	Accuracy	±1%
Power	Discharge Power	≤700W
Time	Inspection Time	Real-time Collection<2S
	Timing Range	0-999h/step
Data Recording Interval	≥5S
Middle Machine Version	1:1 series
Number of Passages Per Cabinet	12 channels, four rows and three column
Charge	Charging Mode	Constant Current and Constant Voltage Charging
Charge	Cut-off condition	Voltage, Current, Relative Time, Overcharge Protection
Discharge	Discharge mode	Constant current discharge
	Cut-off condition	Voltage, Relative Time and Over-discharge Protection
Loop	Cyclic measurement range	1-999 times
	Single cycle step number	100
Voltage and Current Detection Sampling	Four-wire sampling
Data Base	Using SQL database to manage test data
Upper computer communication mode	Based on TCP/IP Protocol/Serial Port
Data Output Mode	EXCEL/TXT/Chart
Communication Interface	Mesh port
Chassis dimensions	300x450x170mm
Cabinet size	900x600x1900mm
Spatial Dimension of Discharge Battery	900x600x130mm
