    Lithium Ion 11 Channel 18650 Cylinder Cells Battery Sorter Automatic Separation

    Ask Lasest Price
    Brand Name : XWELL
    Model Number : XW-BS11
    Certification : CE
    Price : USD 5000 - 6000 / pcs
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 100 pcs per month
    Delivery Time : 15-20 days
    • Product Details
    • Company Profile

    Lithium Ion 11 Channel 18650 Cylinder Cells Battery Sorter Automatic Separation

    Lithium Ion 11 Channel 18650 Cylinder Cells Battery Sorter Automatic Separation


    Introduction

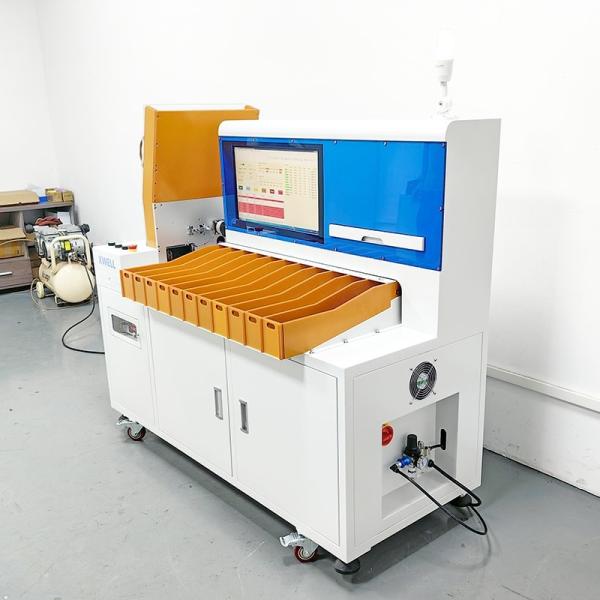

    The battery sorter is mainly used to support the process of sorting and matching cylindrical cores.

    On the basis of conventional capacity parameter sorting, accurate AC internal resistance measurement, open-circuit voltage measurement and sorting and matching of the core are carried out.

    The equipment consists of man-machine interface, charging of core hopper, automatic measurement of internal resistance of core voltage, automatic grading, feeding trough and so on. The maximum one-time grading is 11 grades.


    Customization

    1. We can provide 5-22 channel battery sorter according to your battery productivity requirement.

    2. The battery sorter can equip with a computer which can record the data of battery sortting.

    3. Battery sorter is suitable for all kinds of cylindrical batteries which is a useful machine for battery pack assembly.

    4. Besides battery sorter, Tmax also provide a whole line machine for battery pack assembly.



    Cell Sroting Machine Specification


    Voltage Supply220V±10%/50Hz±10%
    Power<1000W
    Display ScreenComputer software user interface
    Battery Types

    Cylindrical Cell

    (32140, 33138, 33140 )

    Receiving Channel5 channels
    Test ParameterAC internal resistance, DC voltage
    Internal Resistance Test

    Test range: 0-80mΩ

    Accuracy: +/- 0.5% rdg

    Display resolution: 0.01 milliohm

    Voltage Test

    Test range: 0-8V

    Accuracy:±0.1% rdg

    Resolution: 0.01mV

    Sorting Speed3000 pcs/h
    Weight<200KG
    Dimension1120mm(L)*880mm(W)*1250mm(H)
    TesterHK3561
    Productivity3000 pcs/h

    Cell Sorting Machine Details
