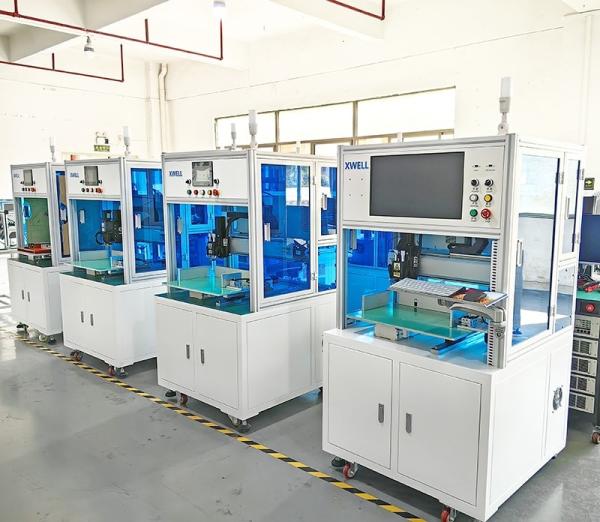

Single Side Spot Welder Machine For 18650 Battery Pack

Battery Spot Welding Machine Description

It is mainly suitable for 18650 26650 32650 cylindrical battery. The max 99 sets of programming data can be stored for simplify the exchange operation. It is universal machine which can by used for all kind of cylindrical batteries production just to changing the welding fixture only. Machine associated with X/Y axis full servo driving, ball screw drive system to ensure spot welding accuracy.

Battery Spot Welding Machine Features

This equipment is mainly used for single-side and double-spot welding of batteries and nickel-plated steel strips or nickel strips in cylindrical/polymer battery assembly, and ensures that the welding tension between batteries and nickel-plated steel strips or nickel strips is greater than 30N. The spot welding range of the equipment can meet the welding requirements of 18650 batteries with 20 series battery packs and less than 20 series battery packs.

The number of welding batteries is determined by the stroke, which can be set by man-machine.

Battery Spot Welding Machine Application

1. Battery industry: battery caps, battery nickel sheets, battery tabs, battery lead-out pieces, button battery welding. It is used for welding of polar plates, negative pins and busbars of various batteries (Ni-MH, Ni-Cd, Li-ion batteries).
2. Automobile and motorcycle accessories, hardware industry: suitable for various terminals and wire harness welding, enameled wire welding, terminal and copper sheet, nickel sheet welding, automobile connection wire and other precision wire harness welding, micro-motor motor lead wire welding.
3. Electronics and electrical components industry: silver contacts on various switches, lead wires and gold-sprayed surfaces, between electronic pins, between soft wires and soft wires, copper wires and resistor pins, capacitor pins, LED lights Welding of electronic pins such as pins, socket pins, plugs, etc.

Battery Spot Welding Machine Specification

Single Side Spot Welding Machine Details

GUANGDONG XWELL TECHNOLOGY CO., LTD. is a high-tech enterprise specializing in intelligent equipment design, production and sales, providing mechanical engineering technology design and consulting services, electronic engineering design and consulting services. XWELL's core team was established in 2010 and officially established in June 2014. XWELL relies on South China University of Technology(SCUT), and the core team is composed of several doctors and masters from SCUT.

XWELL's main products are battery production line machines, such as spot welding machine, battery sorting machine, battery sticking machine, battery capacity grading machine, battery charge and discharge aging machine, battery general testing machine, and so on. The main application areas are new energy lithium batteries, automobiles and other industries, Especially in the fields of new energy, automotive wiring welding and other fields, XWELL has accumulated rich engineering experience and mastered a full set of core technologies, and can provide customers with a complete set of services from technology to equipment, helping customers to establish efficient and reliable production lines in the shortest time .
