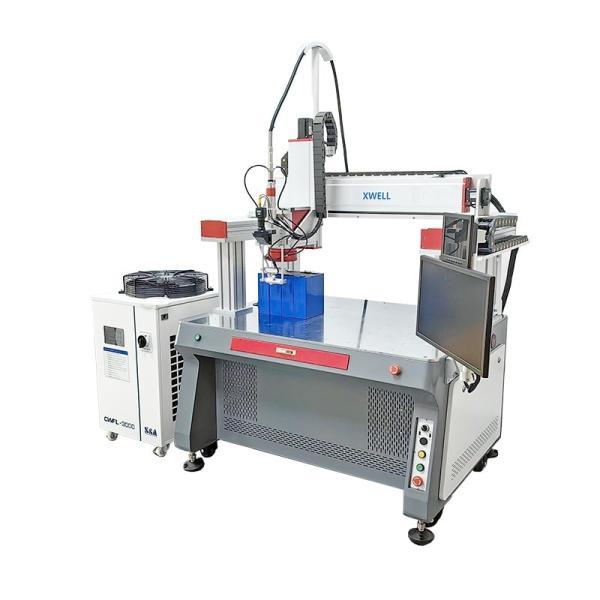

Gantry Battery Laser Welding Machine For Lithium Battery

Introduction:

1.The laser beam quality is excellent, the welding speed is fast, the welding seam is strong

model has the advantages of high efficiency and perfect welding scheme for users

2.Industrial PC control, the workpiece can do plane trajectory movement, you can weld points, s

squares or straight lines and arcs composed of arbitrary planar graphics

3.High conversion rate, low energy consumption.long-term use can save a lot of processing costs for us

4.High reliability, can be 24 hours continuous and stable processing, to meet the needs of industrial mass production and processing.

Documents Support

All Documents for clearance customs support : Contract ,Packing list,CommercialInvoice,Export declaration and so on.

CCD Camera Display

Display on a video display by connecting the device. Claer welding point.

X.Y.Z Axis guide rail

With the function of moving up and down, it can weld irregular products. The Z axis has brake function.
Large-stroke gantry has a larger welding range.
Argon gas blown out of the air pipe doesn't damage to material surface

Water Cooling Machine

Equipped with with 1.5P chiller. it can meet the requirements for a long time. High power welding is more stable.

Standard cabinet, four-axis travel.

With different water machines and different welding heads, the stroke and welding effect will be different.

Desktop welding and handheld welding, multifunctional machine. One machine with multiple functions, customized fixtures, and multiple customized welding stations, work faster and more accurately.

Raycus Laser source
1000W—220V
1500W—380V
2000W—380V

MAX Laser source
1000W—220V
1500W—380V
2000W—380V

JPT Laser source
1000W—220V
1500W—380V
2000W—380V

Laser machine parameters
