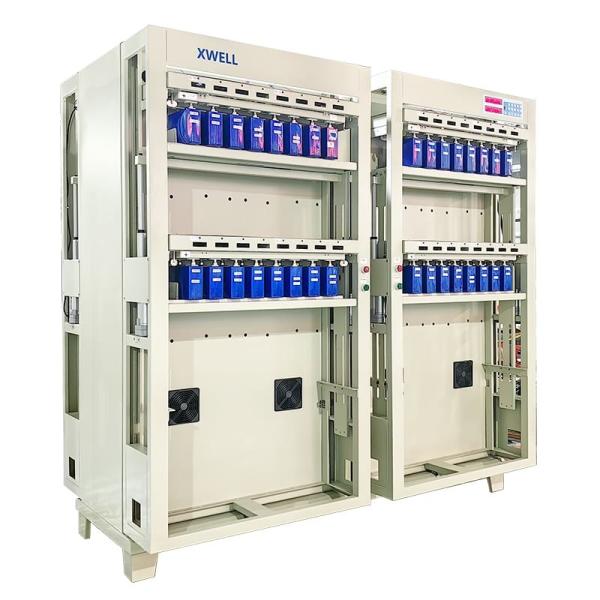

64 Channel 5V 100A Prismatic Cycle Charge Discharge Testing

Ask Lasest Price
Brand Name :	XWELL
Model Number :	XW-64
Certification :	CE
Price :	USD 7900/pcs
Payment Terms :	T/T, Western Union, L/C
Supply Ability :	100 pcs per month
Delivery Time :	15-20 days

Add to Cart

Product Details
Company Profile

64 Channel 5V 100A Prismatic Cycle Charge Discharge Testing

64 Channel 5V 100A Prismatic Cycle Charge Discharge Testing

Product features:
1.5V60A battery capacity test equipment, (dedicated to single cell battery) suitable for high current square battery, polymer
large soft pack battery and other lithium ion battery applications, a total of 8 channels, according to different types of
battery types, we configure the appropriate battery fixture, can help quickly up and down the battery, and can accommodate

Tester EV Ebike Battery Life Cycle Tester:

professional battery performance test equipment manufacturer, providing OEM and ODM services, the main battery capacity test,
battery cycle life test, aging test, high rate charge and discharge test and other battery performance test equipment.
Battery Pack Charge and Discharge Tester EV Battery Life Cycle Aging Testing Tester is mainly used for lithium battery charge and discharge cycle test and lithium battery pack charging discharging aging test. Test items include battery charge protection voltage, discharge protection voltage, capacity, etc.
The device has fourtest steps: charging, discharging, shelving, and cycling. By editing the corresponding steps, the battery can be tested according to the set process.

Product Specification

Working power			Three-phase five-wire system AC380V±10%, 50HZ
Work environment			Temperature 0-40 degrees, relative humidity ≤80%
Heat dissipation			to enter the air naturally and exhaust the air upward
Overall energy saving			over 70%
Channel Parameter
Voltage measuring range			0-5V, 1MV resolution
Battery voltage range			Charge 0-4.5V: Discharge 4.5-2V
Constant voltage range			2.5V-4.5V
voltage accuracy			±(1‰ reading +1‰ full)
Current accuracy			±(1‰ reading +1‰ full)
Software Function
Control mode			Computer connection equipment work, FCL control
Communication mode			RS485 baud rate 57,600
Process set			A maximum of 32 work steps and 256 cycles are se
Charging mode			Constant current, constant pressure
Charging cutoff condition			Voltage, current, time, capacity
Discharge			constant current
Discharge cut-off condition			Voltage, time, capacity
Defensive function			Overvoltage, undervoltage, overcurrent, undercurrent, overcapacity, etc
Time range			Set it anywhere from 0 to 30,000 minutes
Time accuracy			≤±1‰
Sampling inspection period			≤3S
Minimum frequency of data recording			≤5S
Battery sorting			By capacity, time, discharge platform, etc
Data processing			Data, graphs, and loop diagrams

64 Channel 5V 100A Prismatic Cycle Charge Discharge Testing

XWELL can provide different fixtures for different types of cells

64 Channel 5V 100A Prismatic Cycle Charge Discharge Testing
