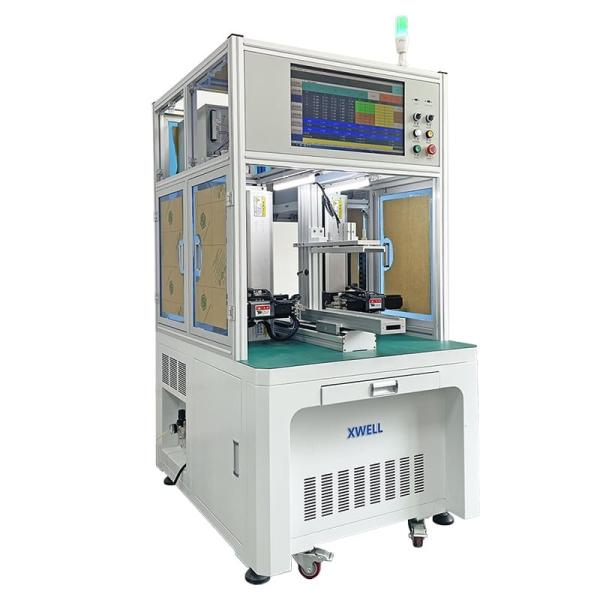

    Automatic Double Sides Spot Welder CNC 18650/26650/32650 Cylindrical Battery Cell Pack Spot Welding Machine

    Ask Lasest Price
    Brand Name : XWELL
    Model Number : MD-ADW
    Certification : CE
    Price : USD 11000 - 15000 / pcs
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 100pcs per month
    Delivery Time : 10-15 days
    • Product Details
    • Company Profile

    Automatic Double Sides Spot Welder CNC 18650/26650/32650 Cylindrical Battery Cell Pack Spot Welding Machine

    Automatic Double Sides Spot Welder CNC 18650/26650/32650 Cylindrical Battery Cell Pack Spot Welding Machine


    Product Description


    Applicable to electric vehicle battery pack, street lamp battery pack, automobile battery module, balance vehicle battery pack, scooter battery pack, mobile power supply, starting battery pack module, power tool battery pack, notebook battery pack, various electronic products and other battery combinations!


    Product Features

    1. Support break point startup, automatic startup and manual startup mode conversion.
    2. Simple programming, support any point programming and array programming, realize skip spot welding, fast switching between single point and double point modes, optimize spot welding path, improve efficiency, save 99 groups of programming files on local disk, and import graphics through USB interface.

    Product Advantages


    1. Welding stroke can be customized
    2. Suitable for various kinds of battery pack
    3. High speed welding
    4. 7-inch touch screen, more convenient operation, clearer display
    5. Welding head has air-cooling or water-cooling function, which can effectively reduce the influence of spot welding needle temperature on welding quality.
    6. Can store up to 99 groups of files, the file issimple to call,
    does not require complicated line changing process
    7. One-key calibration function for total shift ofsolder joints, which can be calibrated for spot shift caused by changing the solder pin or other reasons
    8. Electric or pneumatic spot welding machine is optional


    Product Specification


    SPECIFICATIONS FOR MD-ASW AND MD-ADW
    MD-ASWMD-ADW
    Welding Head Number
    1
    2
    Travel
    X: 400mm; Y: 400mm
    Y: 500mm; Z: 350mm
    Welding Spped
    0.5s/spot, 2000-2500pcs/h
    0.5s/spot, 3500-4000pcs/h
    Welder Power Suppler
    5000A Inverter Spot Welder
    Max Motor Speed
    1000mm/s
    Max Battery Number
    450 pcs (18650)
    Operate System
    Embedded system
    User Interface
    Touch screen
    Drive Mode
    Step motor and precision guide rail
    Power Supply
    220V/50Hz(machine); 3 phase, 380V/50Hz(Welder)
    Air Pressure
    0.3-0.6 MPa
    Machine Size
    900L*900W*1750Hmm
    1100L*900W*1930Hmm
    Machine Weight
    200kg
    350kg


    Product Application


    MD-ADW can be used in electric tool battery, torsion car battery, Energy Storage Battery Pack, Scooter Electric Vehicle Battery, etc. Compared with manual spot welding, the efficiency and accuracy of welding have been greatly improved.


    Product Operation


    1. Setting the parameters of welding on the touch screen. (The same product only need to be set once)
    2. Put the fixture with the battery pack on the quick clamping position.
    3. Press the start button, the machine automatically complete all welding actions.
    4. The welder sound to prompt operator replacement of new fixture (battery pack).


    Double side spot welder details


    Automatic Double Sides Spot Welder CNC 18650/26650/32650 Cylindrical Battery Cell Pack Spot Welding Machine

    Automatic Double Sides Spot Welder CNC 18650/26650/32650 Cylindrical Battery Cell Pack Spot Welding Machine


    Cylindrical battery pack welding samples


    Automatic Double Sides Spot Welder CNC 18650/26650/32650 Cylindrical Battery Cell Pack Spot Welding Machine

    Automatic Double Sides Spot Welder CNC 18650/26650/32650 Cylindrical Battery Cell Pack Spot Welding Machine

    Automatic Double Sides Spot Welder CNC 18650/26650/32650 Cylindrical Battery Cell Pack Spot Welding Machine
