    18650 26650 32650 Battery Pack Automatic Spot Welder

    Ask Lasest Price
    Brand Name : XWELL
    Model Number : MD-ADW
    Certification : CE
    Price : USD 11000 - 15000 / pcs
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 100pcs per month
    Delivery Time : 10-15 days
    • Product Details
    • Company Profile

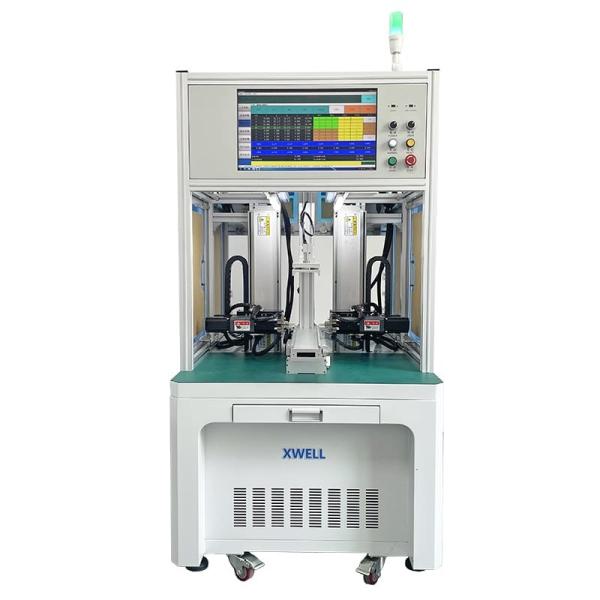

    18650 26650 32650 Battery Pack Automatic Spot Welder

    18650 26650 32650 Battery Pack Automatic Spot Welder


    Product Description


    Suitable for battery connecting piece welding, hardware welding, stainlesssteel, pure nickel plate, nickel-plated plate, aluminum-nickel composite platcopper plate, steel plate, iron plate, etc., the thickness of the welding materiis0.01mm~0.15mm


    Product Advantages

    Transistor spot welding machine welding current rises very fast, can complete the welding process in a short time, the welding heat affected zone is small, and the welding process has no spatter. It is most suitable for ultra-precision welding, such as thin wires, such as button battery connectors, Small contacts and metal foils of relays


    Product Specification


    SPECIFICATIONS FOR MD-ASW AND MD-ADW
    MD-ASWMD-ADW
    Welding Head Number
    1
    2
    Travel
    X: 400mm; Y: 400mm
    Y: 500mm; Z: 350mm
    Welding Spped
    0.5s/spot, 2000-2500pcs/h
    0.5s/spot, 3500-4000pcs/h
    Welder Power Suppler
    5000A Inverter Spot Welder
    Max Motor Speed
    1000mm/s
    Max Battery Number
    450 pcs (18650)
    Operate System
    Embedded system
    User Interface
    Touch screen
    Drive Mode
    Step motor and precision guide rail
    Power Supply
    220V/50Hz(machine); 3 phase, 380V/50Hz(Welder)
    Air Pressure
    0.3-0.6 MPa
    Machine Size
    900L*900W*1750Hmm
    1100L*900W*1930Hmm
    Machine Weight
    200kg
    350kg


    Product Application


    MD-ADW can be used in electric tool battery, torsion car battery, Energy Storage Battery Pack, Scooter Electric Vehicle Battery, etc. Compared with manual spot welding, the efficiency and accuracy of welding have been greatly improved.


    Product Operation


    1. Setting the parameters of welding on the touch screen. (The same product only need to be set once)
    2. Put the fixture with the battery pack on the quick clamping position.
    3. Press the start button, the machine automatically complete all welding actions.
    4. The welder sound to prompt operator replacement of new fixture (battery pack).


    Double side spot welder details


    18650 26650 32650 Battery Pack Automatic Spot Welder

    18650 26650 32650 Battery Pack Automatic Spot Welder


    Cylindrical battery pack welding samples


    18650 26650 32650 Battery Pack Automatic Spot Welder

    18650 26650 32650 Battery Pack Automatic Spot Welder

    18650 26650 32650 Battery Pack Automatic Spot Welder
