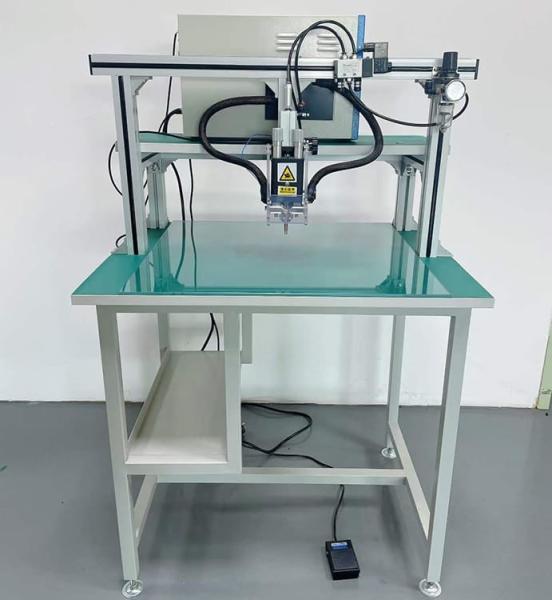

Gantry Pneumatic High-Power Welding Machine 18650 Lithium Battery Spot Welding Machine

Gantry Spot Welding Machine Description

1. This machine is controlled by a high-performance single-chip microcomputer. It is currently an advanced high-performance resistance spot welding machine.
2. The machine has the function of switching over 30 sets of welding parameters, and also has the function of monitoring the welding current, which can control the welding quality to ensure the welding quality. This device is a welding equipment developed for industries that require high-quality welding.
3. This machine has a 2-stage power-on output function, which can be adapted to the welding of various welding materials and various welding process requirements. It has stable performance and is suitable for precision welding of metal parts such as batteries and hardware.

Gantry Spot Welding Machine Features

High-performance CPU control, 128*64LCD blue screen display, pulse energy storage welding, reducing welding phoenix; high-speed polarity switching function to ensure that the two welding spots are consistent, electronic voltage stabilization function. In the case of unstable network voltage, it can also have stable current output, pulse 1 and pulse 2 width adjustable (discharge time), with current monitoring function, abnormal current sound and light alarm, 30 custom welding specifications, which can be flexibly called. Solder joint counting preset function, reminder for repair, electrode replacement, single point and continuous point function, radio (RFI) and electromagnetic interference protection, split adjustment of power supply head, flexible matching of pneumatic and pedal.

Gantry Spot Welding Machine Application

With the corresponding fixture, the spot welding machine can weld 18650, 26650, 32650 and other cylindrical batteries, can also be customized for a variety of cylindrical battery, square battery, button battery and etc.

The machine suitable for below product:

• Power Storage Battery
• Power Module Battery
• Electric Tool Battery
• Photovoltaic Energy Storage Battery

Product Specification

Product Sturcture

Battery Pack Welding Samples

Spot welding samples
The double side spot welding machine suitable for all types of cylindrical cells pack and suitable for all shapes of packs. With high quality 5000A/8000A spot welding power supply, it can weld thickness from 0.1mm to 0.3mm. Welding spot is beautiful, firm and good conductivity.

GUANGDONG XWELL TECHNOLOGY CO., LTD. is a high-tech enterprise specializing in intelligent equipment design, production and sales, providing mechanical engineering technology design and consulting services, electronic engineering design and consulting services. XWELL's core team was established in 2010 and officially established in June 2014. XWELL relies on South China University of Technology(SCUT), and the core team is composed of several doctors and masters from SCUT.

XWELL's main products are battery production line machines, such as spot welding machine, battery sorting machine, battery sticking machine, battery capacity grading machine, battery charge and discharge aging machine, battery general testing machine, and so on. The main application areas are new energy lithium batteries, automobiles and other industries, Especially in the fields of new energy, automotive wiring welding and other fields, XWELL has accumulated rich engineering experience and mastered a full set of core technologies, and can provide customers with a complete set of services from technology to equipment, helping customers to establish efficient and reliable production lines in the shortest time .
