    Single Side Automatic Spot Welding Machine For Cylindrical Battery Pack Nickel Strip

    Ask Lasest Price
    Brand Name : XWELL
    Model Number : MD-ASW
    Certification : CE
    Price : USD 6000 - 9000 / pcs
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 100pcs per month
    Delivery Time : 10-15 days
    • Product Details
    • Company Profile

    Single Side Automatic Spot Welding Machine For Cylindrical Battery Pack Nickel Strip

    High Quality Single Side Automatic Spot Welding Machine For Cylindrical Battery Pack Nickel Strip


    Description:

    The MD-ASW Single Side Automatic Battery Pack Spot Welding Machine is a general platform of automatic processing technology based on microcomputer, suitable battery pack spot welding and assembly in the factory.
    Compared with manual spot welding, the efficiency and accuracy of welding have been greatly improved. Humanized design makes the operation and debugging very easy and convenient. Design of components built-in makes appearance more concise.

    Features :

    1) Suitable for all cylindrical cells, like 18650, 21700, 26650, 32650 … battery pack welding; widely application area, like
    E-bike, scooter, and electro mobile battery pack welding.
    2) 5000A/8000A inverter spot welding power supply (optional), high quality welding effect.
    3) Servo motor driving, fast, stable welding.
    4) Support breakpoint start, automatic start, and manual start.
    5) Cold solder joint and sealing off alarm.


    Battery Spot Welding Machine Specification


    Model No.MD-ASW
    Y-axis travel500mm (customizable)
    X-axis travel350mm (customizable)
    Max spot welding speed0.35s/point (1 hour:about 2800 units18650 cells)
    Motor drive speed1000mm/S
    Max load electric coresX direction: 26; Y direction: 26
    Capable file group storage99 groups
    Operating systemembedded system human-machine interface
    Transmission modeTaiwan precision screw with guide rail
    Driving modestepper servo motor
    Repeat positioning accuracy±0.02mm
    DimensionsL: 900mm, W: 900mm, H: 1750mm
    Power4000W
    Machine weight200KG
    Max bearing weight of Y-axis35KG
    Input power supplysingle-phase AC 220V/50Hz AC380V 3 phase
    Air Source0.4-0.6 Mpa

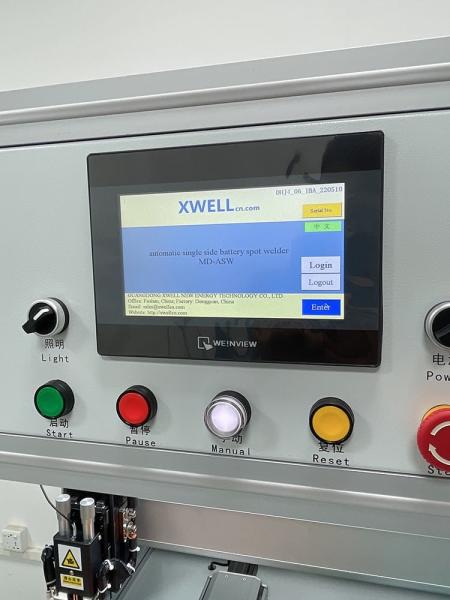

    Single Side Spot Welding Machine Details

    Single Side Automatic Spot Welding Machine For Cylindrical Battery Pack Nickel Strip

    Single Side Automatic Spot Welding Machine For Cylindrical Battery Pack Nickel StripSingle Side Automatic Spot Welding Machine For Cylindrical Battery Pack Nickel Strip
