    Electric Aluminum Spot Welding Machine Automatic For Cylindrical Battery Pack

    Ask Lasest Price
    Brand Name : XWELL
    Model Number : MD-ASW
    Certification : CE
    Price : USD 6000 - 9000 / pcs
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 100pcs per month
    Delivery Time : 10-15 days
    • Product Details
    • Company Profile

    Electric Aluminum Spot Welding Machine Automatic For Cylindrical Battery Pack

    Lithium Ion Automatic Battery Pack Electric Aluminum Spot Welding Machine Cylindrical Packs


    Features

    This machine is used for 18650,26650,32650 cylinder battery pack automatic spot welding.
    1.Support break point start, support automatic start and manual start mode conversion.
    2.It has a false spot welding and out of spot welding alarm function.
    3.Programming is simple, and it supports any point programming and array programming. 999 groups can be saved programming files.
    4.Welding needle replacement forecast reminder.
    5.Own welding current monitoring system, real-time monitoring of welding current.

    Advantages:
    1. Welding stroke can be customized
    2. Suitable for various kinds of battery pack
    3. High speed welding
    4. 7-inch touch screen, more convenient operation, clearer display
    5. Welding head has air-cooling or water-cooling function, which can effectively reduce the influence of spot welding needle
    temperature on welding quality.
    6. Can store up to 999 groups of files, the file issimple to call,
    does not require complicated line changing process
    7. One-key calibration function for total shift ofsolder joints, which can be calibrated for spot shift caused by changing the
    solder pin or other reasons8. Electric or pneumatic spot welding machine is optional


    Battery Spot Welding Machine Specification


    Model No.MD-ASW
    Y-axis travel500mm (customizable)
    X-axis travel350mm (customizable)
    Max spot welding speed0.35s/point (1 hour:about 2800 units18650 cells)
    Motor drive speed1000mm/S
    Max load electric coresX direction: 26; Y direction: 26
    Capable file group storage99 groups
    Operating systemembedded system human-machine interface
    Transmission modeTaiwan precision screw with guide rail
    Driving modestepper servo motor
    Repeat positioning accuracy±0.02mm
    DimensionsL: 900mm, W: 900mm, H: 1750mm
    Power4000W
    Machine weight200KG
    Max bearing weight of Y-axis35KG
    Input power supplysingle-phase AC 220V/50Hz AC380V 3 phase
    Air Source0.4-0.6 Mpa

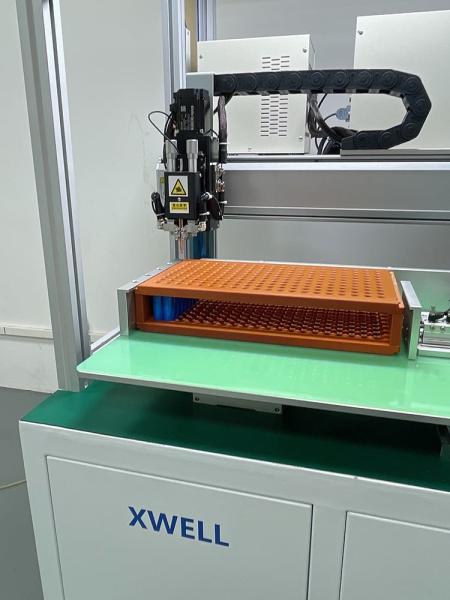

    Single Side Spot Welding Machine Details

    Electric Aluminum Spot Welding Machine Automatic For Cylindrical Battery Pack

    Electric Aluminum Spot Welding Machine Automatic For Cylindrical Battery PackElectric Aluminum Spot Welding Machine Automatic For Cylindrical Battery Pack
