5 Channel Automatic Cylindrical Battery 18650 Cell Sorting Machine Battery Grading

Ask Lasest Price
Brand Name :	XWELL
Model Number :	XW-BS05
Certification :	CE
Price :	USD 5000 - 6000 / pcs
Payment Terms :	T/T, Western Union, L/C
Supply Ability :	100 pcs per month
Delivery Time :	15-20 days

Add to Cart

Product Details
Company Profile

5 Channel Automatic Cylindrical Battery 18650 Cell Sorting Machine Battery Grading

5 Channel Automatic Cylindrical Battery 18650 Cell Sorting Machine Battery Grading Sorter Machine For Battery Pack

Automatic Battery Sorting Machine

1.Compact and reasonable equipment structure, beautifulappearance,
small volume.
2.Simple equipment operation, workers can easily learning
3.The equipment is controlled by PLC and PC.The PLC is responsible
for battery feeding, battery handling and batterysorting.The PC is
responsible for battery testing data collection,voltage internal
resistance rating, high work efficiency, saving manpower, good
product performance.
4. Equipment materials are made of high quality thick
cold-rolledsheet metal, aluminum frame.
5. The device is equipped with universal movable casters,the device
can easily move when it is displaced.

Features

1) Compact and reasonable equipment structure, beautiful appearance,
small volume. Simple equipment operation, workers can easily
learning.

2) The equipment is controlled by PLC and PC. The PLC is responsible
for battery feeding, battery handling and battery sorting. The PC
is responsible for battery testing data collection, voltage
internal resistance rating, high work efficiency, saving manpower,
good product performance.

3) Equipment materials are made of high quality thick cold-rolled
sheet metal, aluminum frame.

4) The device is equipped with universal movable casters, the device
can easily move when it is displaced.

Cell Sroting Machine Specification

Voltage Supply	220V±10%/50Hz±10%
Power	<1000W
Display Screen	Computer software user interface
Battery Types	Cylindrical Cell (32140, 33138, 33140 )
Receiving Channel	5 channels
Test Parameter	AC internal resistance, DC voltage
Internal Resistance Test	Test range: 0-80mΩ Accuracy: +/- 0.5% rdg Display resolution: 0.01 milliohm
Voltage Test	Test range: 0-8V Accuracy:±0.1% rdg Resolution: 0.01mV
Sorting Speed	3000 pcs/h
Weight	<200KG
Dimension	1120mm(L)880mm(W)1250mm(H)
Tester	HK3561
Productivity	3000 pcs/h

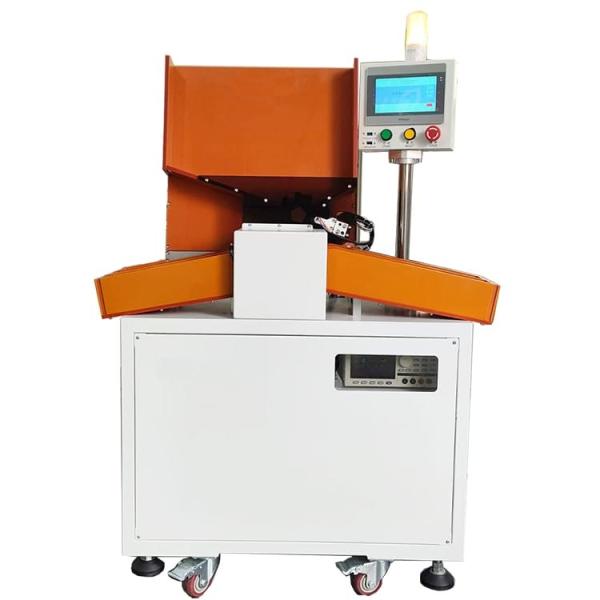

Cell Sorting Machine Details

5 Channel Automatic Cylindrical Battery 18650 Cell Sorting Machine Battery Grading
