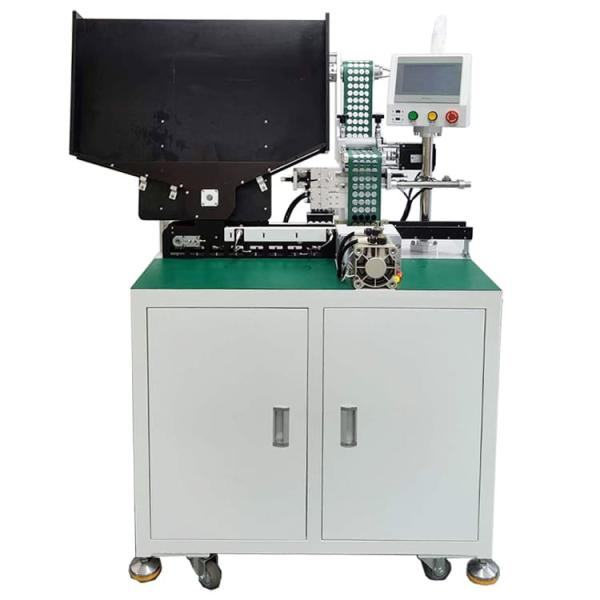

18650 21700 Cylindrical Battery Cell Insulation Paper Sticking
Machine
Description
MD-BSM is an automatic equipment for pasting barley paper on cylindrical
batteries. This equipment realizes the function of sticking
highland barley paper to qualified batteries.
Features
This machine can use a big roll of barley paper or PVC to automatically paste cylindrical cells.
1. Stickers pasted stable, consistent, and long lasting.
2. Automatic failure alarm.
3. Easy to program, adjust, and opertate for new hands.
4. High Efficiency, fully automatic, saving labor cost.
Battery Sticking Machine Specification
| oltage/Power | Single-phase 220V,50Hz, 1500W |
| Air Pressure | 0.4-0.8Mpa |
| Material Specfication | Barley paper |
| Maximum Breadth | 100mm paper Total thickness:0.3mm |
| Charging Pattern | Put in Batteries disposable put in 500PCS |
| Production Efficiency | 4800pcs/hour, single pad 4pcs |
| Size(L xW x H) | 1000x700x1630mm |
| Surfact Mat Material | Barley paper or PVC |
| Control Device | 7 inck Touch Screen PLC programming unit and stepper motor |
Battery Sticking Machine Parts
| No. | Spare Parts | Brand |
| 1 | Air Cylinder | SMC,CKD |
| 2 | Solenoid Valve | SMC,Airtac |
| 3 | Linear Guide Rail | TPI |
| 4 | Electric Relay | OMRON |
| 5 | PLC | TouchWin |
| 6 | Inductorium | OMRON,SUNX |
| 7 | Stepper Motor | Lesev/Inovance |
| 8 | Servo Motor | Fuji/Panasonic |
| 9 | Support Base | NSK |
| 10 | Lead Screw | HIWIN |
Battery sticking machine details
Battery Sticking Machine Samples
Battery Sticking Machine Package
1 Standard exported package: Internal anticollision protection,
external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers'
requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will
change the damage part for you for free.
Battery Sticking Machine delivery time
15-20 days after confirming order,detail delivery date should be
decided according to production season and order quantity.
