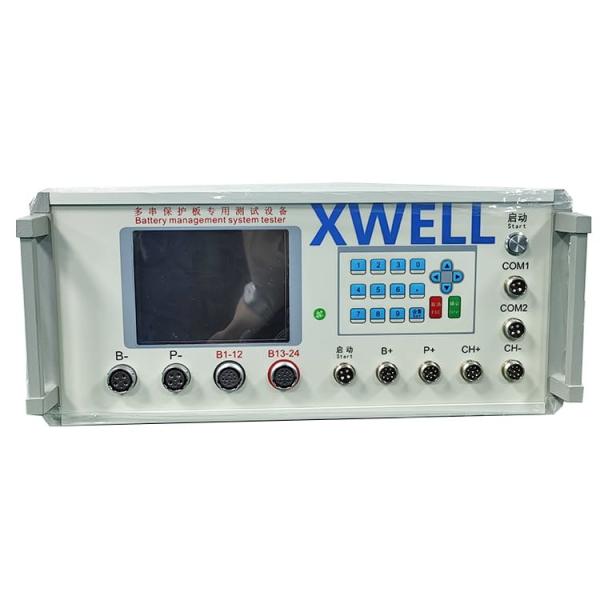

LiCoO3 Battery Pack Test Equipment For Mobile Phone Battery Performance Testing

Ask Lasest Price
Brand Name :	XWELL
Model Number :	PBTS24-120
Certification :	CE
Price :	USD 4000 - 6500 / pcs
Payment Terms :	T/T, Western Union, L/C
Supply Ability :	100 pcs per month
Delivery Time :	15-20 days

Add to Cart

Product Details
Company Profile

LiCoO3 Battery Pack Test Equipment For Mobile Phone Battery Performance Testing

1-24 Series Battery Pack Test Equipment Used For Mobile Phone Battery Performance Testing

Main performance:

Wait for test bit:It can support two panels at the same time to improve the test efficiency. Guide rail tightening:Fix the panel to prevent the position of each test panel from being different. Number of repeated tests:The test equipment can repeat the test to prevent the test fixture from not contacting well and improve the accuracy of the test. Test pass mark + test error mark: Support the marking of test qualified and test error in an independent position to improve the statistical rate after the board test is completed. Test panel statistics:It can monitor the test output and qualification rate of the equipment in real time.

Function introduction:

PBTS(A)The automatic protection board tester includes three parts: board loading machine, test automation platform and board receiving machine to realize the integrated automatic unmanned test process of automatic board loading, automatic test, marking after test and automatic board receiving

Specification


Parameter	Test Range	Accuracy
Number of Testing Series	1-6 series optional
Voltage Reference	Ternary Battery:3.8V Lithium Battery: 3V
Overcharge/Overdischarge Protection Voltage	0.5-5V	±5mV
Overcharge/Overdischarge Voltage	0.5-5V	±5mV
Overcharge Protection Current	0-50A	±0.1A
Over-discharge Protection Current	0-120A	±0.1A
Equilibrium Open Voltage	0.5-5V	±5mV
Equilibrium Real-time Current	0-200mA	±1mA
Overcurrent Protection Delay	0-15S	±1mS
Overcharge/Overdischarge Protection Delay	0-20S	±1mS
Single-section Self-consuming Power	0-500uA	±1uA
Internal Loop Resistance	0-500mΩ	±1mΩ
Short Circuit Protection (more than 6 series)	0-9999us	±1us
Supply Voltage	220VAC
Maximum Power	600W
Current Level	60-120A
Machine Size	420430220mm

Detail

LiCoO3 Battery Pack Test Equipment For Mobile Phone Battery Performance Testing
