8000A DC Precision Inverter Resistance Spot Welding Power Supply
Battery Pack Welding Machine
Product Description
MD-8000A series intermediate frequency welding machine controller
is a synchronous controller of spot welding machine with DSP chip
as the main control unit.
This welding power supply controller adopts an industrial standard
7-inch resistive touch control color display LCD screen, which is
carefully designed and manufactured with reference to the latest
welding concept and standard, and is continuously upgraded to
continuously improve the user experience to ensure that it is
comfortable in actual use.
Product Features
1. 32 groups of welding parameter storage: more flexible selection
and control can be performed during welding.
2. Preheating current, welding current and tempering current can be
set: which can effectively solve the problem of spatter during
welding and quenching of work piece after welding. The three
discharge pulses can be used individually or in any combination.
3. With current ramp up/down function: Using the ramp up/down
function can avoid spatter during welding and meet the welding
requirements of special materials.
4. Counting function: With counting function, the welding times can
be counted. Using this function, the work efficiency can be easily
understood.
5. With single point/continuous/seam welding function
6. Energy saving: Three-phase power input, intermediate frequency
1000Hz output after rectification and inverter, high working
frequency, small transformer loss, and obvious energy saving
effect.
7. Easy to install and use: Compared with the power frequency
transformer, the transformer used in the intermediate frequency
inverter welding machine is greatly reduced in volume, and the
overall equipment is light and easy to install and use.
8. Fault diagnosis and automatic protection function: During the
working process, if the controller detects an abnormal situation,
it will automatically turn off the output and give a friendly
prompt.
9. Communication and BCD code control function: It can be connected
to industrial computer, PLC and other equipment to realize remote
control automatic management and improve work efficiency.
10. Expandability: Using German Bosch technology, through the
combination of various expansion modules of the company, it can
form:
- a: Remote monitoring
- b: Real-time data feedback
- c: Programmable input and output
- d: Man-machine dialogue operation wireless connection
Product Application
The product is suitable for welding in 18650 26650 21700 32650
electric vehicle battery pack, electric bicycle battery pack,
automobile battery module, street lamp battery pack, balance car
battery pack, scooter battery pack, mobile power supply, starting
battery pack module, electric tool battery pack, energy storage
power supply battery pack and other fields. Automatic compensation
of welding pin, water cooling and heat dissipation of welding head,
very beautiful welding effect, elimination of false welding, self
current welding detection, high-end quality, durable, one-year
warranty, lifelong maintenance!
Product Specification
Product Name: 8000A DC Precision Inverter Resistance Spot Welding
Power Supply |
Brand name: XWELL | Input voltage: 3 phase 4 wire AC 380 V ± 10 % 50 Hz |
Model number: MD-8000A | Output voltage: Single phase PWM output 500 V |
Output current: Max short current 10 KA | Cooling: Air |
Valve power supply: DC 24 V ± 10 % Current < 150 Ma | Temperature: - 10 ℃ ~ 55 ℃ |
Relative humidity: < 80 % | Parmeter groups: 32 |
Size: 360mm × 230mm × 600mm | Weight: 25 kg |
Product Details

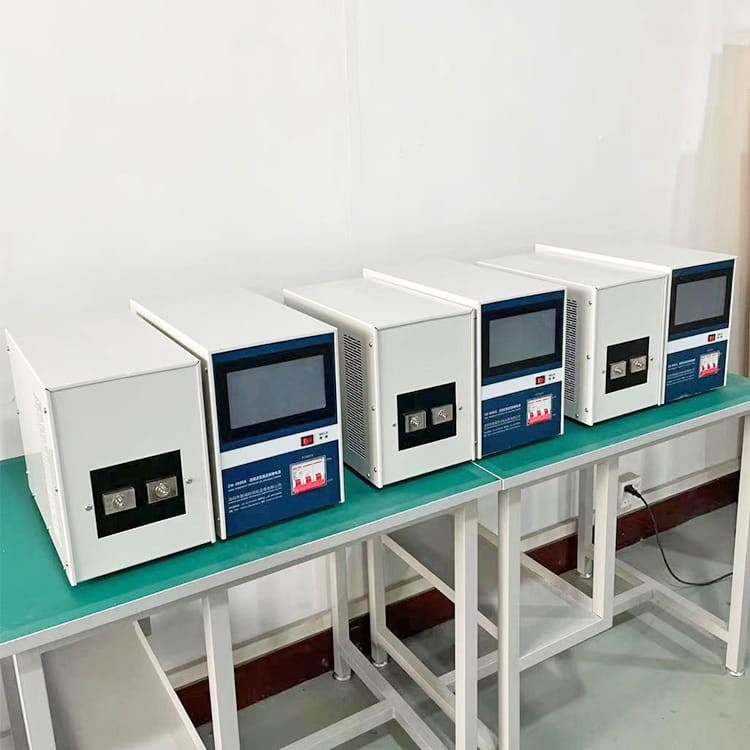

8000A Inverter DC power suppy optional
Battery Pack Welding Samples
Spot welding samples
The double side spot welding machine suitable for all types of
cylindrical cells pack and suitable for all shapes of packs. With
high quality 5000A/8000A spot welding power supply, it can weld
thickness from 0.1mm to 0.3mm. Welding spot is beautiful, firm and
good conductivity.
