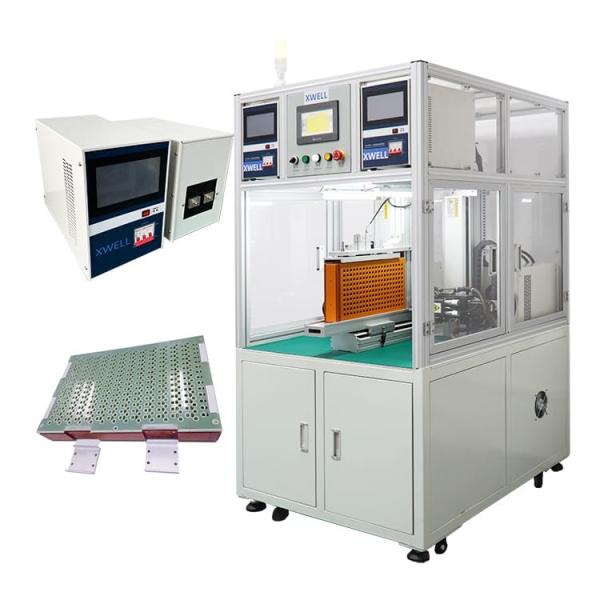

10000A Transistor Power Battery Pack Double Sides Spot Welding Machine 18650 22650 Welder Battery

Product Description

This machine is used for 18650,26650,32650 cylinder battery pack automatic spot welding, it can weld both side together with high speed and good effect.

The machine equiped with advanced 10000A transistor power supply.

1. Z1/Z2 axis stroke: 350mm(customizable)
2. Y-axis stroke: 500mm(customizable)
3. Spot welding speed: 0.5s/ point; An hour efficiency of 3,200-3,600 batteries.
4. Maximum speed of motor drive: 1000mm/s
5. Maximum load capacity : 200-400pcs(standard 18650 lithium battery)
6. Number of recordable file groups: 99
7. Operating system: embedded system + man - machine screen
8. Transmission mode: step + belt + imported precision linear guide rail (optional servo + screw)

Product Features

1. Support breakpoint start, support automatic start and manual start mode conversion.
2. It has a false spot welding and out of spot welding alarm function.
3. Programming is simple, and it supports any point programming and array programming. 99 groups can be saved programming files.
4. Welding needle replacement forecast reminder.
5. Own welding current monitoring system, real-time monitoring of welding current.

Product Advantages

1. Induce load voltage, control voltage by feedback, and realize high quality welding.
2. Preheat, Main Heat's power mode, preheating before welding, to ensure stable welding quality.
3. Keep the continuity of energy density, shorten the welding time, and reduce the deformation and color of base metal. (Welding time controlled in microseconds, continuous output mode)
4. Easy to change from low current to high current, suitable for precision welding.
5. The upper and lower limits of current can be set to simply judge whether the welding quality is good or not, which is suitable for welding automation platform.
6. The welding current rises with the time of electrification to ensure the welding effect.

Product Specification

Product Application

It is suitable for electric vehicle battery pack, automobile battery module, street lamp battery, balance car battery pack, scooter battery pack, mobile power supply, startup battery pack module, power tool battery pack, notebook battery pack, etc!

Product Operation

1. Setting the parameters of welding on the touch screen. (The same product only need to be set once)
2. Put the fixture with the battery pack on the quick clamping position.
3. Press the start button, automatically complete all welding actions.
4. MD-ADW sound to prompt operator replacement of new fixture (battery pack).
