Manual DC Power Gantry Spot Welder For Battery Pack Assembly
Product Description
MD-MND5000 equipped with advanced 220V AC or 380V AC welding power
supply, Suitable for battery pack spot welding and assembly in the
factory.
This kind battery spot welder is mainly used for 18650, 26650,
32650 cylindrical battery, NI-MH battery(nickel-metal hydride
battery), Nickel cadmium battery and EV Lithium battery pack Ni tab
welding.
Product Features
l. DC output.Heat concentration,the heat efficiency is increased,
the welding process is stable, the welding quality is improved, and
the electrode life is prolonged .
2. High speed and high precision microprocessor (MCU) control, to
provide highly stable repetitive welding, with current monitoring
function.
3. LCD display.
4. High speed welding: a quick start and high polarity switching
reduced the temperature effect so that make the welding surface
clean and beautiful.
5. Polarity switching: suppression of asymmetrical result makes the
two points welding strength uniform and extends the service life of
the electrode.
6. The imported IBGT module full control the discharge,welding
quality and welding speed , non ordinary welding machine can
compared with it.
7. Double pulse can reduce welding spatter, effectively improve the
quality of welding.
8. Data storage using EEPROM, no battery life issues, always
returned to the previous use of welding procedures when you
starting up.
9. Welding voltage locking technology to prevent net voltage
fluctuations to affect the welding current."
Product Specification
| Model No. | MD-MND5000 |
| Energy storage capacitor | 6600UF |
| Max output power of transformer | 18 KVA |
| Output max short circuit current | 5000A / 8000A |
| Prewelding voltage | 80.0V -- 330V adjustable, accuracy 0.5V |
| Welding voltage | 80.0V -- 330V adjustable, accuracy 0.5V |
| Welding time | 1.0ms -- 20.0ms adjustable, accuracy: 0.1ms |
| Applicable scope | Max thickness of parallel welding: 0.03mm~0.15mm
Max thickness of upper and lower butt welding: 0.1mm + 0.3mm |
| Machine weight | 60KG |
| Dimensions | 800L x 600W x 1200H (unit: mm) |
| Input power supply | single-phase AC220V/50Hz |
| Input current | < 5A |
| Input power | < 4000W |
Product Application
It is suitable for electric vehicle battery pack, automobile
battery module, street lamp battery, balance car battery pack,
scooter battery pack, mobile power supply, startup battery pack
module, power tool battery pack, notebook battery pack, etc!

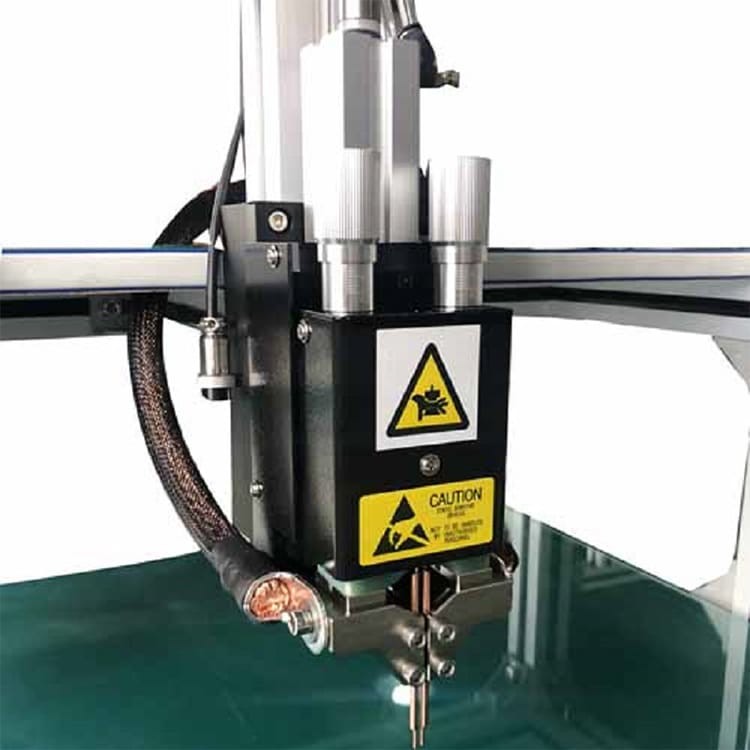

Detail
