0.05 - 0.20 mm Pneumatic Manual AC Pulse18650 Battery Pack Spot Welder

Product Description

Dual pulse welding:
This machine mainly used for 18650 battery pack tab welding, it can weld Nickel tab thickness from 0.05-0.20mm. You can also choose our other model according to your tab Thickness.
Dual pulse welding, the first pulse is used to the workpiece surface coating and oxide removal, and make the contact place in welding electrode produce slight deformation, improve the effective contact area, the second pulse is used to ontology metal welding, can effectively promote the quality of welding and reducing welding spatter.

Control model:
1. CPU control, precision pulse energy Adjustable(0-99.9%), preloading time and the holding time Adjustable(0-2.55s)
2. Two different ways of welding, (1) ordinary ; (2) continuous.
3. The built-in counter, all solder joints can be calculated
4. Data storage block using EEPROM, no battery life problem, every time you boot, go back to Last using the welding procedure.

Product Features

1. XWELL modes of constant instruction and constant current output, welding can be more flexible selection and control.
2. The preheating current, welding current and tempering current can be set. The three discharge pulses can be used alone or in any combination.
3. It has the function of slow rise/slow fall of current: the function of slow rise/slow fall can avoid splashing during welding and meet the welding requirements of special materials.
4. Counting function: With counting function, the number of welds can be counted. With this function, the working efficiency can be easily understood.
5. It has the functions of fault diagnosis and alarm, such as current malfunction, overshoot of monitoring value, network voltage following, etc.
6. Energy-saving: three-phase power supply input, medium frequency 4000Hz output after rectification and inversion, high working frequency, low transformer loss, obvious energy-saving effect.
7. Fault diagnosis and automatic protection function: In the working process, if the controller detects abnormal situation, it will automatically turn off the output and friendly prompt.
8. Communication and BCD code control function: It can be connected with industrial computer, PLC and other equipment to realize remote control automation management and provide work efficiency.

Product Specification

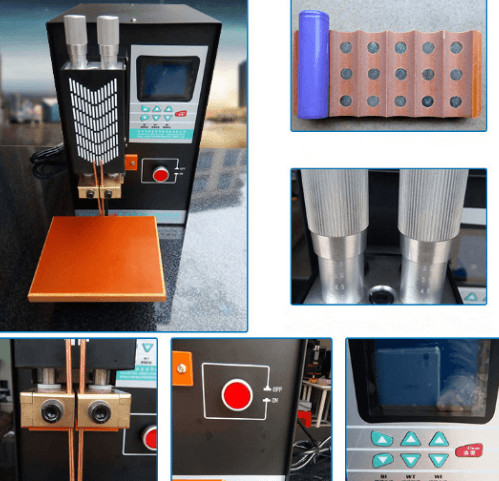

Battery spot welding machine details

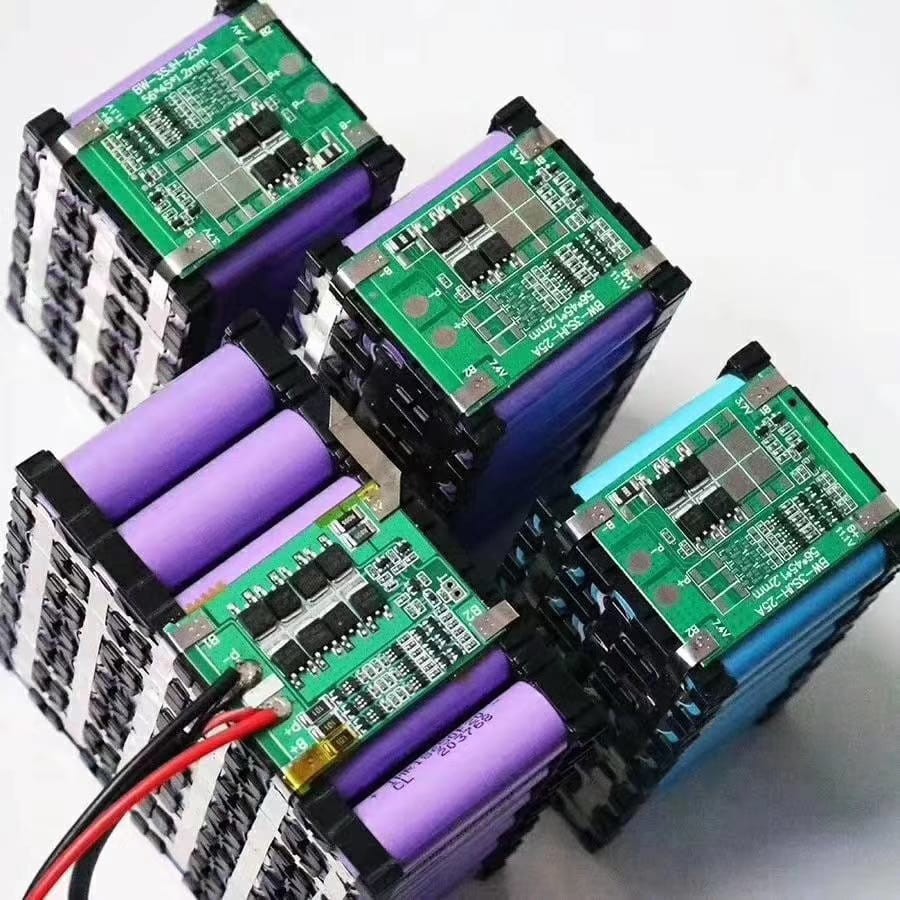

Battery welding samples

Packing details
