5000A/8000A Inverter DC power suppy optional

Description

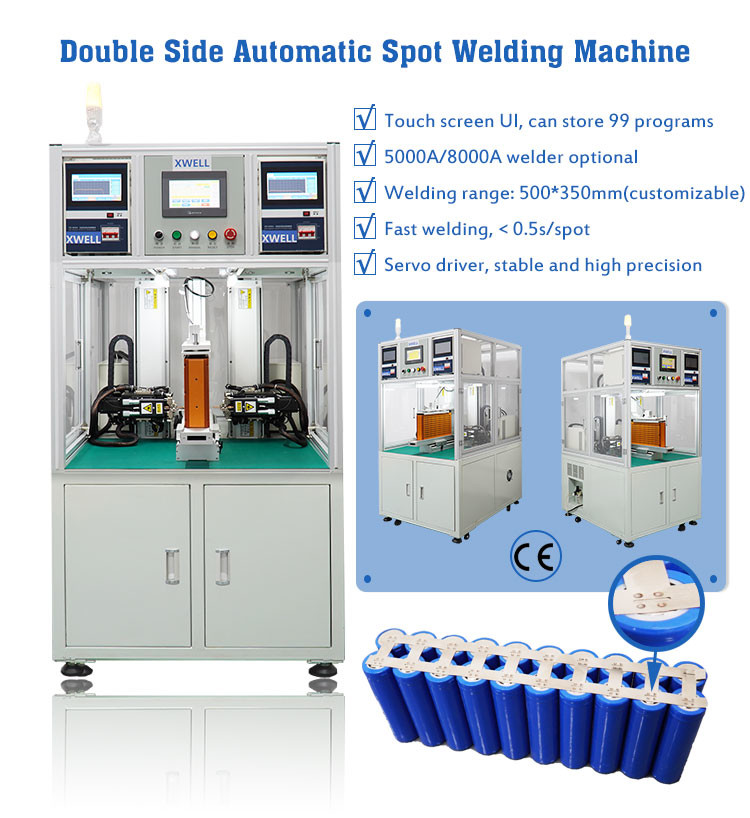

The MD-ADW Double Side Automatic Battery Pack Spot Welding Machinew is a general platform of automatic processing technology based on microcomputer, suitable battery pack spot welding and assembly in the factory.
Compared with manual spot welding, the efficiency and accuracy of welding have been greatly improved. Humanized design makes the operation and debugging very easy and convenient. Design of components built-in makes appearance more concise.
MD-ADW is double welder design, the positive and negative pole of the battery can be welded at the same time, the efficiency is improved by 2 times compared to the single side welding machine.

Features

1) Suitable for all cylindrical cells, like 18650, 21700, 26650, 32650 … battery pack welding; widely application area, like E-bike, scooter, and electro mobile battery pack welding.
2) 5000A/8000A inverter spot welding power supply (optional), high quality welding effect.
3) Servo motor driving, fast, stable welding.
4) Support breakpoint start, automatic start, and manual start.
5) Cold solder joint and sealing off alarm.
6) Easy program, support matrix, array and point program, can welding for any shape and store 99 group parameters.
7) Welding needle abrasion alarm.
8) Build-in welding current monitor, can display real time welding current.
9) Real-time welding effect monitoring, warning for NG welding spot.

Configuration

Stucture

Parameters

Machine details

Samples

Spot welding samples
The double side spot welding machine suitable for all types of cylindrical cells pack and suitable for all shapes of packs. With high quality 5000A/8000A spot welding power supply, it can weld thickness from 0.1mm to 0.3mm. Welding spot is beautiful, firm and good conductivity.

Our project

India project
This project is localed in Inda, Gurgaon. The client was founded in 1994, have more than 400 staffs and 10000+ square factory.

They bought 2 full of battery pack assembly line from us, includes sorting machine, welding machine, sticking machine, charge and discharge machine…
We have sent 3 engineers to client site for machine installation and training in year of 2019. The training taked about one week. After the training, the client engineers are learned how to operation the machines in a smooth and high efficiency way. They made high-quality products by our machines.
We had a nice journey in India.

GUANGDONG XWELL TECHNOLOGY CO., LTD. is a high-tech enterprise specializing in intelligent equipment design, production and sales, providing mechanical engineering technology design and consulting services, electronic engineering design and consulting services. XWELL's core team was established in 2010 and officially established in June 2014. XWELL relies on South China University of Technology(SCUT), and the core team is composed of several doctors and masters from SCUT.

XWELL's main products are battery production line machines, such as spot welding machine, battery sorting machine, battery sticking machine, battery capacity grading machine, battery charge and discharge aging machine, battery general testing machine, and so on. The main application areas are new energy lithium batteries, automobiles and other industries, Especially in the fields of new energy, automotive wiring welding and other fields, XWELL has accumulated rich engineering experience and mastered a full set of core technologies, and can provide customers with a complete set of services from technology to equipment, helping customers to establish efficient and reliable production lines in the shortest time .
