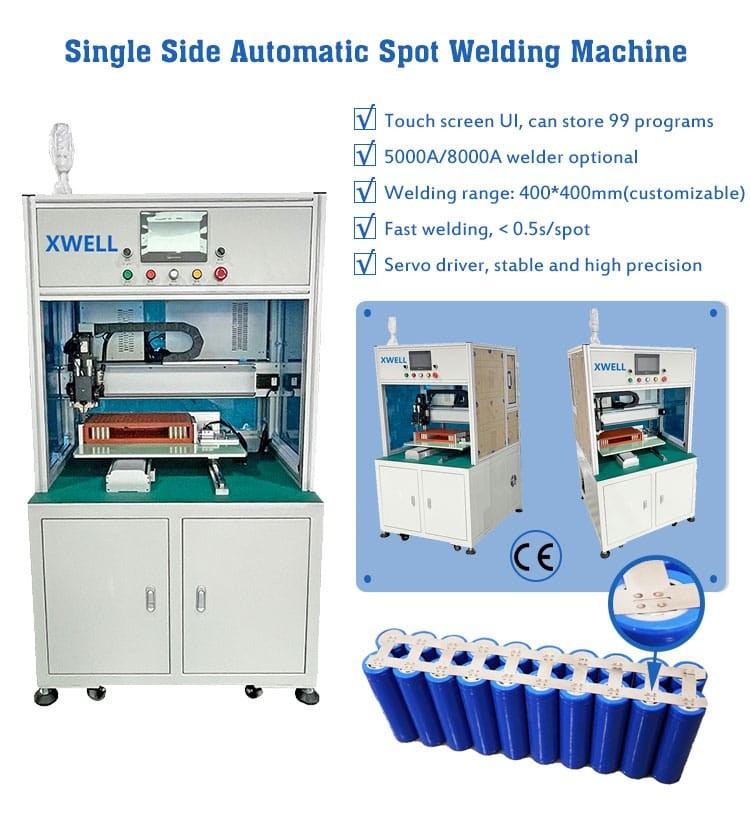

Automatic Single Side DC power supply Battery Pack welding Machine
5000A/8000A Inverter DC power suppy optional
Product Description

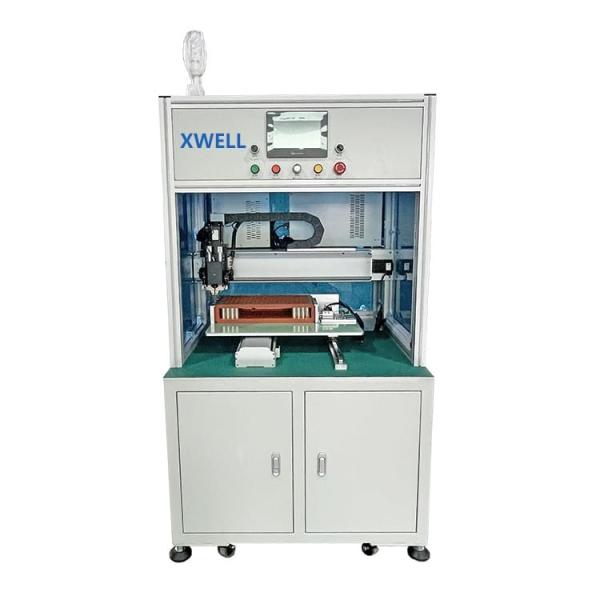

The MD-ASW Single Side Automatic Battery Pack Spot Welding Machinew
is a general platform of automatic processing technology based on
microcomputer, suitable battery pack spot welding and assembly in
the factory.
Compared with manual spot welding, the efficiency and accuracy of
welding have been greatly improved. Humanized design makes the
operation and debugging very easy and convenient. Design of
components built-in makes appearance more concise.
Product Features
1. High speed and high precision micro processor (MCU) control,
provide highly stable repeat welding.
2. High speed welding: quick start with high speed polarity switch
reduces the temperature effect so that keep the welding surface
clean and beauty.
3. Can store 99 groups of files, which is easy to call and does not
need complicated line change and machine adjustment process.
4. DC output: welding current is pulsating direct current (waveness
is small),No AC zero discontinuous heating workpiece shortcomings,
heat concentration and improve the welding thermal efficiency, it
is especially suitable for welding the non-ferrous metal materials
and some difficult welding materials, welding process is stable,
welding quality improved significantly. At the same time, the
electrode life get extended.
5. Fast response. Power on time control cycle is 1 ms , 20 times
than 20ms of common AC battery welder
6. The core accessories are imported from Japan and Taiwan, and the
accuracy, stability and service life of the whole machine are more
than 1 times higher than those of other domestic accessories.
7. The automatic alarm and stop function of welding can continue to
spot weld after clearing the fault.
8. The machine has the function of power-off or breakpoint
continuation, which can manually adjust the position for spot
welding.
9. Welding machine can be selected and matched, and different
welding machines can be selected according to different
requirements of customers to effectively meet customer needs.
10. Three file programming modes, manual input, array, CAD pattern
import, simple and fast response to various complex program
editing.
Product Advantages
1. Support breakpoint start, support automatic start and manual
start mode conversion.
2. It has a false spot welding and out of spot welding alarm
function.
3. Programming is simple, and it supports any point programming and
array programming. 99 groups can be saved programming files.
4. Welding needle replacement forecast reminder.
5. Own welding current monitoring system, real-time monitoring of
welding current.
Product Application
With the customized fixture jig, the spot welding machine can weld
18650, 26650, 32650 and other cylindrical battery pack, can also be
customized for a variety of cylindrical battery, square battery,
button battery and etc.

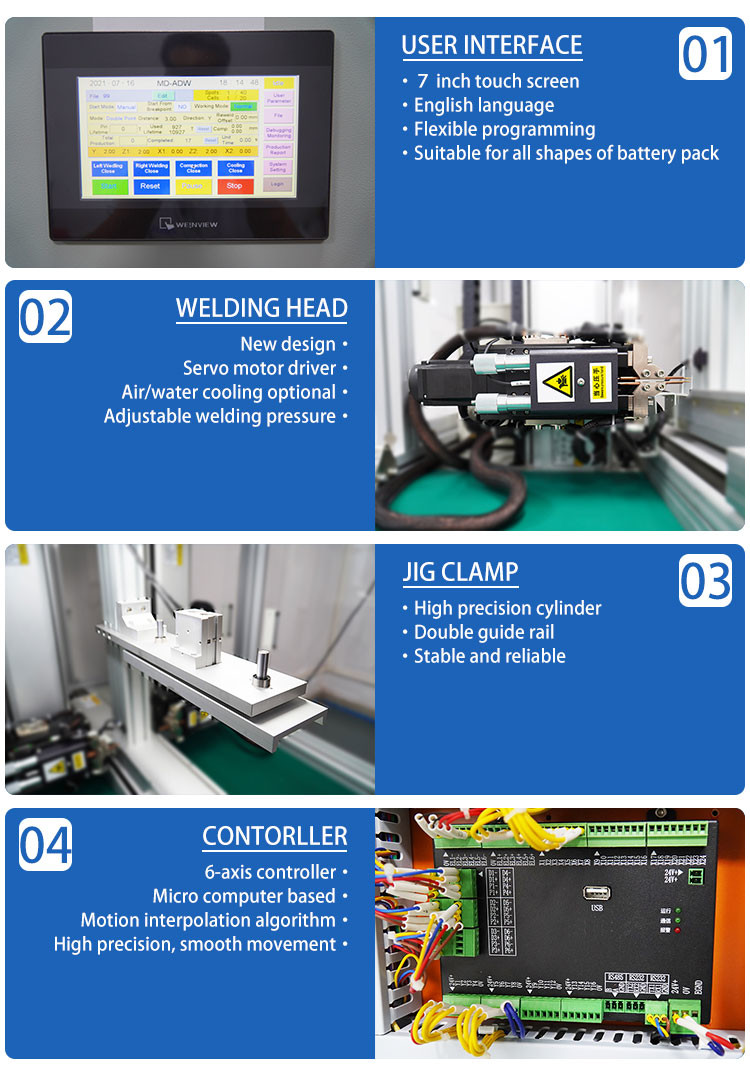

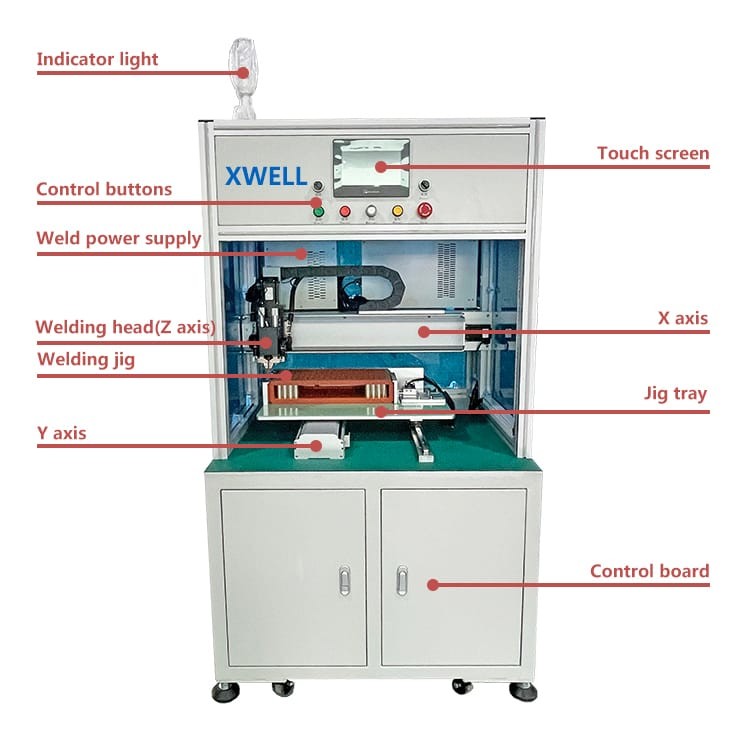

Product Stucture
Product Specification
| Item | Parameter |
|---|
| Welder | 5000A/8000A inverter spot welding power supply(optional) |
| Welding head quantity | 1 |
| Welding range | 400*400mm |
| Cell type | 18650, 21700, 32650… all types of cylinderial cells |
| Total cell support | 300-600 pcs |
| Welding speed | Max 0.35s/spot, 2800 pcs/h |
| Cell link material | Nickel, Nickel-Plated Steel |
| Welding max thickness | 0.3mm |
| Max parameter groups | 99 groups |
| Operation system | Microcomputer and touch screen user interface |
| Driver mode | Motro and precision guide rail |
| Cooling method | By air or water (optional) |
| Air pressure | 0.4-0.6 Mpa |
| Power voltage | Single phase 220V/Three phase 380V |
| Power | 8000 W |
| Size | 900L*900W*1930Hmm |
| Weight | 300kg |
Product Details
Battery Pack Welding Samples
Spot welding samples
The double side spot welding machine suitable for all types of
cylindrical cells pack and suitable for all shapes of packs. With
high quality 5000A/8000A spot welding power supply, it can weld
thickness from 0.1mm to 0.3mm. Welding spot is beautiful, firm and
good conductivity.
