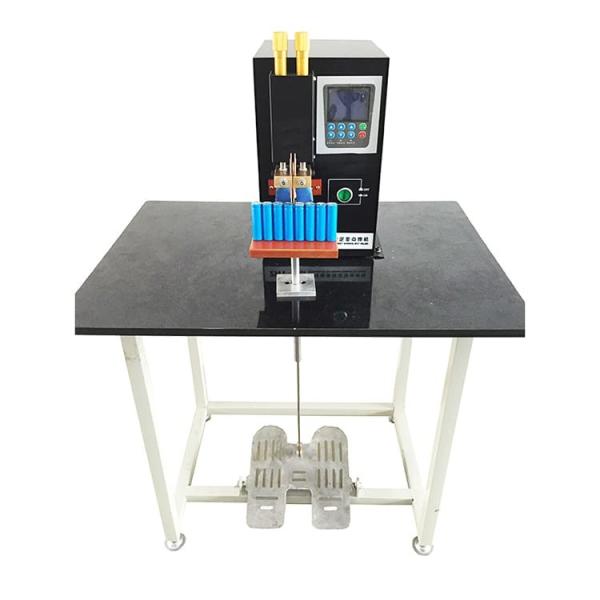

Pedal Manual Two Electrode Battery Pack Welding Machine

Product Description

The MD-MPAC Manual Battery Spot Welding Machine is a general spot welding machine based on microcomputer, suitable battery pack spot welding and assembly in the school, university, laboratory and factory.

This machine equipped with advanced 220V AC welding power supply, and drived by pedal, no need compressed air, easy for operation.

This type of AC spot welder utilizes the general mains supply to lower the voltage and increase the electric current. Such kind of low voltage but large current will be transmitted from the electrode to the linked point of two work pieces. On the linkage, due to the resistance of work piece, high temperature will occur so the metal will therefore generates high heat to make the work pieces in molten condition. Thus, the purpose of welding the two work pieces is achieved.

Product Features

1. Beautiful appearance and light weight.
2. The welding spot is beautiful, the spark is small, no blackening, and the welding current is stable, and the welding spot size is uniform.
3. It completely overcomes the phenomenon of low voltage and water leakage after spot welding of lithium batteries. It is the ideal equipment for you to produce assembled batteries.
4. Microcomputerization of various parameters, using LCD liquid crystal display, key surface adjustment, accurate, intuitive and convenient.

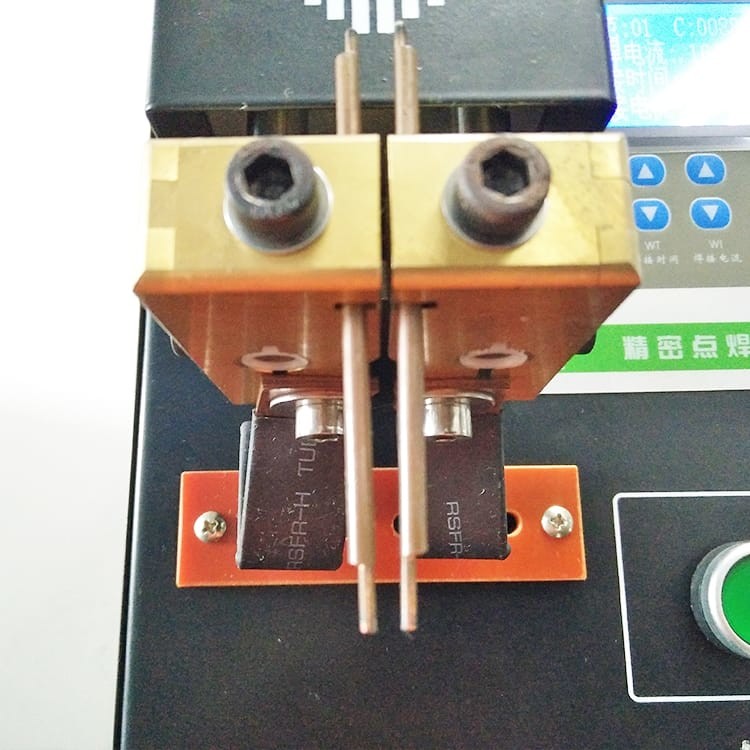

5. The pressure of the two welding pins is adjusted independently, and the adjustment is convenient to ensure the welding pressure is stable and reliable.

Product Advantages

1.High speed and high precision microprocessor (MCU) control, to provide highly stable repetitive welding, with current monitoring function.
2.High speed welding: a quick start and high polarity switching reduced the temperature effect so that make the welding surface clean and beautiful.
3.Double pulse can reduce welding spatter, effectively improve the quality of welding.
4.Welding voltage locking technology to prevent net voltage fluctuations to affect the welding current.

Product Application

This machine can assembling batteries like 18650, 26650, 21700... and Nickel or Nickel-Plated Steel strips. Which support battery pack like E-Bike, Scooter, electromobile ...

Product Specification

Product Details

Battery Pack Welding Samples

Spot welding samples
The double side spot welding machine suitable for all types of cylindrical cells pack and suitable for all shapes of packs. With high quality 5000A/8000A spot welding power supply, it can weld thickness from 0.1mm to 0.3mm. Welding spot is beautiful, firm and good conductivity.
