    40 Mm Ultrasonic Wire Harness Welding Machine Metal Spot Welder

    Ask Lasest Price
    Brand Name : XWELL
    Model Number : XW-M2040
    Certification : CE
    Price : USD 10000/pcs
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 100 pcs per month
    Delivery Time : 15-20 days
    • Product Details
    • Company Profile

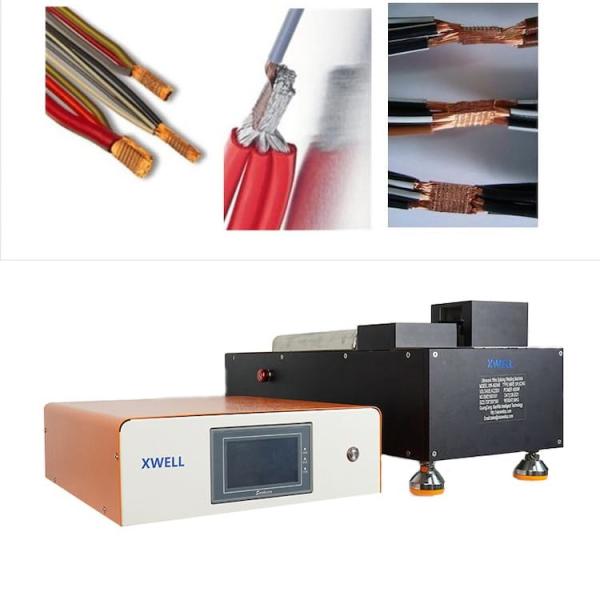

    40 Mm Ultrasonic Wire Harness Welding Machine Metal Spot Welder

    Ultrasonic Metal Spot Welder For Electrical Wire Splicing And Joint Ultrasonic Battery Welder


    Ultrasonic Wire Splicing Machine is the future-oriented method for wire and terminal applications. The welding machine is a new industrial ultrasonic wire splice solution. It welds stranded, braided and magnet wires to create a wire splice, wire crimp or a battery cable splice. The connections it produces are used in the automotive, aircraft, computer and consumer electronics industries, as well as other process control and industrial instrument applications. It is most commonly used in the production of wire harnesses. Compared with crimping or resistance welding, this process offers numerous advantages. Besides the excellent electrical properties of the joint and the extremely low energy consumption, this method is particularly characterized by comprehensive process control and process data management.

    Features
    * Automatic splice width adjustment from 0.5 to 40 mm (depending upon power level)
    * Microcomputer control, electronic tuning frequency.
    * Power adjustable, operate simple, and run stable and reliable.
    * LED display keeps the machine visible in operation and regulation.
    * Imported components, good performance in energy output.
    * Overcurrent protection and soft start can keep the machine safe.
    * Easy installation and operation.
    * Not only similar metal, but also dissimilar all can welding together. It can weld metal slice or sleave to thick metal.Usually used for transister or IC's leads welding..
    Specifications
    No
    Item
    Parameter
    1
    Power
    4000W
    2
    Welding time
    0.1-1.5S
    3
    Welding material
    Copper / Aluminium

    4

    Welding mas size
    50mm2

    5

    Cooling
    By Fan
    6
    Air pressure
    0.3-0.6 Mpa
    7
    Power supply
    Single phase 220V
    8
    Size(L*W*H)
    650*300*300mm
    9
    Weight
    70kg
