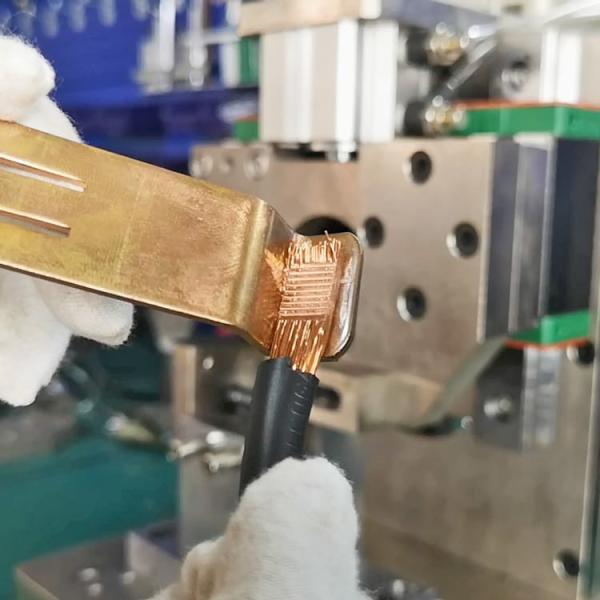

20KHZ 6000W Ultrasonic Battery Welder Terminal And Wire Welding Together

Product Description

Ultrasonic metal welding machine divided into single point welding and multi point welding,welding of non ferromagnetic metal materials by high precision energy generated by high frequency mechanical vibration. During welding, one of the workpieces is fixed, the other one is transmitted to two metal surfaces to be welded by high frequency vibration wave at the frequency of 20/35kH, and the pressure is applied on the workpiece. Friction between two metal surfaces to form a fusion between the molecular layer, thus achieving the effect of welding. Its advantages are fast, energy-saving, high fusion strength, good electrical conductivity, no spark, close to cold processing. The entire welding process can be precisely Control, at the same time do not generate excess heat on the metal surface, strong welding fastness. The disadvantage is that the welded metal should not be too thick (usually less than or equal to 5mm)

Product Features

1. The equipment drives metal friction, cylinder pressure, welding time is very short, welding surface does not produce rough surface defects

2. The equipment is easy to automate, saving the cost of welding head, convenient operation and fast welding speed

3. There is no need to add welding auxiliary material for welding of different metals.

4. The deformation measurement is small and does not produce large amount of heat, which causes the material to deform.

5. There is no need to treat surfaces, such as oily surface, paint can also be welded

6. Without external heating, welding uniform and effective, welding consistency is good, with automatic alarm function

7. Extraordinary Welding suitable for electronic industry, resistivity is almost zero

Product Advantages

1. Copper tape and copper foil ultrasonic welding machine welding effect is superior, welding firm, not virtual welding, vibration powder, no burning diaphragm, not hot insulation glue, not vibration crack pole earpiece;

2. Copper strip and copper foil ultrasonic welding machine are mixed with each other, and after welding, the metal parts are broken and torn, and the metal parts on one side and the other side infiltrate each other, and the electrode pieces are more than 80% on the residual welding surface of the polar ear;

3. Copper strip and copper foil ultrasonic welding machine after welding the polar ear and pole surface flat, no fold, back no protruding burrs, solder joint full clear, solid and reliable, solder joint position does not break

4. Copper strip and copper foil ultrasonic welding machine after welding good electrical conductivity, resistance coefficient is very low or near zero.

5. Copper tape and copper foil ultrasonic welding machine welding time is short, do not need any flux, gas, solder.

Product Specification

Product Application

• Aluminum tape and aluminum cover welding;
• Nickel tape and copper foil welding (multi-point);
• Aluminum strip and aluminum foil welding (strip);
• Aluminum strip and aluminum foil welding (strip);
• Aluminum strip and aluminum foil welding (multi-point);
• Keywords nickel tape and aluminum strip; nickel strip and copper foil;
• Nickel tape and copper foil, aluminum strip and aluminum foil multilayer;
• Aluminum shell and aluminum nickel composite tape welding;
• Nickel strip and copper foil multilayer;
• Aluminum strip and aluminum foil multilayer;
• Copper tube seal tail;
• Automobile wire harness;
• Battery polar ear;
• Motor terminal and so on welding.

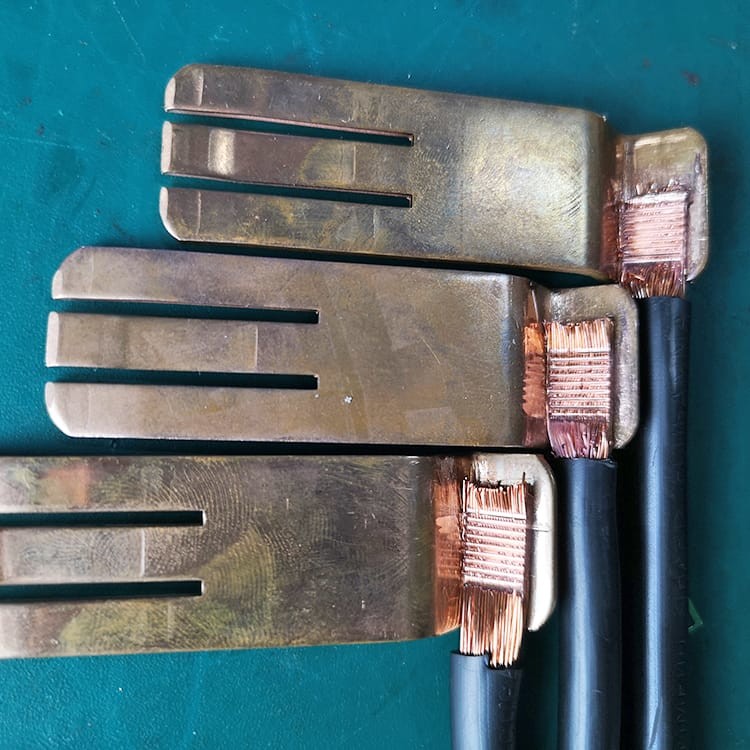

Samples

GUANGDONG XWELL TECHNOLOGY CO., LTD. is a high-tech enterprise specializing in intelligent equipment design, production and sales, providing mechanical engineering technology design and consulting services, electronic engineering design and consulting services. XWELL's core team was established in 2010 and officially established in June 2014. XWELL relies on South China University of Technology(SCUT), and the core team is composed of several doctors and masters from SCUT.

XWELL's main products are battery production line machines, such as spot welding machine, battery sorting machine, battery sticking machine, battery capacity grading machine, battery charge and discharge aging machine, battery general testing machine, and so on. The main application areas are new energy lithium batteries, automobiles and other industries, Especially in the fields of new energy, automotive wiring welding and other fields, XWELL has accumulated rich engineering experience and mastered a full set of core technologies, and can provide customers with a complete set of services from technology to equipment, helping customers to establish efficient and reliable production lines in the shortest time .
