Automatic 1500W 2000W Prismatic Battery Pack Laser Welder Lithium
Polymer Battery Laser Welding Machine For Pouch Cell
Introduction
The fiber continuous welding machine is a high-end, new type of
welding method.
It is generally composed of a "welding mainframe" and a "welding
workbench".
The laser beam is coupled to the optical fiber, and after being
transmitted over a long distance,
it is processed into parallel light. Focusing on the workpiece to
perform continuous welding,
the welding effect is stronger due to the continuity of the light
output, and the weld seam is
more fine and beautiful. According to the different needs of
different industries, the equipment
can meet the needs of users in different industries according to
the matching shape and workbench on the production site and the
automation work.
Feature
1. Output fiber laser power stability, electro-optical conversion
rate up to 30%, its conversion rate is 10 times of YAG.
2. Beam quality is excellent, non-Gaussian light, multi-module
fiber transmission.
3. Maintenance-free operation.
4. Low cost of use, almost no consumptive material, daily
maintenance-free,reducing the cost of debugging when production
line stops.
5. Long lifetime, high precision, pump source lifetime more than
100,000 hours.
Application
Welding of automobile parts, hydraulic lever, gasoline filter,
automobile tail gas sensor, solenoid valve and start motor stator,
and seal welding lithium battery (mobile phone battery and energy
battery), metallurgy (welding of silicon steel plate), military
industry sensor, motor blade welding electronic components, welding
of (relay) electric apparatus industry, silicon steel plate, air
conditioner motor rotor, leakage protector. Widely used in
aviation, machinery, electronics, communication, energy, chemical,
automobile manufacture.
Parameter
| Model No. | XW-1000W |
| Laser Power | 1000W |
| Laser Source | Fiber 1080nm |
| Optical Connector | QBH |
| Modulation Frequency | <10 k Hz |
| Max Welding Depth | ≤3mm |
| Adjusting rang of light spot | 0.2 - 2.0mm |
| Cooling System | 1HP water chiller |
| Power Supply | 220V±5%, 50Hz |
| Power Consumption | 5Kw |
| Fiber Delivery Length | 10 meters |
| Observing System | CCD and LCD display, with red pointer |
| Control System | Industrial PC with CNC 2000 or LC5 |
| 3-axis Travel Distance | X=300mm,Y=200mm,Z=300mm (all electrical, precision ±0.02mm) |
|
| Data Memorization | 100 groups |
| Illumination | LED circle lamps |
| Language Display | English & Chinese |
| Shield Gas Supply | 1line, argon |
| Running Environment | Tem 5°C-40°C, Hum 5%-85% |

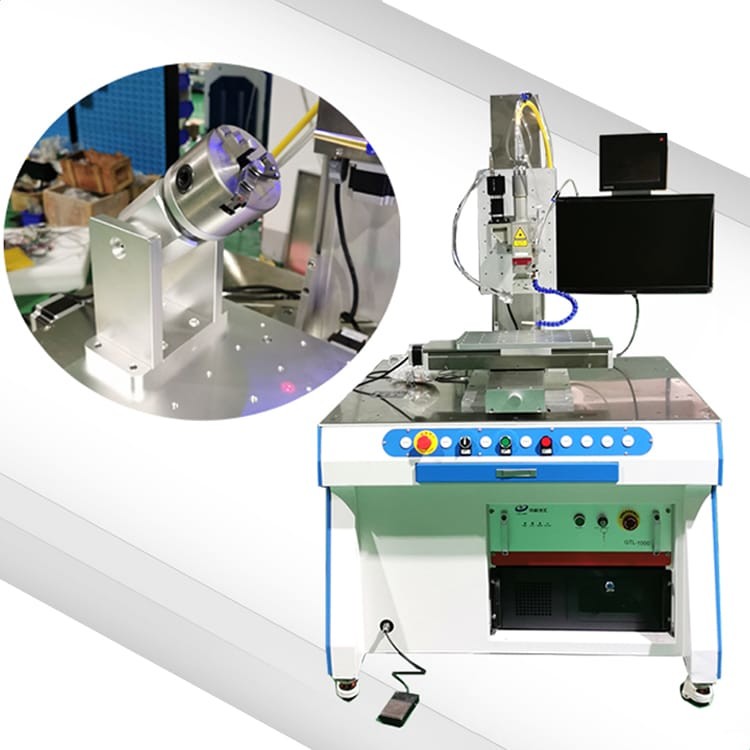

Optional 4th rotation axis
Computer UI software
