    Galvanometer Continuous Fiber Laser Welding Machine 1064 Nm Wavelength

    Ask Lasest Price
    Brand Name : XWELL
    Model Number : XW-C1000W
    Certification : CE
    Price : USD 10000 - 22000 / pcs
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 100 pcs per month
    Delivery Time : 15-20 days
    • Product Details
    • Company Profile

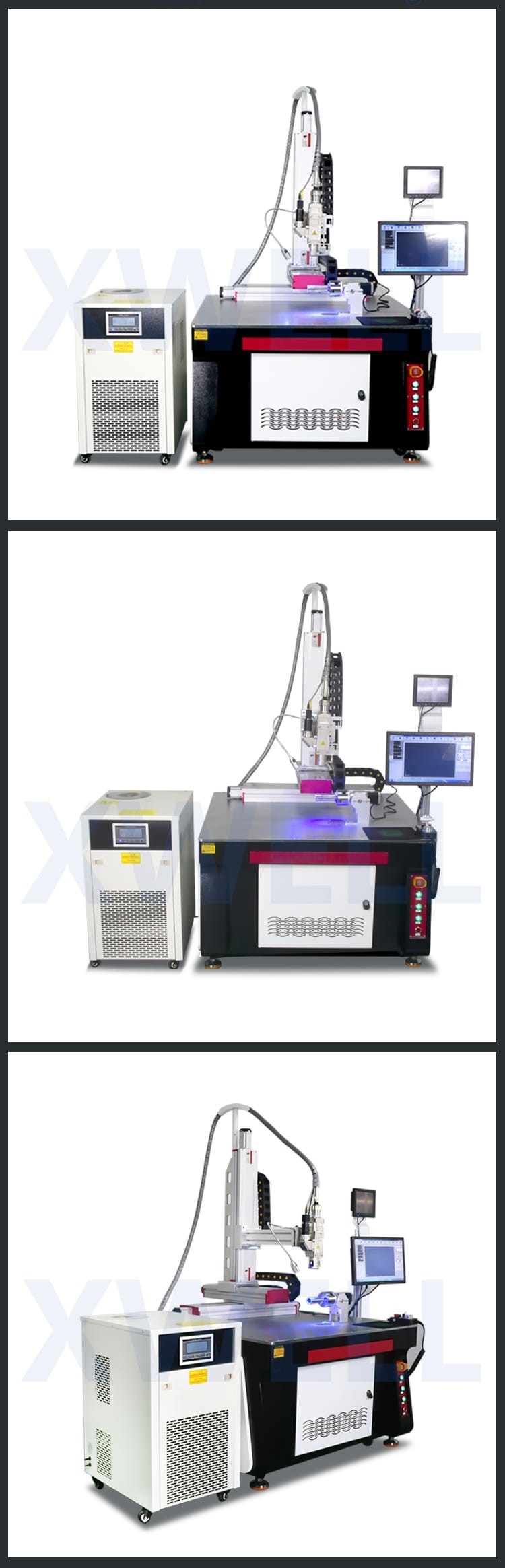

    Galvanometer Continuous Fiber Laser Welding Machine 1064 Nm Wavelength

    Fiber Laser Welding Machine Lithium Battery Welding Galvanometer Laser Welding Machine


    Introduction:


    The welding machine is used the galvanometer as the control system of the laser beam. Oscillated scanning lens is used instead of moving the workpiece or working table, less time welding in the scanning range. The greater distance between the points, more number of marking points on the workpiece and give more advantages. The efficiency is 4-10 times more than ordinary laser welding; Using high-precision optical system to ensure the consistency of each welding spot; Computer controlled systems and use windows based software which easier to operate.


    Working scope:


    Suitable for welding connecting pieces of new energy lithium battery packs.
    Can weld aluminum-aluminum, aluminum-copper, copper-copper and other materials.
    Suitable for welding connecting pieces, tabs, poles, explosion-proof valves, bus bars, etc.


    Features:


    1. Using the British imported ceramic condenser, high corrosion resistance, high temperature resistance, for 8-10 years life.
    2. HD CCD monitoring system, the welding condition is clearly visible to avoid outflow of defective products.
    3. The energy distribution of welding spot is uniform, with the best spot needed for welding characteristics.
    4. Servo drive workbench speed is 2-3 times of 0.02mm, escort for precision machining.
    5. Laser welding can be used for spot welding, butt welding, overlay welding and sealing welding of thin-walled materials and precision parts.
    6. It can customize special automatic chemical fixture to realize mass production of products.


    Laser machine specifications


    1
    Laser power
    500W 1000W 1500W 2000W 3000W
    2
    Laser wavelength
    1064 nm
    3
    Monopulse Power
    90j-150j
    4
    Depth of laser welding
    0.1-2.0 mm
    5
    Power consumption
    ≤13KW
    6
    Electricity demand
    220V ± 10%/50Hz/30A
    7
    Pulse width
    0.3-20ms
    8
    Laser welding frequency
    1-100Hz
    9
    Adjustable spot size range
    0.2-2 mm
    10
    Repeatability
    ± 0.01 mm
