High Precision Manual DC Output Spot Welding Machine For Solar
Light Battery
Product Description
High frequency inverter control of 4kHz is conducive to high-speed
and high-quality welding control.
The two-stage power on function is adopted to overcome the coating
problem of welding workpiece and adapt to various process
requirements.
It has the function of slow current rise and slow current drop,
which is conducive to inhibiting the spatter phenomenon in welding
The switching of 8 kinds of welding specifications is conducive to
the rapid transformation of welding parameters according to
different welding requirements.
A variety of welding information and welding parameters are
displayed in the blue light lcd20x4 line LCD, which is convenient
for the confirmation of welding results.
It has the function of two-stage current monitoring and comparison,
alarm for abnormal welding, compare the welding results with the
parameters of the equipment, and judge whether it exceeds the set
value, then judge whether the output is normal (go) or abnormal
(GN) display and signal.
Product Features
1. DC output.Heat concentration,the heat efficiency is increased,
the welding process is stable, the welding quality is improved, and
the electrode life is prolonged .
2. High speed and high precision microprocessor (MCU) control, to
provide highly stable repetitive welding, with current monitoring
function.
3. LCD display.
4. High speed welding: a quick start and high polarity switching
reduced the temperature effect so that make the welding surface
clean and beautiful.
5. Polarity switching: suppression of asymmetrical result makes the
two points welding strength uniform and extends the service life of
the electrode.
6. The imported IBGT module full control the discharge,welding
quality and welding speed , non ordinary welding machine can
compared with it.
7. Double pulse can reduce welding spatter, effectively improve the
quality of welding.
8. Data storage using EEPROM, no battery life issues, always
returned to the previous use of welding procedures when you
starting up.
9. Welding voltage locking technology to prevent net voltage
fluctuations to affect the welding current.
Product Specification
| Model | MD-MND5000 |
| Transformer maximum output power | 25KVA |
| Secondary side maximum welding current | 5000A |
| DC energy storage capacity | 6600uF |
| Welding pulse number | 9 sets of pulses |
| Welding voltage | 5v-330v adjustable, precision 0.5V |
| Welding time | 0.1ms-5.0ms adjustable, precision 0.1ms |
| Welding mode | Normal / continuous |
| Input frequency | AC 220V±10% 50Hz±2Hz |

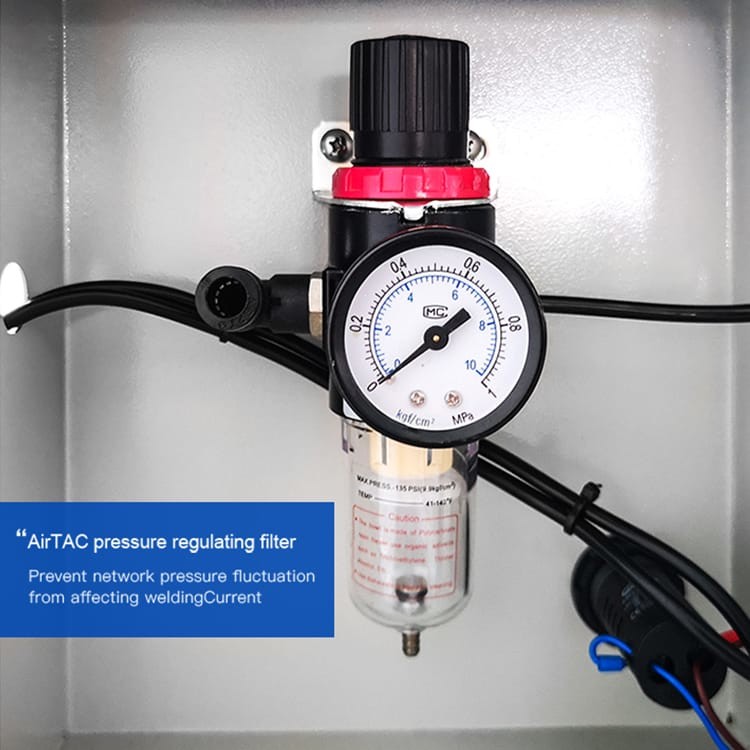

| Maximum working pressure | 5KG |
| Weight | 60KG |
| Weld thickness | Maximum thickness of parallel welding:0.03mm~0.5mm ,Multiple
welding sheet |
Product Application
With the corresponding fixture, the machine can weld 18650,
21700,26650, 32650,32700 and other cylindrical batteries, can also
be customized for a variety of cylindrical battery, square battery,
button battery and etc.
Detail
