Manual Spot Battery Tab Welder Lithium Battery Spot Welding Machine

Product Description

The Spot Welder For Batteries has two kinds type to choose, pneumatic spot welding machine with smaller shipping weight and volume, but need to connect air compressor. Pedal Type spot welding machine without air supply but need with desk shipping together.
This kind battery spot welder is mainly used for 18650, 26650, 32650 cylindrical battery, NI-MH battery(nickel-metal hydride battery), Nickel cadmium battery and EV Lithium battery pack Ni tab welding.
XWELL System battery spot welder machine has different models according it’s welding ability. The DC Spot welder is suitable for Ni tab thickness less than 0.12mm, the AC model suitable for Ni tab thickness less than 0.15mm. DC 5000A model suitable for Ni tab less than 0.25mm. We can also supply high power spot welding machine can weld up to 1mm tab. Please contact with our engineers to get the most suitable machines for you.

Product Features

1. The welding current is dc, and there is no defect of discontinuous heating of the workpiece. The heat concentration improves the welding thermal efficiency, which is especially suitable for the welding of non-ferrous metal materials and some refractory materials. The welding process is stable and the welding quality is significantly improved. The electrode life was also extended.
2. The LCD shows a variety of content, and the graphics show the current working status, the friendly work interface, the welding pulse graphics to enhance the convenience of the debugging observation.
3. There are special fault diagnosis and alarm functions to deal with current disorder, monitoring value overlimit, voltage overlimit and other faults.
4. The inverter bridge adopts soft switch technology to reduce switch loss and electromagnetic interference.
5. High speed and high precision microprocessor (MCU) control, to provide highly stable repetitive welding, with current monitoring function.
6. High speed welding: a quick start and high polarity switching reduced the temperature effect so that make the welding surface clean and beautiful.
7. Polarity switching: suppression of asymmetrical result makes the two points welding strength uniform and extends the service life of the electrode.
8. The imported IBGT module full control the discharge,welding quality and welding speed , non ordinary welding machine can compared with it.
9. Data storage using EEPROM, no battery life issues, always returned to the previous use of welding procedures when you starting up.
10. Double pulse can reduce welding spatter, effectively improve the quality of welding.
11. Welding voltage locking technology to prevent net voltage fluctuations to affect the welding current.

Product Specification

Battery pack spot welding samples

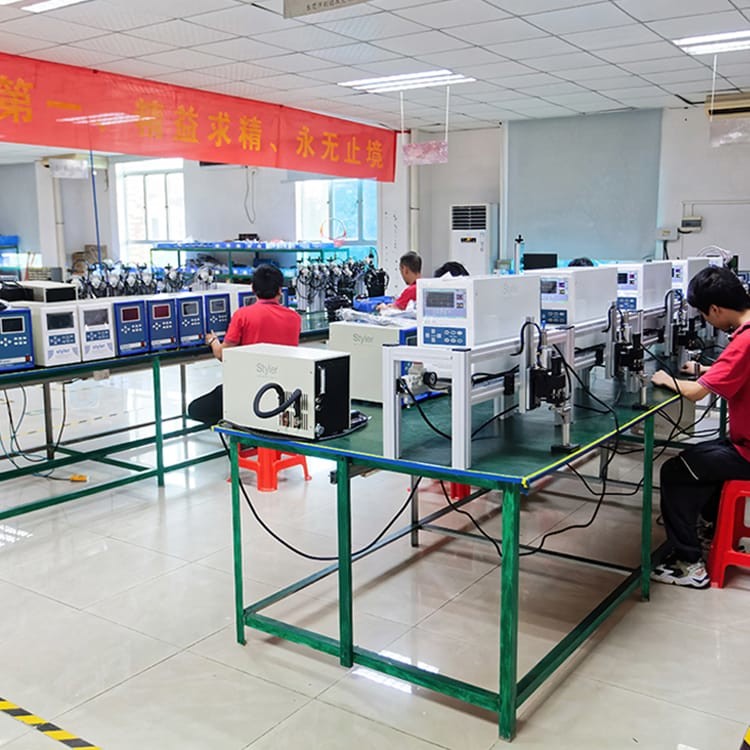

Battery pack assembly line factory

GUANGDONG XWELL TECHNOLOGY CO., LTD. is a high-tech enterprise specializing in intelligent equipment design, production and sales, providing mechanical engineering technology design and consulting services, electronic engineering design and consulting services. XWELL's core team was established in 2010 and officially established in June 2014. XWELL relies on South China University of Technology(SCUT), and the core team is composed of several doctors and masters from SCUT.

XWELL's main products are battery production line machines, such as spot welding machine, battery sorting machine, battery sticking machine, battery capacity grading machine, battery charge and discharge aging machine, battery general testing machine, and so on. The main application areas are new energy lithium batteries, automobiles and other industries, Especially in the fields of new energy, automotive wiring welding and other fields, XWELL has accumulated rich engineering experience and mastered a full set of core technologies, and can provide customers with a complete set of services from technology to equipment, helping customers to establish efficient and reliable production lines in the shortest time .
