    5kA Lithium Battery Spot Welding Machine , 26650 Lipo Spot Welder

    Single Side Fully Automatic Electric Lithium Battery Spot Welding Machine For Cylindrical Battery Pack Welding


    Product Description


    MD-ASW with welding head rotation function, is suitable for battery pack spot welding and assembly in the factory for 14500 / 18650 / 21700 / 26650 / 32700 multi-parallel multi-series combination.
    The Automatic Battery Pack Spot Welder is a general platform of automatic processing technology based on CNC, suitable battery pack spot welding and assembly in the factory. Compared with manual spot welding machine, the efficiency and accuracy of welding have been greatly improved.


    Product Features


    1. Support break point start, support automatic start and manual start mode conversion.
    2. It has a false spot welding and out of spot welding alarm function.
    3. Programming is simple, and it supports any point programming and array programming. 99 groups can be saved programming files.
    4. Welding needle replacement forecast reminder.
    5. Own welding current monitoring system, real-time monitoring of welding current.


    Product Advantages


    1. High stablity
    2. Strong generalty
    3. Production control
    4. Long maintenance
    5. Efficient and precise
    6. Welding pulse width is adjustable, welding machine is firm and spatter is small, welding spot is not colored.
    7. 7 Inch Touch screen, more convenient operation, more clear display
    8. Three file programming modes, manual input, array and CAD DXF schema import, simple and fast response to various complex program editing
    9. The welding head has the function of air cooling or water cooling, which can effectively reduce the influence of the temperature of spot welding needle on the welding quality.
    10. It can store 99 groups of files, which are easy to call and do not need complicated wiring and shunting process.
    11. One-button calibration function for whole deviation of solder joint, which can be used to calibrate point deviation caused by needle replacement or other reasons.
    12. Spot welding efficiency is higher, welding speed per spot is less than 0.35S (according to different speed of the selected welding machine), single side spot welding machine can reach 2800 cores per hour.
    13. The core parts are imported from Japan and Taiwan. The accuracy, stability and service life of the machine are more than twice that of other parts made in China.
    14. Welding automatic alarm and stop function, after clearing the fault can continue spot welding
    15. Machine with power cut or breakpoint continue function, can manually adjust any position for spot welding
    16. Welding machine can be optional, according to different requirements of customers, different welding machines can be selected to effectively meet customer needs.


    Product Specification


    Model No.MD-ASW
    Y-axis travel500mm (customizable)
    X-axis travel350mm (customizable)
    Max spot welding speed0.35s/point (1 hour:about 2800 units18650 cells)
    Motor drive speed1000mm/S
    Max load electric coresX direction: 26; Y direction: 26
    Capable file group storage99 groups
    Operating systemembedded system human-machine interface
    Transmission modeTaiwan precision screw with guide rail
    Driving modestepper servo motor
    Repeat positioning accuracy±0.02mm
    DimensionsL: 900mm, W: 900mm, H: 1750mm
    Power4000W
    Machine weight200KG
    Max bearing weight of Y-axis35KG
    Input power supplysingle-phase AC 220V/50Hz
    Air Source0.4-0.6 Mpa


    Product Application


    With the corresponding fixture, the spot welding machine can weld 18650, 26650, 32650 and other cylindrical batteries, can also be customized for a variety of cylindrical battery, square battery, button battery and etc.


    Product Operation


    1. Setting the parameters of welding on the touch screen. (The same product only need to be set once)
    2. Put the fixture with the battery pack on the quick clamping position.
    3. Press the start button, MD-ASW automatically complete all welding actions.
    4. MD-ASW sound to prompt operator replacement of new fixture (battery pack).

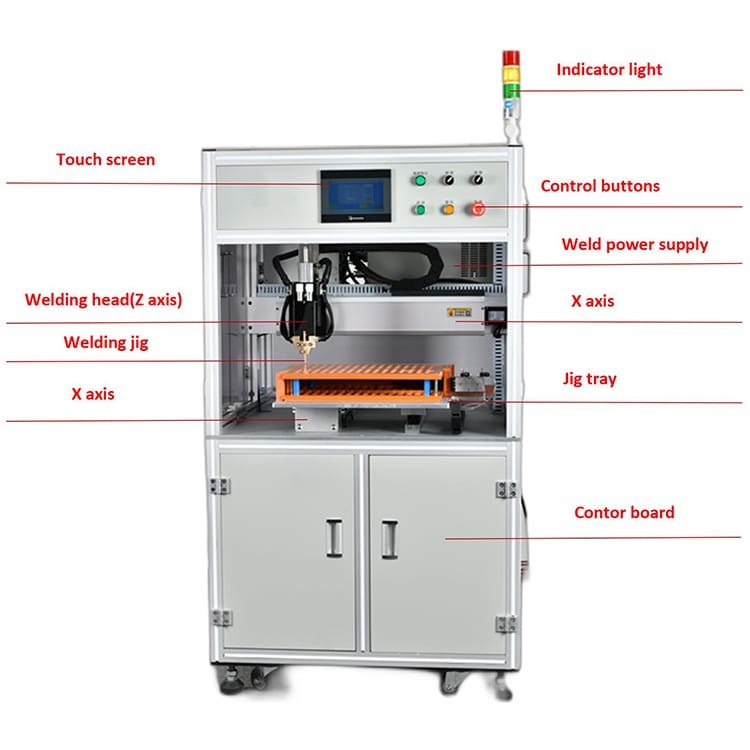

    Single side battery welding machine structure


    5kA Lithium Battery Spot Welding Machine , 26650 Lipo Spot Welder


    Single side spot welding machine details


    5kA Lithium Battery Spot Welding Machine , 26650 Lipo Spot Welder

    5kA Lithium Battery Spot Welding Machine , 26650 Lipo Spot Welder

    5kA Lithium Battery Spot Welding Machine , 26650 Lipo Spot Welder


    Battery pack welding samples


    5kA Lithium Battery Spot Welding Machine , 26650 Lipo Spot Welder

    5kA Lithium Battery Spot Welding Machine , 26650 Lipo Spot Welder

    5kA Lithium Battery Spot Welding Machine , 26650 Lipo Spot Welder

    5kA Lithium Battery Spot Welding Machine , 26650 Lipo Spot Welder

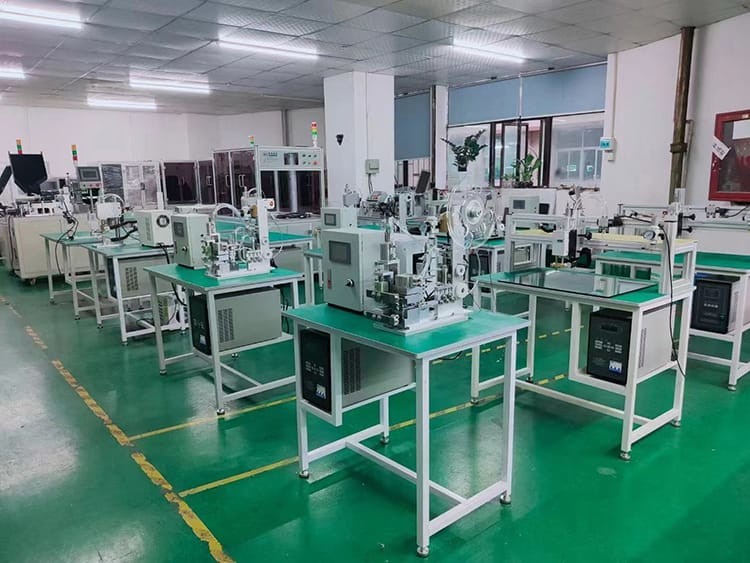

    Our factory
