Automatic Single Side Rotary 18650 Lithium Battery Spot Welding Machine For Battery Pack

Product Description

This Automatic Spot Welding 18650 Cells Single Side Spot Welding Machine is used for 18650,26650,32650 cylinder battery pack automatic spot welding.

Product Features

1. Power:4KW,220V/380V AC Input,50HZ
2. Air; 0.4-0.6Mpa,No water, no impurities
3. Suitable cell range:14500/18500/18650/18730/21700/26650/32700/4680 Series and parallel combination of the cell, multi-parallel and multi-series combination
4. Suitable for the production of battery packs: electric tool batteries, twist car batteries, energy storage battery packs, scooter batteries, electric vehicle batteries, etc.
5. Maximum stroke: X-axis 400MM, Y-axis 400MM, if you need more, it needs to be customized
6. Suitable for nickel sheet width: molded nickel sheet / bump nickel sheet (confirm when customizing)
7. Suitable for nickel sheet thickness: 0.1MM---0.3MM (0.21-0.3MM thickness nickel sheet needs to be slotted)
8. Production efficiency: about 2000-2500PCS cells/hour
9. Standard spot welding machine: 5000A/8000A DC spot welding power supply, one set

• Fast spot welding speed (2-10ms),
• low spot temperature
• Real-time monitoring of welding (under current or explosion) with welding completion signal, saving welding time
• Can set spot welding standard welding (the positive and negative electrodes are respectively welded with different currents)
• If the current is too small or there is an abnormality during spot welding, the machine will automatically alarm and stop the machine

10. Welder effect: very good welding consistency, uniform solder joints and beautiful appearance
11. Three kinds of spot welding data input: Dot matrix input method Array input method U disk import method, save the spot welding data to a U disk and directly import it to the machine. (U disk CAD DXF data is imported to the touch screen in a single time, and then can be exported from the touch screen to the U disk in batches, and then imported to other machines at once. )
12. Spot welding mold model name: Chinese and English input
14. Display interface: 7-inch color touch screen, can display in Chinese and English
15. Control device: 5-axis high-speed PLC programmer, 3-axis servo motor, 1-axis 400W servo motor drive electric welding head
16. Nickel belt adopts formed nickel belt to reduce waste
17. The equipment debugging is simple, easy to learn and understand, and the model change speed is fast (0-99 groups of data can be transfer)
18. Welding head power: servo electric
19. The equipment has its own fault alarm, clear the fault according to the prompt
20. Dimension:L900*W900*H1750MM
21. Weight:200KG

Product Advantages

1. Function:Automatic welding machine for battery pack
2. Applied range:For Cylinderical cell battery pack
3. Suitable nickel thickness: 0.1mm-0.3mm
4. Spot welding effective area: X-axis 400mm, Y-axis 400mm

Product Specification

Product Application

With the corresponding fixture, the spot welding machine can weld 18650, 26650, 32650, 4680 and other cylindrical batteries, can also be customized for a variety of cylindrical battery, square battery, button battery and etc.

Product Operation

1. Setting the parameters of welding on the touch screen. (The same product only need to be set once)
2. Put the fixture with the battery pack on the quick clamping position.
3. Press the start button, the machine automatically complete all welding actions.
4. The welder sound to prompt operator replacement of new fixture (battery pack).

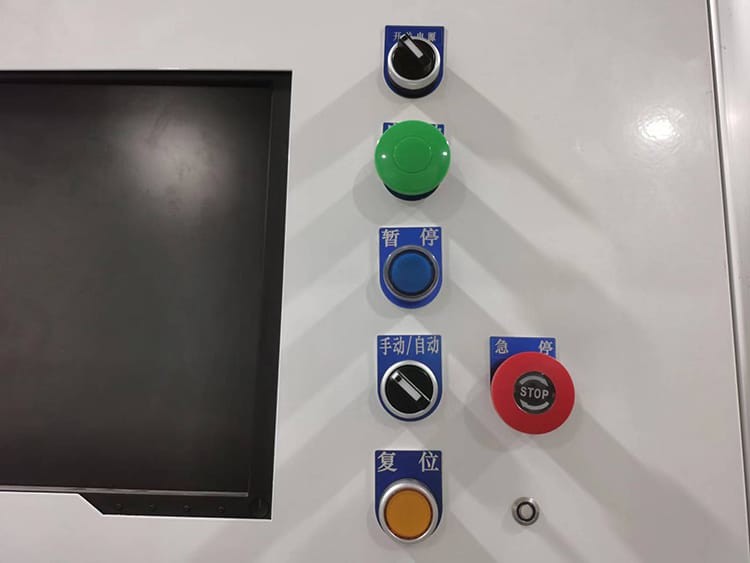

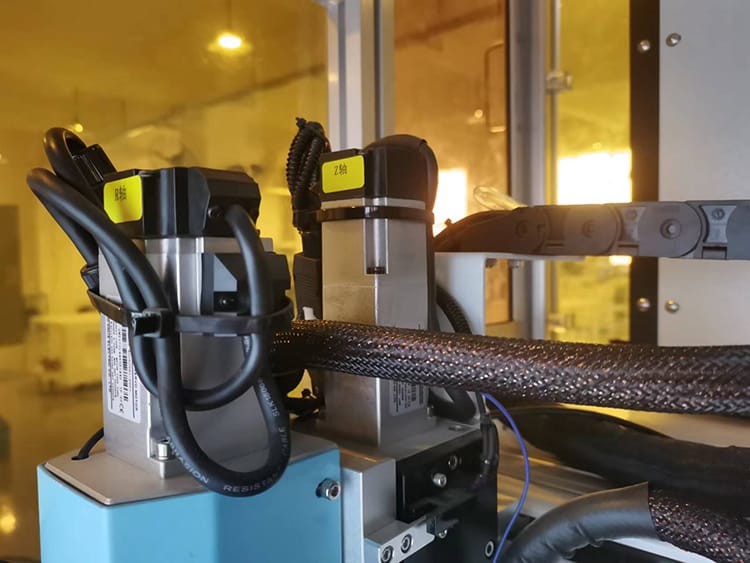

Rotation head single side spot welding machine details
