Automatic Rotary Welding Head Single Side Spot Welding Machine For Battery Pack For Solar Light Battery

Product Description

Photovoltaic, power batteries, lithium nickel hydride batteries and other batteries are connected with nickel alloy sheet, aluminum-nickel composite strip, wire and guide, household appliances parts and guide connection, hardware accessories, copper-silver products, stainless steel peripheral connection, bulb foot welding, electronic parts, all kinds of high and low conductive metal welding, etc.

Product Features

1. Support breakpoint start, automatic start, and manual start.
2. Cold solder joint and sealing off alarm.
3. Easy program, support matrix, array and point program, can store 99 group parameters.
4. Welding needle abrasion alarm.
5. Build-in welding current monitor, can display real time welding current.
6. Design for NB, Power Tool, Gardening Tool, High Power, Energy Storage battery, Electric Motor Car Battery Pack, and other lithium battery packs spot welding.
7. Can be matched with the production line of lithium battery group.
8. Can store dozens process of different battery packs product, switching products without re-setting parameters.
9. Can match a variety brand of spot welders.

Product Advantages

1. Touch screen display, more convenient operation and clearer display
2. Three file programming modes, manual input, array, CAD DXF drawing import, simple and fast response to various complex program editing
3. The welding head has the function of air cooling or water cooling, which can effectively reduce the influence of spot welding needle temperature on welding quality
4. It can store up to 99 groups of files, which is easy to call and does not need complicated process of line changing and machine adjusting
5. The spot welding program of a side and B side of fixture can be switched.

Product Specification

Product Application

Power Battery 18650 / 26650 series-parallel combination of batteries, multi-parallel multi-series combination, electric tool battery, torsion car battery (1 die spot welding 6 groups) , energy storage battery pack, 18650 Battery Group, 26650 Battery Group, 32650 Battery Group, Electric Bicycle Battery, solar Street light, Ternary Lithium Ion battery, digital lithium ion battery, lithium iron phosphate battery, etc. .

Product Operation

1. Setting the parameters of welding on the touch screen. (The same product only need to be set once)
2. Put the fixture with the battery pack on the quick clamping position.
3. Press the start button, the machine automatically complete all welding actions.
4. The welder sound to prompt operator replacement of new fixture (battery pack).

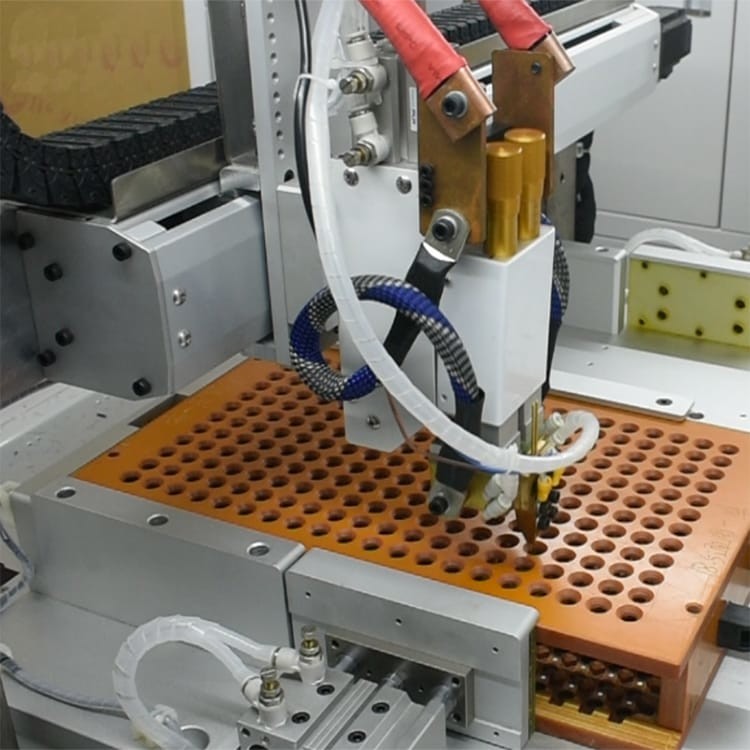

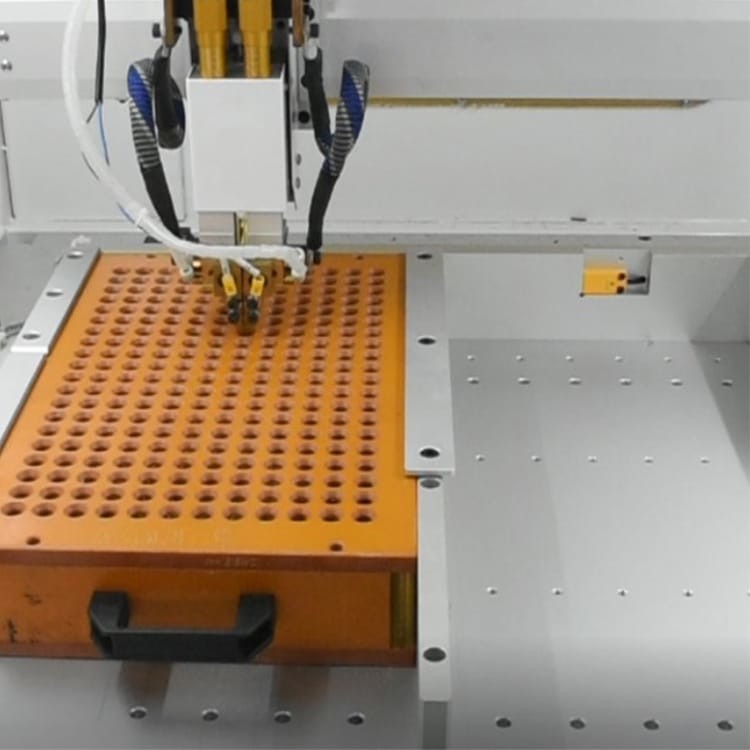

Battery spot welder details

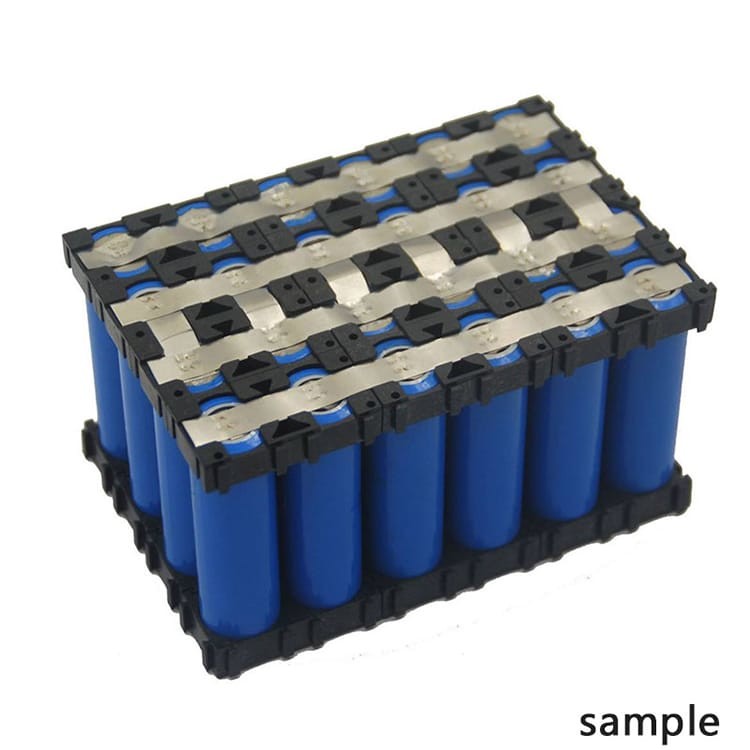

Battery pack sample

GUANGDONG XWELL TECHNOLOGY CO., LTD. is a high-tech enterprise specializing in intelligent equipment design, production and sales, providing mechanical engineering technology design and consulting services, electronic engineering design and consulting services. XWELL's core team was established in 2010 and officially established in June 2014. XWELL relies on South China University of Technology(SCUT), and the core team is composed of several doctors and masters from SCUT.

XWELL's main products are battery production line machines, such as spot welding machine, battery sorting machine, battery sticking machine, battery capacity grading machine, battery charge and discharge aging machine, battery general testing machine, and so on. The main application areas are new energy lithium batteries, automobiles and other industries, Especially in the fields of new energy, automotive wiring welding and other fields, XWELL has accumulated rich engineering experience and mastered a full set of core technologies, and can provide customers with a complete set of services from technology to equipment, helping customers to establish efficient and reliable production lines in the shortest time .
