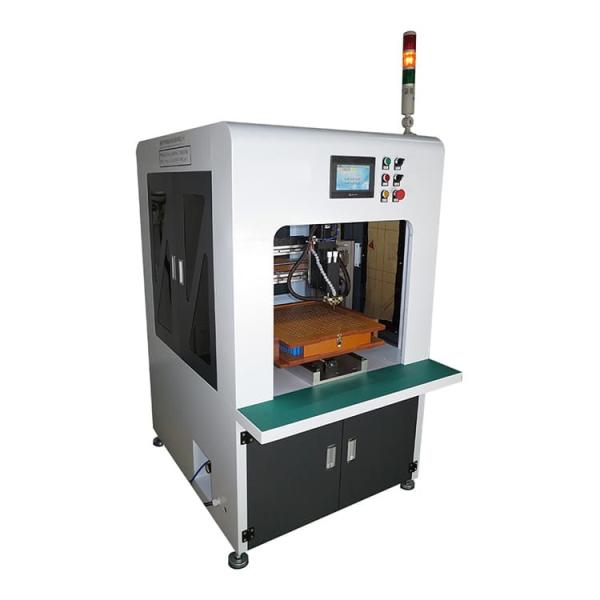

Single Side Spot Welding Machine For 18650 Cylindrical Battery For Energy Storage Battery

Product Description

Photovoltaic, power battery, NiMH lithium battery and other batteries are connected with nickel alloy strip, aluminum nickel composite strip, wire and guide strip, household electrical parts and guide strip, hardware accessories, copper and silver products, stainless steel peripheral connection, bulb foot welding, electronic parts, all kinds of high and low conductive metal welding, etc.

Product Features

1. Embedded industrial control module control, intelligent man-machine interface, simple and easy to understand;
2. Imported servo motors and precise linear module orientation ensure accurate welding, stable displacement and long service life;
3. Unique function of automatic turning and head rotation ensures precise alignment of welding displacement, considerations and good practical effect.
4. Program settings support arbitrary lattice and standard lattice modes, and can store 99 groups of programs without one-to-one pairing.

5. The output of welding power source is stable, with current output monitoring, false welding leakage alarm function, good welding consistency, no bad welding.

Product Advantages

1. Touch screen display, more convenient operation and clearer display.
2. Three file programming modes, manual input, array, CAD DXF drawing import, simple and fast response to various complex program editing.
3. The welding head has the function of air cooling or water cooling, which can effectively reduce the impact of spot welding needle temperature on welding quality. 4. It can store up to 99 groups of files, which is easy to use and does not need complicated process of line changing and machine adjusting.
5. The spot welding program of A side and B side of fixture can be switched.

Product Specification

Product Application

The product is suitable for welding in 18650 26650 21700 32650 electric vehicle battery pack, electric bicycle battery pack, automobile battery module, street lamp battery pack, balance car battery pack, scooter battery pack, mobile power supply, starting battery pack module, electric tool battery pack, energy storage power supply battery pack and other fields. Automatic compensation of welding pin, water cooling and heat dissipation of welding head, very beautiful welding effect, elimination of false welding, self current welding detection, high-end quality, durable, one-year warranty, lifelong maintenance!

Product Operation

1. Setting the parameters of welding on the touch screen. (The same product only need to be set once)
2. Put the fixture with the battery pack on the quick clamping position.
3. Press the start button, the machine automatically complete all welding actions.
4. The welder sound to prompt operator replacement of new fixture (battery pack).

Cylindrical battery pack welding machine details

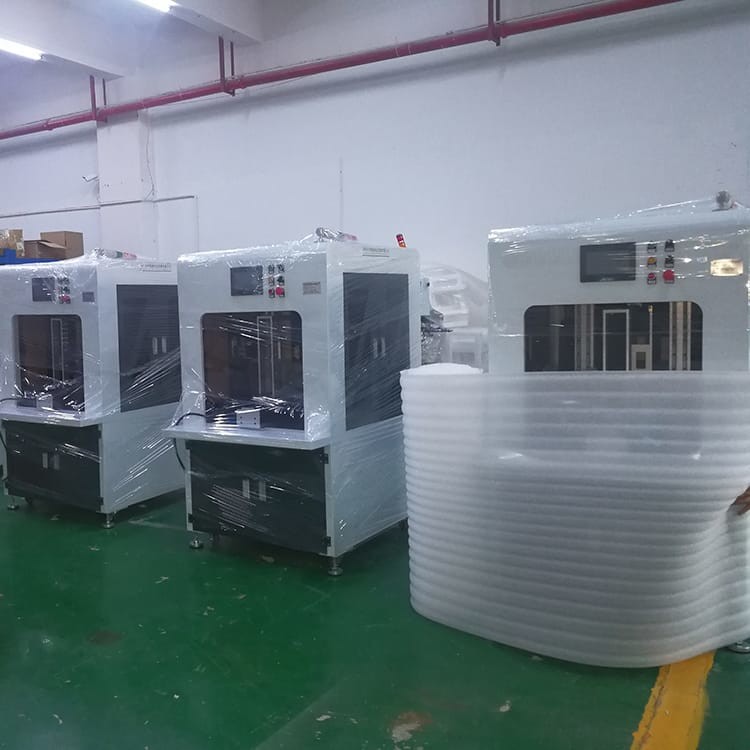

Our factory

GUANGDONG XWELL TECHNOLOGY CO., LTD. is a high-tech enterprise specializing in intelligent equipment design, production and sales, providing mechanical engineering technology design and consulting services, electronic engineering design and consulting services. XWELL's core team was established in 2010 and officially established in June 2014. XWELL relies on South China University of Technology(SCUT), and the core team is composed of several doctors and masters from SCUT.

XWELL's main products are battery production line machines, such as spot welding machine, battery sorting machine, battery sticking machine, battery capacity grading machine, battery charge and discharge aging machine, battery general testing machine, and so on. The main application areas are new energy lithium batteries, automobiles and other industries, Especially in the fields of new energy, automotive wiring welding and other fields, XWELL has accumulated rich engineering experience and mastered a full set of core technologies, and can provide customers with a complete set of services from technology to equipment, helping customers to establish efficient and reliable production lines in the shortest time .
