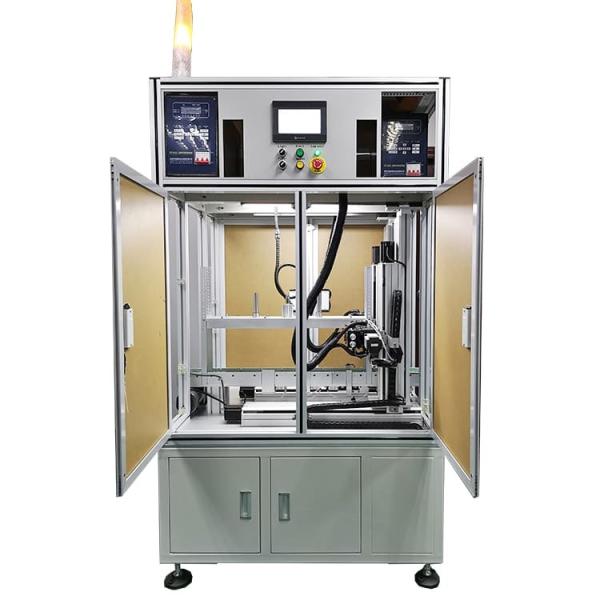

18650 26650 21700 32650 cylindrical lithium battery pack double side automatic spot welding machine

Product Description

This machine is used for 18650,26650,32650 cylinder battery pack automatic spot welding, it can weld both side together with high speed and good effect.

Product Features

1. Smart controlling system or motion controller programming, intelligent interface and Simple Operation
2. First Ladder servo motors and precise linear to ensure accurate welding, stable displacement and long life;
3. Program setting, standard battery mode and special battery mode compatible, can set any spot welding procedure standard, and spot welding electrode horizontal two points and vertical two points compatible, comprehensive consideration, convenient and practical.
4. High spot welding efficiency with 0.3 - 0.8 seconds / Cycle, speed adjustable with counting function.
5. Stable welding power output.

Product Advantages

1. The equipment is made of aluminum alloy and sheet metal structure, which is firm and not easy to loosen, and ensures stability.
2. It is suitable for large-scale automatic spot welding of batteries.
3. The spot welding effect is stable and guaranteed.
4. High welding efficiency, take 18650 as an example: about 4600-5000PCS power core / Hour
5. Spot welding die has anti-dull configuration, ordinary staff can debug equipment and operating equipment.
6. Equipment with 200 sets of spot welding parameters storage, can quickly switch spot welding model.
7. Real-time welding current moniting,false welding or explosion alarm automatically shut down
8. The coordinate parameters of spot welding can be stored and exported by U Disk.

Product Specification

Product Application

Applicable to electric vehicle battery pack, street lamp battery pack, automobile battery module, balance vehicle battery pack, scooter battery pack, mobile power supply, starting battery pack module, power tool battery pack, notebook battery pack, various electronic products and other battery combinations!
Product Operation
1. Setting the parameters of welding on the touch screen. (The same product only need to be set once)
2. Put the fixture with the battery pack on the quick clamping position.
3. Press the start button, the machine automatically complete all welding actions.
4. The welder sound to prompt operator replacement of new fixture (battery pack).
