Manual Battery Pack Spot Welding Machine with Longmen Frame DC Inverter Power Supply Drive by Pneumatic

Description

The MD-MDN5000 Manual Battery Spot Welding Machine is a general spot welding machine based on microcomputer, suitable battery pack spot welding and assembly in the school, university, laboratory and factory.
The MD-MDN5000 is equiped with a AC power supply and driven by pnematic. Which can welding thickness is 0.2mm. It's for small battery pack assembly, It can be used for sample welding and small batch production.

Features

1) Designed for 18650, 26650…battery pack welding, like E-bike, scooter, and electro mobile battery pack welding.
2) AC 220V welding machine, simple structure high cost-effective welding solution.
3) Stable current output, use microcomputer control, welding effect is consistent.
4) Easy operation, LCD display, keyboard welding parameter adjusting.
5) Automatic alarm system, will stop when failure.

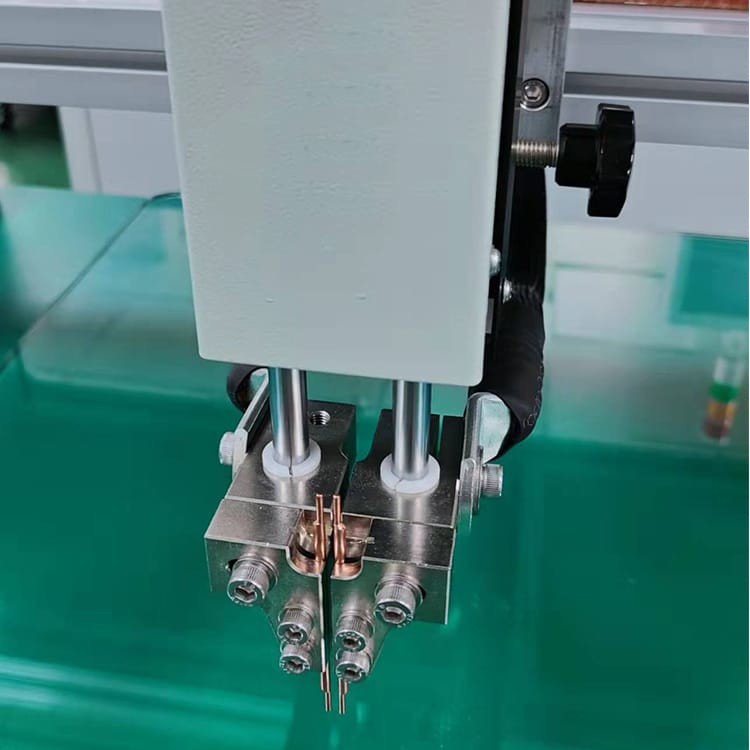

Stucture

Parameters

Samples

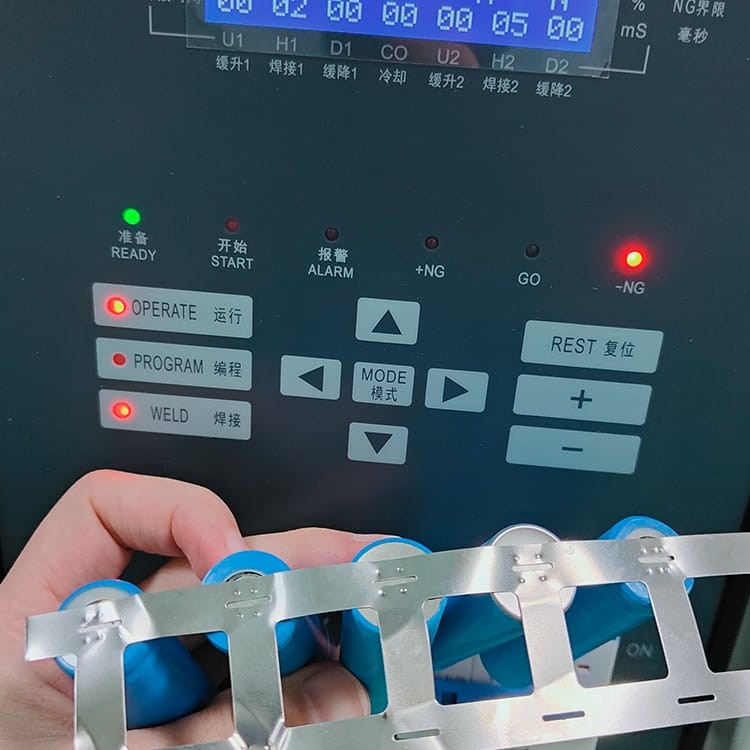

Spot welding samples
The double side spot welding machine suitable for all types of cylindrical cells pack and suitable for all shapes of packs. With high quality 5000A/8000A spot welding power supply, it can weld thickness from 0.1mm to 0.3mm. Welding spot is beautiful, firm and good conductivity.

Our project

India project
This project is localed in Inda, Gurgaon. The client was founded in 1994, have more than 400 staffs and 10000+ square factory.

They bought 2 full of battery pack assembly line from us, includes sorting machine, welding machine, sticking machine, charge and discharge machine…
We have sent 3 engineers to client site for machine installation and training in year of 2019. The training taked about one week. After the training, the client engineers are learned how to operation the machines in a smooth and high efficiency way. They made high-quality products by our machines.
We had a nice journey in India.
