Battery Pack Atmospheric Plasma Cleaning Machine For Positive And
Negative Terminal Cleaning Before Spot Welding
Summary
XW-2600 Atmospheric Plasma Cleaner is a product for surface
cleaning, activation and etching in a normal pressure
environment,The nozzles usually equipped with jet straight spray
gun heads mainly treatment materials with small area, high
trajectory accuracy, and corners parts,it can effectively deal with
problems such as poor adhesion, poor welding, poor printing and
poor dispensing in various industries.Plasma cleaning, as the front
process of product surface printing, packaging, laminating,
coating, welding, adhesive, coating, is an important part of
enterprise product upgrade, capacity expansion and cost reduction.
Why need plasma clearning for battery?
During the production, testing and transportation of lithium
battery cells, impurities such as dust and metals will stick to the
positive and negative terminals. This brings trouble to the
subsequent assembly of the battery pack, resulting in poor spot
welding effect. Therefore, it needs to be plasma cleaned before
assembly to maintain a clean terminal.
Features
1. Compact machine, wide application range, professional,
efficient, accurate, durable,
environmentally friendly, flexible configuration, high cost
performance;
2. Can be combined with the production line, can be continuously
operated and
increase production speed;
3. Low gas cost (CDA / N2), and saving costs;
4. Uses industry-leading Full-bridge inverter circuit;
5. Patented design high voltage generator;
6. Patented nozzle design, no ESD generation;
7. Unique patented discharge technology, high plasma concentration
Specifications
| Plasma power host specifications |
| Dimension | 560×452×186mm(L×W×H) |
| Weight | 20KG |
| Input power | Single phase 220V,50/60Hz, Ground resistance＜0.5Ω |
| Power frequency | 20-50KHz |
| Plasma output power | 300-500W Adjustable；
Optional 200-300W(Ultra-low power version TEMP:40-60℃) |
| Control method | I/O interface |
| Alarm | Overload protection, short circuit protection, open circuit
protection, temperature protection |
| Plasma power nozzle specifications |
| Nozzle | 1.Optional ordinary jet direct injection 2mm, 3mm, 5mm, 10mm
standard nozzle
2.Straight jet flat nozzle of 10 mm and 15 mm |
| Weight | 3KG |
| Cleaning hight | 5-20mm |
| Cleaning width | 2-15mm |
| Cable length | 3.5 m( Customizable within 6 m) |

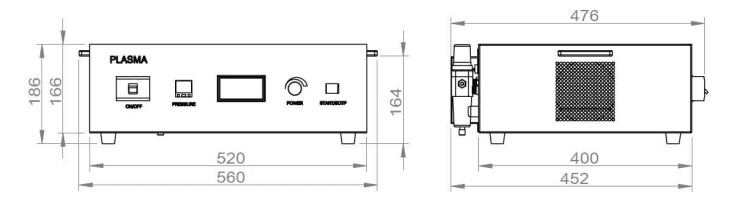

Plasma generator dimensional drawings
Plasma head size drawing
Plasma cleaning machine for battery
