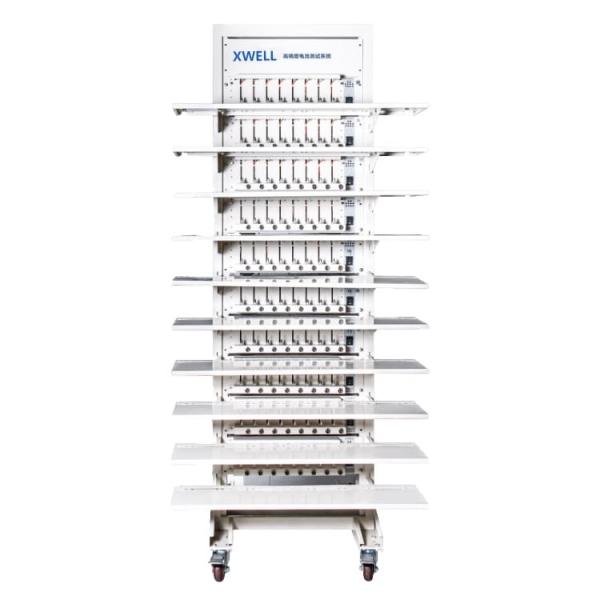

    10A Battery Aging Machine , 5V Mah Tester For Battery 2000W Power

    5V 6A 10A Charge And Discharge Battery Pack Testing Aging Machine
    Product Description
    The Battery Pack Charge and Discharge Aging Machine is mainly used for the charge and discharge cycle test of the finished lithium battery.
    The test items include: battery charge protection voltage, discharge protection voltage, battery capacity, etc.; the equipment has 4 test steps of charging, discharging, shelving, and cycling. You can make the battery test in accordance with the set process.
    The test functions are:
    1) Battery charge protection voltage
    2) Discharge protection voltage
    3) Battery capacity
    Product Features
    1) Single channel control technology, each channel is independent of each other
    2) Anti-reverse connection protection function, data is automatically saved in real time
    3) Two communication methods: serial port and network
    4) Data output to Excel, TXT
    Product Specification
    No
    Item
    XWELL
    1
    Power supply
    AC220V 50Hz
    2
    Power
    2000W
    3
    Voltage
    Test range
    0-5V
    Accuracy
    ±(0.2% of reading +0.2% of range)
    4
    Current
    Charge range
    200-5000mA / 10000mA
    Charge accuracy
    ±(0.2% of reading +0.2% of range)
    Discharge range
    200-5000mA / 10000mA
    Discharge accuracy
    ±(0.2% of reading +0.2% of range)
    5
    Charge
    Constant voltage cut-off current
    Min 200mA
    6
    Capacity
    Accuracy
    ±1‰
    7
    Power
    Discharge power
    ≤4000w
    8
    Time
    Inspection time
    <2s
    Timing range
    0-999 h/steps
    9
    Data record interval
    ≥5s
    10
    Channels per box
    1
    11
    Charge
    Charge mode
    Constant current and constant voltage charging
    Cut-off condition
    Voltage, current, relative time, overcharge protection
    12
    Discharge
    Discharge mode
    Constant current discharge
    Cut-off condition
    Voltage, relative time, overcharge protection
    13
    Cycle
    Cycle test range
    1-999 times
    Max steps in one cycle
    100
    14
    Voltage current sample
    4 wires
    15
    Database
    SQL
    16
    Communication
    TCP/IP, Serial port
    17
    Data output
    EXCEL, TXT
    18
    Size
    800*520*1370mm
    19
    Battery cabinet size
    720*400*420mm
