30V Battery Charge Discharge Tester , 1 Channels 100a Battery Load Tester

Ask Lasest Price
Brand Name :	XWELL
Model Number :	XW30V-100A
Certification :	CE
Price :	USD 2000/pcs
Payment Terms :	T/T, Western Union, L/C
Supply Ability :	100 pcs per month
Delivery Time :	15-20 days

Add to Cart

Product Details
Company Profile

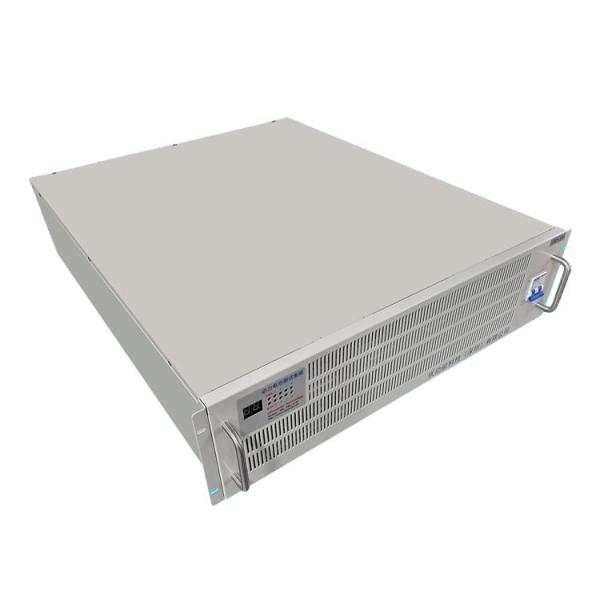

30V Battery Charge Discharge Tester , 1 Channels 100a Battery Load Tester

30V 100A 1 Channels Battery Automatic Charge And Discharge aging Machine for Lithium Battery

Product Description

This machine is mainly used for lithium battery charging and discharging cycle test. The test items include battery charging protection voltage, discharging protection voltage, capacity, etc. The equipment has four test steps: charging, discharging, shelving and cycling. By editing the corresponding step, the battery can be tested according to the set process.

1.In the network mode, it is connected automatically, without manual connection.
2.Use MYSQL database to save data to ensure that data will not be lost
3.The instrument number is displayed through LED lights
4.The battery can be charged as long as the battery is in the test range
5.In addition to the P+ and P- interfaces, the instrument also provides CH+ and CH-, which can test special finished batteries and charge and discharge them on one instrument.

batteries and charge and discharge them on one instrument.

Charging function	With constant current and constant voltage charging function
Discharge function	With constant current and current limiting discharge function
Charge and discharge interface	Fully meet the requirements of charging and discharging the same port and separate charging and discharging of the battery pack, that is, 2 wires (P+ P-) and 3 wires (P+ P- C-)
Equipped with a usb interface	It is used for scanning gun to collect the ID number of the battery pack, which is convenient for data query after battery aging
Security protection	Anti-reverse protection function
	Voltage upper and lower limit setting protection
	Safe discharge current protection (maximum current 10A)
Charging requirements	Charging voltage 0-70V, continuously adjustable, accuracy ±1mV(high precision dedicated)
Charging requirements	Charging current 0-5000mA, continuously adjustable, accuracy ±1mA (high precision dedicated)
Discharge requirements	Discharge voltage 0-70V, accuracy ±1mV (high precision dedicated)
	Discharge current 0-10A, accuracy ±1mA (high precision dedicated)
	Discharge capacity error 1‰ (high precision dedicated)

Product Specification

Warranty:	1 years
Place of Origin:	Guangzhou, Guangdong,China
Product name:	Aging Machine
Feature:	Store testing data in MYSQL
Voltage:	30V
Charging current:	100A
Discharging current:	100A
Color:	Picture
Package:	Plywood Case
MOQ:	1 Set
