Fully Automatic Cylindrcial Battery Pack Production Line 18650 21700 32650 4680 Cell

Introduction

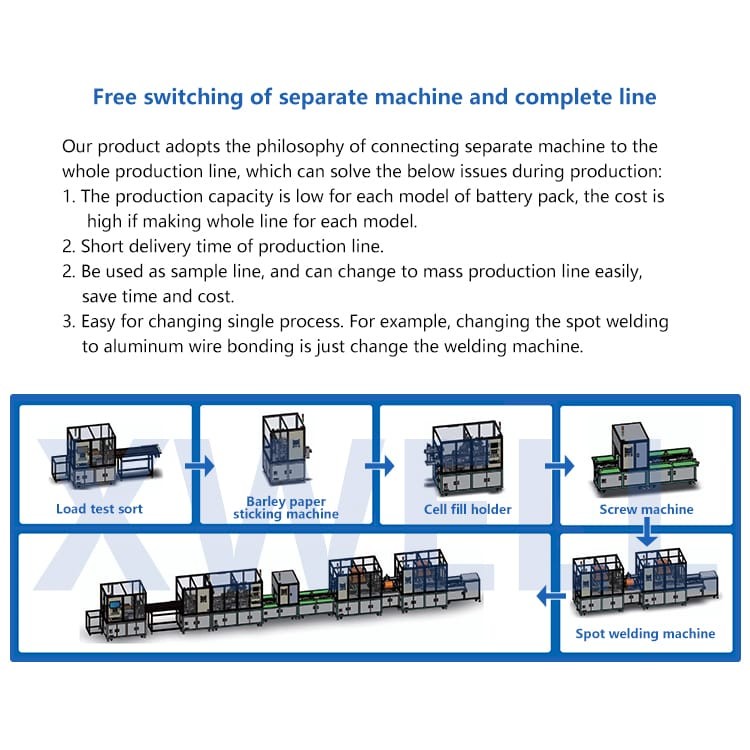

This production line is used to the pack section of cylindrical battery modules, mainly for power battery modules, with a number of 1-150 batteries. The whole line includes cell loading, cell barcode scanning, cell testing, pasting highland barley paper, cell sorting, cell polarity conversion, bottom holder loading, bottom holder laser coding, holder scanning, cell fill into the holder, CCD polarity checking, top holder loading, cover top holder, lock holder screws, nickel strip cleaning (laser / plasma cleaning), nickel strip loading resistance spot welding / aluminum wire welding, nickel strip bending, busbar welding, module labeling, module testing, shell filling and other related processes.

Advantages

Flexibility
Configuration software operation, faster and more convenient to switch between different models

Compatibility
1-150 pcs cylindrical cells battery packs with different combinations

Standardization
The production line of the cylindrical battery is unified and has strong versatility, reducing the cost of repeatedly purchasing the machines.

Digitizing
Each machine is connected to the MES system, all production data are saved to MES system. Can be matched with ESOP and workshop management board as required.

Standard Configuration

• Cell Loading Unit
• Cell Test Unit
• Cell Grading and Buffer Unit
• Robot Filling Holder Unit
• CCD Polarity Checking Unit
• Resistance Spot Welding Unit
• BMS Board Soldering Unit
• Labeling Finished Product Test Unit

Specifications

Applications
