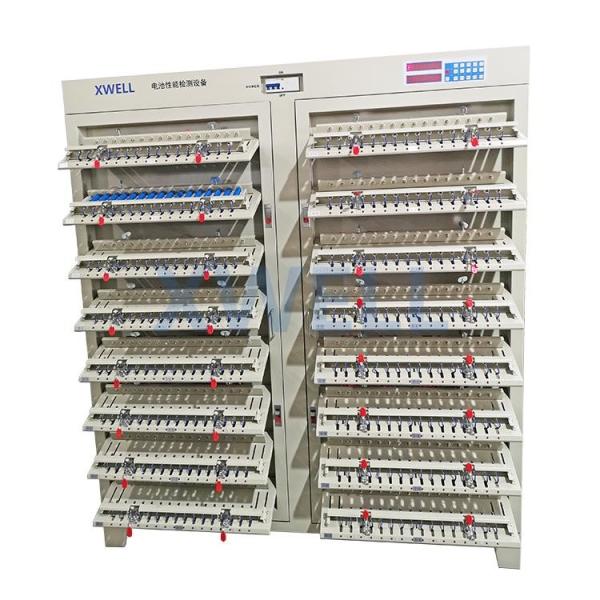

512 Channel 5V3A Battery Capacity Tester Discharge 18650 32650 21700 Battery Cell Grading Machine

Description

1. Cylindrical Cell Battery Capacity Analyzer mainly constitute by the computer system and control software, communication interface and battery detecting cabinet. Battery detecting cabinet comprises a fixture and placed the plate body of the fixture, charging, constant current and constant voltage source discharge constant current source, storage control circuit, current sampling circuit, voltage sampling circuit, the main control CPU, data memory, microcontroller programming and control panel.

2. Each battery test station has independent constant current and constant voltage power.

3. Using a unique constant current constant voltage power, constant current to constant voltage switch without impact, especially suitable for lithium ion battery charging and discharging requirements.

4. Per device consists of a set of completely independent MCU control system.

5. Specially used for chemical and capacity separation of cylindrical lopo battery.

Customizable current range: 0-1 mA, 0-10 mA, 0-300 mA, 0-2 A, 0-3 A, 0-5 A, 0-20 A, 0-30 A, etc.

Customizable voltage range: 0-5 V, 0-10 V, 0-20 V, 0-30 V, 0-50 V, 0-60 V, 0-150 V, 0-300 V, 0-500 V, etc.

Features

Structure
Channels: 512 channels
Machine size: 1620mm×550mm×1840mm
Box color: Default beige (can be customized)
Clamp type: upper positive and lower negative, fixture (tip/flat/two pieces) optional
Clamp spacing: 40mm
Support battery height: adjustable within 100mm
Working power supply: 3-phase five-wire system AC380V±10%, 50HZ
Working power consumption: ≤9KW
Working environment: temperature 0～40℃, relative humidity ≤80%
Cooling method: natural air intake, upward exhaust air

Channel parameters
Voltage measurement range: 0～5V
Battery voltage range: charging 0～4.5V; discharging 4.5～2V
Constant voltage range: 2.5～4.5V
Voltage accuracy: ±(1‰ reading+1‰ full scale)
Voltage resolution: 1mV
Voltage stability: ≤1‰
Current range: charging 20mA～6A; discharging 20mA～6A
Current accuracy: ±(1‰ reading+1‰ full scale)
Current resolution: 1mA
Current stability: ≤1‰

Fixtures

Parameters

Factory

Our project

India project
This project is localed in Inda, Gurgaon. The client was founded in 1994, have more than 400 staffs and 10000+ square factory.

They bought 2 full of battery pack assembly line from us, includes sorting machine, welding machine, sticking machine, charge and discharge machine…
We have sent 3 engineers to client site for machine installation and training in year of 2019. The training taked about one week. After the training, the client engineers are learned how to operation the machines in a smooth and high efficiency way. They made high-quality products by our machines.
We had a nice journey in India.

GUANGDONG XWELL TECHNOLOGY CO., LTD. is a high-tech enterprise specializing in intelligent equipment design, production and sales, providing mechanical engineering technology design and consulting services, electronic engineering design and consulting services. XWELL's core team was established in 2010 and officially established in June 2014. XWELL relies on South China University of Technology(SCUT), and the core team is composed of several doctors and masters from SCUT.

XWELL's main products are battery production line machines, such as spot welding machine, battery sorting machine, battery sticking machine, battery capacity grading machine, battery charge and discharge aging machine, battery general testing machine, and so on. The main application areas are new energy lithium batteries, automobiles and other industries, Especially in the fields of new energy, automotive wiring welding and other fields, XWELL has accumulated rich engineering experience and mastered a full set of core technologies, and can provide customers with a complete set of services from technology to equipment, helping customers to establish efficient and reliable production lines in the shortest time .
