    5V 3A 512 Channels Battery Charge Discharge Machine Capacity Grading For Cylindrical Cell

    Ask Lasest Price
    Brand Name : XWELL
    Model Number : S11-512-6A
    Certification : CE
    Price : USD 6000/pcs
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 100 pcs per month
    Delivery Time : 15-20 days
    • Product Details
    • Company Profile

    5V 3A 512 Channels Battery Charge Discharge Machine Capacity Grading For Cylindrical Cell

    5V3A 512 Channels Battery Charge Discharge Machine For Cylindrical Cell Formation And Capacity Grading
    Product Description

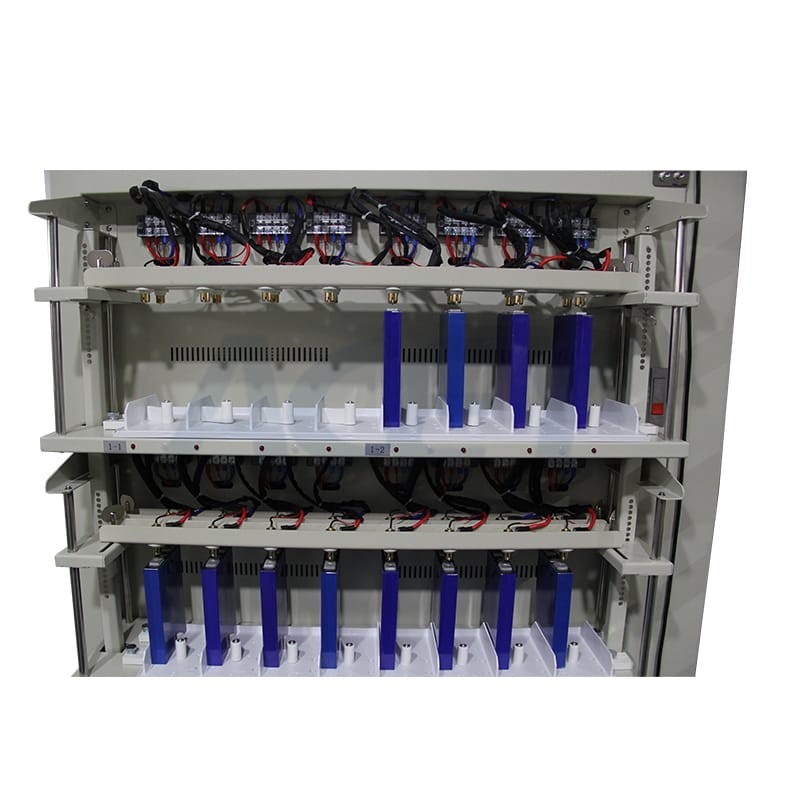

    This XW-5V3A-512 is mainly composed of a communication interface and a battery detection cabinet. The battery testing cabinet is composed of battery clamp and a plate body to placing fixture, a constant current constant voltage source, a registration control circuit, a sampling circuit, a single chip microcomputer and a control panel.
    Product Features

    1 Each equipment can do constant current constant voltage charging and constant current discharge testing for 512 pcs of cell which is within the voltage range.

    2 Constant current and constant voltage power supply, constant current to constant voltage switching without impact, especially suitable for lithium ion battery charging requirements.

    3 This equipment adopts AVR single-chip computer as the control center, and cooperates with the peripheral sampling circuit, which can be controlled by the upper computer. When connected to the computer, the complete charge and discharge curve of all channels can be saved. Or it can be separated from the upper computer and operated by the control panel to complete constant current and constant voltage charging, constant current discharge test, etc.

    4 Each battery has its own independent constant current and constant voltage source, and the self-forming loop does not affect each other.

    5 A light-emitting diode is mounted on each of the battery fixtures as an operational status display, and when the discharge is completed, it can be used to indicate battery capacity sorting.

    Product Specification
    Product Name
    512 channels battery charge and discharge grading machine
    Model
    XW-5V3A-512
    Input
    220V 50/60 Hz
    Power
    14 Kw
    Channels
    512 channels
    Battery Type
    Cylindrical battery, 18650, 26650, 21700, 32650, 32700
    Charging current
    Range: 0-5v for charging, 0.8v-5v for discharging Accuracy: ±(0.05% of reading + 0.1% of range)
    Current
    Range: 5mA – 2/3/5 A Accuracy: ±(0.05% of reading + 0.1% of range)
    Weight
    210KG
    Size
    2000*400*2000 mm
    XWELL supply all kinds of battery grading machine
