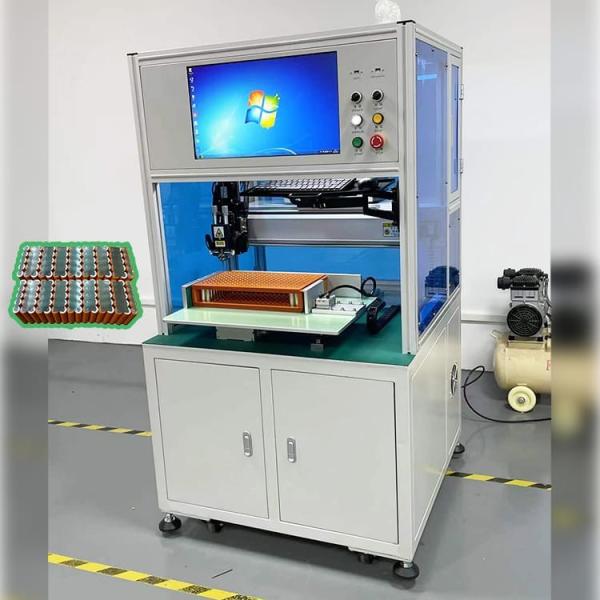

Single Side Automatic Battery Pack Spot Welding Machine for 18650 21700 Cylindrical Cell Pack

Single Side Spot Welding Machine Application

Applicable to electric vehicle battery pack, street lamp battery pack, automobile battery module, balance vehicle battery pack, scooter battery pack, mobile power supply, starting battery pack module, power tool battery pack, notebook battery pack, various electronic products and other battery combinations!

Single Side Spot Welding Machine Features

1. Support break point startup, automatic startup and manual startup mode conversion.
2. Simple programming, support any point programming and array programming, realize skip spot welding, fast switching between single point and double point modes, optimize spot welding path, improve efficiency, save 99 groups of programming files on local disk, and import graphics through USB interface.
3. It can be divided into super operator, maintenance, administrator, etc.
4. Inverter DC welding power supply is adopted, which has stable performance, fast welding speed and constant current working mode, so as to eliminate the unstable factors of welding current for a long time.
5. It has its own welding current monitoring system, which can monitor the welding current in real time.
6. The spot welding power supply has the function of false welding alarm, which can directly communicate with the motion controller, record the false welding position, and predict and remind the replacement of welding needle.
7. The welding efficiency is about 4 times that of labor, with high stability, labor saving, time saving and cost saving.

Single Side Spot Welding Machine Advantages

1. Induct the load voltage, control the voltage in the feedback mode, and realize high-quality welding.

2. Power on mode of pre heat and main heat: preheat before welding to ensure stable welding quality.

3. Keep the continuity of energy density, short welding time, reduce the deformation and discoloration of base metal. (the welding time is controlled in microseconds, and the mode of continuous output)

4. Easy to change from low current to high current, suitable for precision welding.

5. The upper and lower limits of current can be set to judge whether the welding quality is good or not, which is suitable for the welding automation platform.

6. The welding current will rise with the power on time to ensure the welding effect.

7. Stable control system

8. High configuration regulating device

9. High precision working procedure

10. High cost performance of products

Product Specification

Main Parts List

Single Side Spot Welding Machine Operation

1. Setting the parameters of welding on the touch screen. (The same product only need to be set once)
2. Put the fixture with the battery pack on the quick clamping position.
3. Press the start button, MD-ASW automatically complete all welding actions.
4. MD-ASW sound to prompt operator replacement of new fixture (battery pack)."
