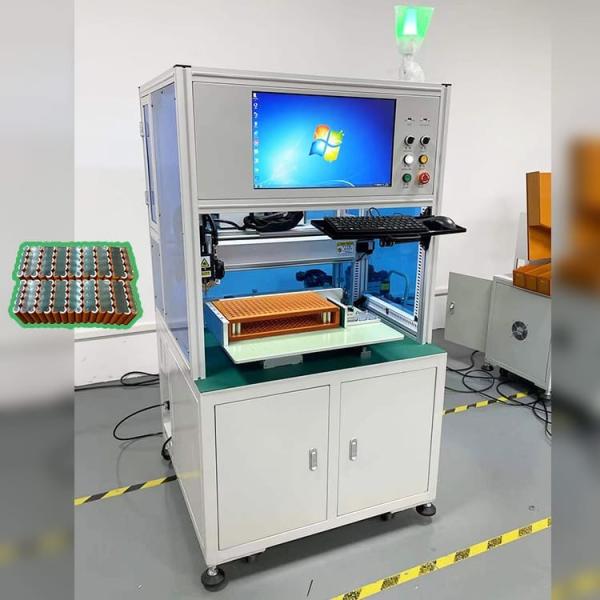

Cylindrical Battery Single Side Spot Welding Machine For E-Vehicles/EV Bike/EV Car Battery Pack Assembly

Single Side Spot Welding Machine

The MD-ASW single side spot welding machine is used for battery pack welding, like 18650, 26650, 21700, 32650... battery pack.

Single Side Spot Welding Machine Features

This machine is used for 18650,26650,32650 cylinder battery pack automatic spot welding.
1.Support break point start, support automatic start and manual start mode conversion.
2.It has a false spot welding and out of spot welding alarm function.
3.Programming is simple, and it supports any point programming and array programming. 999 groups can be saved programming files.
4.Welding needle replacement forecast reminder.
5.Own welding current monitoring system, real-time monitoring of welding current.

Single Side Spot Welding Machine Advantages

1. Welding stroke can be customized;
2. Suitable for various kinds of battery pack;
3. High speed welding;
4. Computer with windows software, more convenient operation, clearer display;
5. Welding head has air-cooling or water-cooling function, which can effectively reduce the influence of spot welding needle temperature on welding quality;
6. Can store up to 999 groups of files, the file is simple to call, does not require complicated line changing process;
7. One-key calibration function for total shift of solder joints, which can be calibrated for spot shift caused by changing the
solder pin or other reasons

8. Electric or pneumatic spot welding machine is optional.

Product Specification

Main Parts List

Single Side Spot Welding Machine Operation

1. Setting the parameters of welding on the touch screen. (The same product only need to be set once)
2. Put the fixture with the battery pack on the quick clamping position.
3. Press the start button, MD-ASW automatically complete all welding actions.
4. MD-ASW sound to prompt operator replacement of new fixture (battery pack)."
