    80Channel Prismatic Cell Battery Capacity Grading Machine Battery Charge Discharge Machine

    Ask Lasest Price
    Brand Name : XWELL
    Model Number : XW-5V10A-80
    Certification : CE
    Price : USD 500-600/pcs
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 100 pcs per month
    Delivery Time : 7-10 days
    • Product Details
    • Company Profile

    80Channel Prismatic Cell Battery Capacity Grading Machine Battery Charge Discharge Machine

    5V 10A 80 Channel Prismatic Cell Tester Capacity Grading Machine Charge Discharge Machine


    The equipment is mainly composed of computer, communication interface and battery detection cabinet. The battery detection cabinet is composed of a fixture and a board for placing the fixture, a constant current and constant voltage source, a storage control circuit, a sampling circuit, a single-chip microcomputer and a control panel.


    Supporting Software Functions


    A) Graphic operation interface is used to display the data of voltage, current, time and capacity of each battery, and display the corresponding working status and abnormal conditions in various colors;

    B) Battery capacity indication of any section (up to 100 sections);

    C) Data points can be recorded according to the change conditions of voltage, current and time to form a complete charging and discharging curve data, and the time interval of curve data points is ≤ 4 Second;

    D) Carry out battery sorting function under various conditions (capacity, time, open circuit voltage, discharge platform, etc.);

    E) Automatically calculate constant current charging ratio, capacity loss, discharge efficiency, average voltage, median voltage and other data;

    F) Set operator authority and operate in different levels;

    Display charge discharge curve and cycle chart;


    Cell Grading Machine Parameters


    No
    Item
    Parameter
    1
    Channels
    80 channels
    2
    Machine size
    500mm×400mm×250mm
    3
    Box color
    Default beige (can be customized)
    4
    Suitable cell type
    coin cell, pouch cell and cylindrical cell
    5
    Clamp type
    upper positive and lower negative, fixture (tip/flat/two pieces) optional
    6
    Clamp spacing
    40mm
    7
    Support battery height
    adjustable within 100mm
    8
    Working power supply
    AC220V±10%, 50HZ
    9
    Working power consumption
    ≤120KW
    10
    Working environment
    temperature 0~40℃, relative humidity ≤80%
    11
    Cooling method
    fan
    12
    Voltage measurement range
    0~5V
    13
    Battery voltage range
    charging 0~4.5V; discharging 4.5~2V
    14
    Constant voltage range
    2.5~4.5V
    15
    Voltage accuracy
    ±(1‰ reading+1‰ full scale)
    16
    Voltage resolution
    1mV
    17
    Voltage stability
    ≤1‰
    18
    Current range
    charging 10mA~10A; discharging 10mA~10A
    19
    Current accuracy
    ±(1‰ reading+1‰ full scale)
    20
    Current resolution
    1mA
    21
    Current stability
    ≤1‰

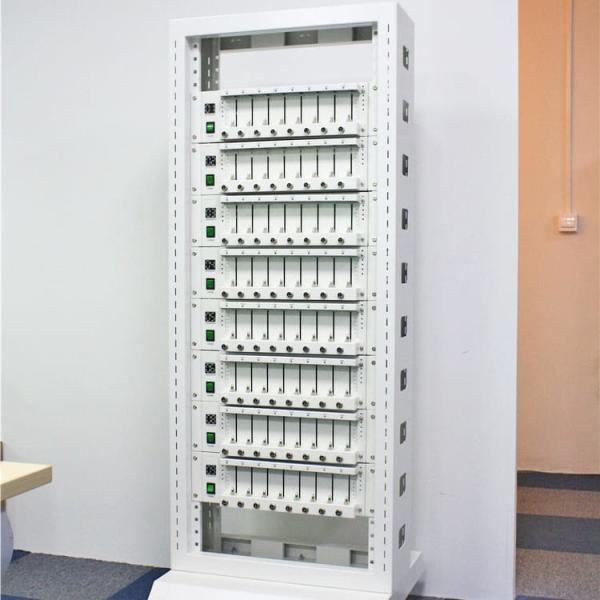

    Cell Grading Machine Detail


    80Channel Prismatic Cell Battery Capacity Grading Machine Battery Charge Discharge Machine

    80Channel Prismatic Cell Battery Capacity Grading Machine Battery Charge Discharge Machine80Channel Prismatic Cell Battery Capacity Grading Machine Battery Charge Discharge Machine

    80Channel Prismatic Cell Battery Capacity Grading Machine Battery Charge Discharge Machine
