Lithium Cylindrical Battery Pack Sorter Selector Automatic Separation Grading Sorting Machine For 18650 26650 32650

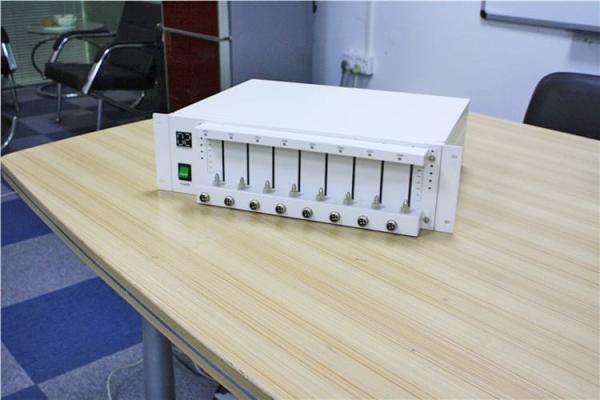

This machine is an eight-channel battery analyzer to analyze small coin cells and cylindrical batteries from 0.1 mA to 20A, up to 5V. Each channel of the analyzer has independent constant-current and constant-voltage source, which can be programmed and controlled by computer software. This system provides most applications in battery testing fields such as electrode materials research, battery performance test, small-scale battery formation, capability grading, battery pack testing, etc. Brand new laptop with MS Window 8, MS Excel 2013 and latest version of controller software are installed and calibrated for immediate use (Up to 20 sets of analyzers can be simultaneously controlled by one PC).

Cell Grading Machine Functions

1) The graphic operation interface is used to display the voltage, current, time, capacity and other data of each battery, and the corresponding working status and abnormal conditions are displayed in various colors;

2) Battery capacity indication of any section (up to 100 segments);

3) The data points can be recorded according to the change conditions of voltage, current and time to form a complete charging and discharging curve data, and the time interval of curve data points is less than 4 seconds

4) The battery sorting function is carried out under various conditions (capacity, time, open circuit voltage, discharge platform, etc.);

5) Calculate the data of charge ratio, voltage average, discharge efficiency, etc;

6) Operator setting and operation authority;

7) It can display charge discharge curve and cycle diagram;

Cell Grading Machine Parameters

Cell Grading Machine Detail
