    70V 5A Charging 10A Discharging Li-Ion Battery Aging Cabinet

    Ask Lasest Price
    Brand Name : XWELL
    Model Number : BCDS70-05-10
    Certification : CE
    Price : USD 2000/pcs
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 100 pcs per month
    Delivery Time : 15-20 days
    • Product Details
    • Company Profile

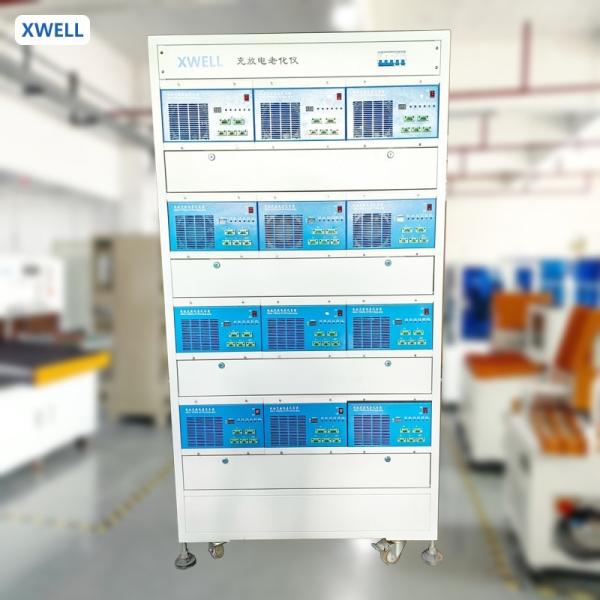

    70V 5A Charging 10A Discharging Li-Ion Battery Aging Cabinet

    70V 5A Charging 10A Discharging Li-Ion Battery Aging Cabinet


    BCDS70-05-10 is mainly used for lithium battery charging and discharging cycle test. The test items include battery charging protection voltage, discharging protection voltage, capacity, etc. The equipment has four test steps: charging, discharging, shelving and cycling. By editing the corresponding step, the battery can be tested according to the set process.

    Function introduction:

    3.1 charging and discharging function: it has the functions of constant current and constant voltage charging and constant current discharge. It can charge and discharge the battery and record the battery capacity;

    3.2 charging and discharging interface: fully meet the requirements of the same charging and discharging port and charging and discharging sub port of the battery pack, i.e. two wires (P + P -), three wires (P + P - C -), electric tool battery with positive plate charging protection and negative plate discharge protection (CH + P + P -);


    Product Specification


    Technical Parameter

    Input Power Supply

    Measuring Range7-70V
    Accuracy±(0.2% of reading +0.2% of range)

    Current


    Charging Range50-5000mA
    Charging Accuracy±(0.2% of reading +0.2% of range)
    Discharge Range50-10000mA
    Discharge Accuracy±(0.2% of reading +0.2% of range)
    ChargeConstant Voltage Cut-off CurrentMinimum 50mA
    CapacityAccuracy±1%
    PowerDischarge Power≤700W
    TimeInspection TimeReal-time Collection<2S
    Timing Range0-999h/step
    Data Recording Interval≥5S
    Middle Machine Version1:1 series
    Number of Passages Per Cabinet12 channels, four rows and three column

    Charge


    Charging ModeConstant Current and Constant Voltage Charging
    Cut-off conditionVoltage, Current, Relative Time, Overcharge Protection
    DischargeDischarge modeConstant current discharge
    Cut-off conditionVoltage, Relative Time and Over-discharge Protection
    LoopCyclic measurement range1-999 times
    Single cycle step number100
    Voltage and Current Detection SamplingFour-wire sampling
    Data BaseUsing SQL database to manage test data
    Upper computer communication modeBased on TCP/IP Protocol/Serial Port
    Data Output ModeEXCEL/TXT/Chart
    Communication InterfaceMesh port
    Chassis dimensions300x450x170mm
    Cabinet size900x600x1900mm
    Spatial Dimension of Discharge Battery900x600x130mm
